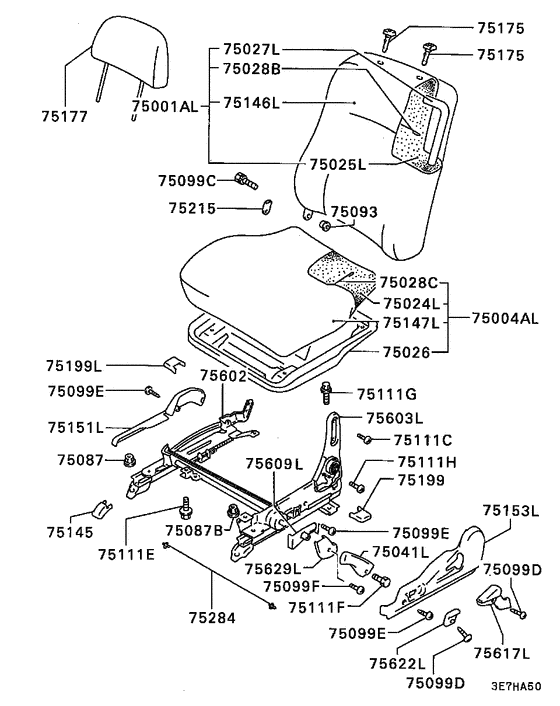

Front seat (LH) Diagram Mitsubishi MIRAGE
- Year
- 1992 - 1996
- Sales region
- Japan
- Note
- DRIVER'S SCHOOL(DIESEL-TURBO),5FM/T
- transmission
- 5FM/T
- grade
- DRIVER'S SCHOOL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75001AL
|
75001AL
MR707719 BACK ASSY, FR SEAT, LH |
MR707719 |
US $840.11 |
||
|
75001AL
|
75001AL
MR718449 BACK ASSY, FR SEAT, LH |
MR718449 |
US $840.11 |
||
|
75001AL
|
75001AL
MR718450 BACK ASSY, FR SEAT, LH |
MR718450 |
US $840.11 |
||
|
75001AL
|
75001AL
MR724441 BACK ASSY, FR SEAT, LH |
MR724441 |
US $840.11 |
||
|
75001AL
|
75001AL
MR724442 BACK ASSY, FR SEAT, LH |
MR724442 |
US $840.11 |
||
|
75001AL
|
75001AL
MR745450 BACK ASSY, FR SEAT, LH |
MR745450 |
US $840.11 |
||
|
75004AL
|
75004AL
MB969361 CUSHION ASSY, FR SEAT, LH |
MB969361 |
US $840.11 |
||
|
75004AL
|
75004AL
MR707716 CUSHION ASSY, FR SEAT, LH |
MR707716 |
US $840.11 |
||
|
75004AL
|
75004AL
MR718448 CUSHION ASSY, FR SEAT, LH |
MR718448 |
US $840.11 |
||
|
75004AL
|
75004AL
MR724365 CUSHION ASSY, FR SEAT, LH |
MR724365 |
US $840.11 |
||
|
75004AL
|
75004AL
MR724368 CUSHION ASSY, FR SEAT, LH |
MR724368 |
US $840.11 |
||
|
75004AL
|
75004AL
MR745440 CUSHION ASSY, FR SEAT, LH |
MR745440 |
US $840.11 |
||
|
75024L
|
75024L
MB916373 PAD, FR SEAT CUSHION, LH |
MB916373 |
US $190.92 |
||
|
75025L
|
75025L
MB940547 PAD, FR SEAT BACK, LH |
MB940547 |
US $190.92 |
||
|
75026
|
75026
MB915750 FRAME, FR SEAT CUSHION |
MB915750 |
US $62.24 |
||
|
75027L
|
75027L
MB941306 FRAME, FR SEAT BACK, LH |
MB941306 |
US $179.08 |
||
|
75028B
|
75028B
MB130812 WIRE, FR SEAT TRIMMING2.0x320 |
MB130812 |
US $2.07 |
||
|
75028B
|
75028B
MB592073 WIRE, FR SEAT TRIMMING1.6x420 |
MB592073 |
US $2.07 |
||
|
75028C
|
75028C
MB130811 WIRE, RR SEAT TRIMMING2.0x300 |
MB130811 |
US $1.48 |
||
|
75028C
|
75028C
MB144642 WIRE, FR SEAT TRIMMING2.0x400 |
MB144642 |
US $2.37 |
||
|
75041L
|
75041L
MB792731 LEVER, FR SEAT LIFTER, LH |
MB792731 |
US $34.88 |
||
|
75087
|
75087
MU431010 NUT, FR SEATCap,washer assembled |
MU431010 |
US $2.60 |
||
|
75087B
|
75087B
MS440504 NUTWasher assembled,10 |
MS440504 |
from US $0.66 |
||
|
75093
|
75093
MB158706 BUSHING, FR SEAT12x6 |
MB158706 |
from US $1.42 |
||
|
75099C
|
75099C
MB902325 SCREW, FR SEATWasher assembled,6x12 |
MB902325 |
US $2.52 |
||
|
75099D
|
75099D
MB410568 SCREW, FR SEAT4x6 |
MB410568 |
US $3.56 |
||
|
75099E
|
75099E
MF455497 SCREW, RR PILLAR GARNISHTapping,4x12 |
MF455497 |
from US $0.20 |
||
|
75099F
|
75099F
MF350743 SCREW, ENG GOVERNORWasher assembled,4x8 |
MF350743 |
US $2.60 |
||
|
75111C
|
75111C
MB144649 BOLT, FR SEAT10x21 |
MB144649 |
US $3.69 |
||
|
75111E
|
75111E
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
||
|
75111F
|
75111F
MF247223 BOLT, FUEL FILLER LID PANELWasher assembled,6x14 |
MF247223 |
US $1.63 |
||
|
75111G
|
75111G
MS240189 BOLT, BRAKE PEDALWasher assembled,10x25 |
MS240189 |
US $3.28 |
||
|
75111H
|
75111H
MB902324 BOLT, FR SEATM10x18 |
MB902324 |
US $3.56 |
||
|
75145
|
75145
MB778517
COVER, FR SEAT ANCHOR
|
MB778517 |
— | ||
|
75145
|
75145
MR759757 COVER, FR SEAT ANCHOR |
MR759757 |
US $3.69 |
||
|
75146L
|
75146L
MR707722 COVER, FR SEAT BACK, LH |
MR707722 |
US $425.15 |
||
|
75146L
|
75146L
MR718452 COVER, FR SEAT BACK, LH |
MR718452 |
US $425.15 |
||
|
75146L
|
75146L
MR718453 COVER, FR SEAT BACK, LH |
MR718453 |
US $425.15 |
||
|
75146L
|
75146L
MR724508 COVER, FR SEAT BACK, LH |
MR724508 |
US $425.15 |
||
|
75146L
|
75146L
MR724509 COVER, FR SEAT BACK, LH |
MR724509 |
US $425.15 |
||
|
75146L
|
75146L
MR745471 COVER, FR SEAT BACK, LH |
MR745471 |
US $425.15 |
||
|
75147L
|
75147L
MB969510 COVER, FR SEAT CUSHION, LH |
MB969510 |
US $425.15 |
||
|
75147L
|
75147L
MR707720 COVER, FR SEAT CUSHION, LH |
MR707720 |
US $425.15 |
||
|
75147L
|
75147L
MR718451 COVER, FR SEAT CUSHION, LH |
MR718451 |
US $425.15 |
||
|
75147L
|
75147L
MR724448 COVER, FR SEAT CUSHION, LH |
MR724448 |
US $425.15 |
||
|
75147L
|
75147L
MR724451 COVER, FR SEAT CUSHION, LH |
MR724451 |
US $425.15 |
||
|
75147L
|
75147L
MR745463 COVER, FR SEAT CUSHION, LH |
MR745463 |
US $425.15 |
||
|
75153L
|
75153L
MB975081 COVER, FR SEAT SIDE SHIELD, LH |
MB975081 |
US $22.94 |
||
|
75153L
|
75153L
MR759795 COVER, FR SEAT SIDE SHIELD, LH |
MR759795 |
US $22.94 |
||
|
75175
|
75175
MB965579 GUIDE, FR SEAT HEADRESTW/lock |
MB965579 |
US $9.32 |
||
|
75175
|
75175
MB965581 GUIDE, FR SEAT HEADRESTW/o lock |
MB965581 |
US $9.32 |
||
|
75177
|
75177
MB969604 HEADREST, FR SEAT |
MB969604 |
US $211.64 |
||
|
75177
|
75177
MB969610 HEADREST, FR SEAT |
MB969610 |
US $211.64 |
||
|
75177
|
75177
MB974777 HEADREST, FR SEAT |
MB974777 |
US $259 |
||
|
75177
|
75177
MR724513 HEADREST, FR SEAT |
MR724513 |
US $211.64 |
||
|
75177
|
75177
MR724518 HEADREST, FR SEAT |
MR724518 |
US $211.64 |
||
|
75177
|
75177
MR743700 HEADREST, FR SEAT |
MR743700 |
US $281.20 |
||
|
75199
|
75199
MB873969 COVER, FR SEAT ANCHOR |
MB873969 |
US $4.59 |
||
|
75199
|
75199
MB874500
COVER, FR SEAT ANCHOR, RR RH
|
MB874500 |
— | ||
|
75199
|
75199
MR748265 COVER, FR SEAT ANCHOR |
MR748265 |
US $4.59 |
||
|
75215
|
75215
MB874501
PROTECTOR, FR SEAT FREE HINGE
|
MB874501 |
— | ||
|
75284
|
75284
MB874502 WIRE, FR SEAT |
MB874502 |
US $4 |
||
|
75602
|
75602
MB874480 ADJUSTER, FR SEAT HEIGHT |
MB874480 |
US $502.32 |
||
|
75602
|
75602
MB902439 ADJUSTER, FR SEAT HEIGHT |
MB902439 |
US $502.32 |
||
|
75602
|
75602
MR177298 ADJUSTER, FR SEAT HEIGHT |
MR177298 |
US $556.19 |
||
|
75603L
|
75603L
MB592793 ADJUSTER, FR SEAT RECLINING, LH |
MB592793 |
US $179.08 |
||
|
75609L
|
75609L
MB975088 COVER, FR SEAT SLIDE RAIL BRACKET, LH |
MB975088 |
US $22.94 |
||
|
75609L
|
75609L
MR759796 COVER, FR SEAT SLIDE RAIL BRACKET, LH |
MR759796 |
US $22.94 |
||
|
75617L
|
75617L
MB797367 KNOB, FR SEAT RECLINING ADJUSTER, LH |
MB797367 |
US $7.40 |
||
|
75617L
|
75617L
MR734688
KNOB, FR SEAT RECLINING ADJUSTER, LH
|
MR734688 |
— | ||
|
75622L
|
75622L
MB797363 KNOB, FR SEAT SLIDE ADJUSTER, LH |
MB797363 |
US $13.47 |
||
|
75622L
|
75622L
MR734686 KNOB, FR SEAT SLIDE ADJUSTER, LH |
MR734686 |
US $13.47 |
||
|
75629L
|
75629L
MB792725
LEVER, FR SEAT HEIGHT ADJUSTER, LH
|
MB792725 |
— |
