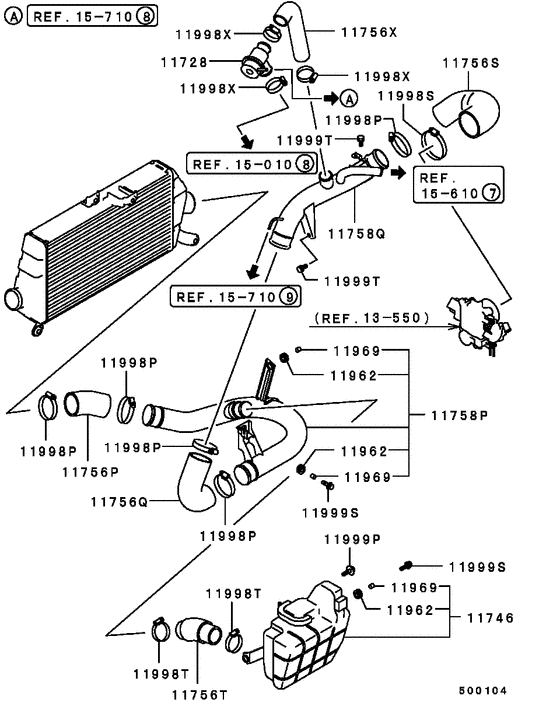

Turbocharger & supercharger (ALL (OUTLET AIR LINE)) Diagram Mitsubishi MIRAGE
- Year
- 1992 - 1993
- Sales region
- Japan
- Note
- RS EVOLUTION(MPI/4WD),5FM/T
- drive
- 4WD/4WD
- transmission
- 5FM/T
- grade
- RS EVOLUTION
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11728
|
11728
MD175728 VALVE, AIR BY-PASS |
MD175728 |
US $165.53 |
||
|
11746
|
11746
MD301923
RESONATOR, INTER COOLER
|
MD301923 |
— | ||
|
11746
|
11746
MD302861 RESONATOR, INTER COOLER |
MD302861 |
US $87.32 |
||
|
11756P
|
11756P
MD187845 HOSE, INTER COOLER AIR |
MD187845 |
US $56.24 |
||
|
11756Q
|
11756Q
MD197463 HOSE, INTER COOLER AIR |
MD197463 |
US $64.98 |
||
|
11756S
|
11756S
MD197465
HOSE, INTER COOLER AIR
|
MD197465 |
— | ||
|
11756T
|
11756T
MD196780 HOSE, INTER COOLER OUTLET AIR |
MD196780 |
US $47.36 |
||
|
11756T
|
11756T
MD302862
HOSE, INTER COOLER OUTLET AIR
|
MD302862 |
— | ||
|
11756X
|
11756X
MD197462 HOSE, INTER COOLER AIR |
MD197462 |
US $71.78 |
||
|
11756X
|
11756X
MD301582
HOSE, INTER COOLER OUTLET AIR
|
MD301582 |
— | ||
|
11758P
|
11758P
MD301922
PIPE, INTER COOLER AIR
|
MD301922 |
— | ||
|
11758Q
|
11758Q
MD197464 PIPE, INTER COOLER AIR |
MD197464 |
US $93.24 |
||
|
11962
|
11962
MT206580 INSULATOR, AIR CLEANER SUPPORT |
MT206580 |
US $2.87 |
||
|
11969
|
11969
MT206583 COLLAR, AIR CLEANER |
MT206583 |
US $2.74 |
||
|
11998P
|
11998P
MD145976 CLAMP, ENG AIR INTAKE LINE70 |
MD145976 |
US $9.58 |
||
|
11998S
|
11998S
MD159931 CLAMP, ENG AIR INTAKE LINE83 |
MD159931 |
from US $10.82 |
||
|
11998T
|
11998T
MD166085 CLAMP, ENG AIR INTAKE LINE55 |
MD166085 |
US $10.95 |
||
|
11998X
|
11998X
MD173306 CLAMP, ENG AIR INTAKE LINE45 |
MD173306 |
US $10.67 |
||
|
11999P
|
11999P
MD131051 BOLT, ENG AIR INTAKE LINEWasher assembled,8x30 |
MD131051 |
US $2.87 |
||
|
11999S
|
11999S
MS240146 BOLT, CRUISE CONTROL EQUIPWasher assembled,8x25 |
MS240146 |
from US $0.90 |
||
|
11999T
|
11999T
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
13 550
|
Injector & throttle body
13 550
|
||||
|
13 550
|
Injector & throttle body
13 550
|
||||
|
15 010
|
Air cleaner
15 010
|
||||
|
15 710
|
Emission control
15 710
|
||||
|
15 710
|
Emission control
15 710
|
||||
