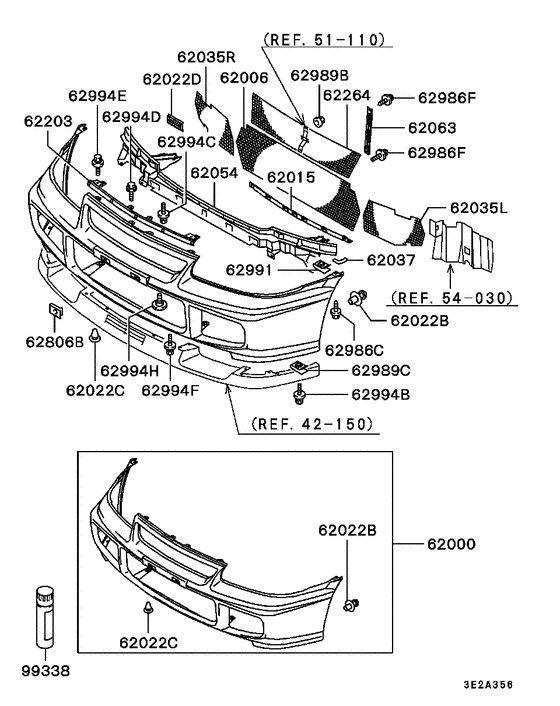

Front bumper & support (EVOLUTION 3) Diagram Mitsubishi MIRAGE
- Year
- 1993 - 1995
- Sales region
- Japan
- Note
- RS EVOLUTION-2/3,5FM/T
- drive
- 4WD
- transmission
- 5FM/T
- grade
- RS EVOLUTION-2/
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62000
|
62000
MB945985
FACE KIT, FR BUMPER
|
MB945985 |
— | ||
| replacement | |||||
|
62000
|
62000
MR555119
FACE KIT, FR BUMPER
|
MR555119 |
— | ||
|
62000
|
62000
MR208675
FACE KIT, FR BUMPER
|
MR208675 |
— | ||
|
62006
|
62006
MB909090 NET, FR BUMPER, CTR |
MB909090 |
US $281.20 |
||
|
62006
|
62006
MR236035 NET, FR BUMPER, CTR |
MR236035 |
US $294.11 |
||
|
62015
|
62015
MB909095 BRACKET, FR BUMPER, CTR |
MB909095 |
US $46.62 |
||
|
62015
|
62015
MR236037
BRACKET, FR BUMPER, CTR
|
MR236037 |
— | ||
|
62022B
|
62022B
MB253964 CLIP, FR BUMPER |
MB253964 |
from US $1.52 |
||
|
62022C
|
62022C
MB271999 CLIP, FR BUMPER12.8 |
MB271999 |
from US $1.58 |
||
|
62022D
|
62022D
MB325298 CLIP, FR BUMPER0.4 |
MB325298 |
from US $1.44 |
||
|
62035L
|
62035L
MB909091
NET, FR BUMPER, LH
|
MB909091 |
— | ||
|
62035L
|
62035L
MR236033 NET, FR BUMPER, LH |
MR236033 |
US $135.42 |
||
|
62035R
|
62035R
MB909092
NET, FR BUMPER, RH
|
MB909092 |
— | ||
|
62035R
|
62035R
MR236034 NET, FR BUMPER, RH |
MR236034 |
US $135.42 |
||
|
62037
|
62037
MB575451 PAD, FR BUMPER FACE47 |
MB575451 |
US $4.10 |
||
|
62054
|
62054
MB909089
REINFORCEMENT, FR BUMPER
|
MB909089 |
— | ||
|
62054
|
62054
MR236036 REINFORCEMENT, FR BUMPER |
MR236036 |
US $229.82 |
||
|
62063
|
62063
MB909088 STAY, FR BUMPER |
MB909088 |
US $13.02 |
||
|
62063
|
62063
MR236038 STAY, FR BUMPER |
MR236038 |
US $12.86 |
||
|
62203
|
62203
MB909094
BRACKET, RADIATOR GRILLE
|
MB909094 |
— | ||
|
62264
|
62264
MB909093 NET, RADIATOR GRILLE |
MB909093 |
US $219.04 |
||
|
62806B
|
62806B
MB325163 BRACKET, FR LICENSE PLATE |
MB325163 |
from US $4.21 |
||
|
62986C
|
62986C
MS452348 SCREW, STEERING COLUMN |
MS452348 |
from US $2.34 |
||
|
62986F
|
62986F
MS452028 SCREW, FR BUMPERWasher assembled,5x16 |
MS452028 |
US $4.24 |
||
|
62989B
|
62989B
MS440521 NUT, FUEL FILLER LID PANELWasher assembled,5 |
MS440521 |
US $2.60 |
||
|
62989C
|
62989C
MU440009 NUT, RR BUMPERSpring,6 |
MU440009 |
from US $1.68 |
||
|
62991
|
62991
MB481588 GROMMET, FR BUMPERScrew .,6 |
MB481588 |
from US $2.07 |
||
|
62994B
|
62994B
MS240601 BOLT, AIR CLEANERWasher assembled,6x16 |
MS240601 |
from US $1.38 |
||
|
62994C
|
62994C
MB131256 BOLT, BODY LOOSE PANELWasher assembled,8x25 |
MB131256 |
US $4.38 |
||
|
62994D
|
62994D
MU140009 BOLT, FR BUMPERFlange,6x20 |
MU140009 |
from US $1.23 |
||
|
62994E
|
62994E
MS240581 BOLT, BRAKE FLUID LINEWasher assembled,6x16 |
MS240581 |
US $2.60 |
||
|
62994F
|
62994F
MS240603 BOLT, RR BUMPERWasher assembled,6x25 |
MS240603 |
US $2.74 |
||
|
62994H
|
62994H
MU101019 BOLT, FR BUMPERShoulder,6x18 |
MU101019 |
US $4.79 |
||
|
99338
|
99338
MZ101901
TOUCH-UP PAINT
|
MZ101901 |
— | ||
|
