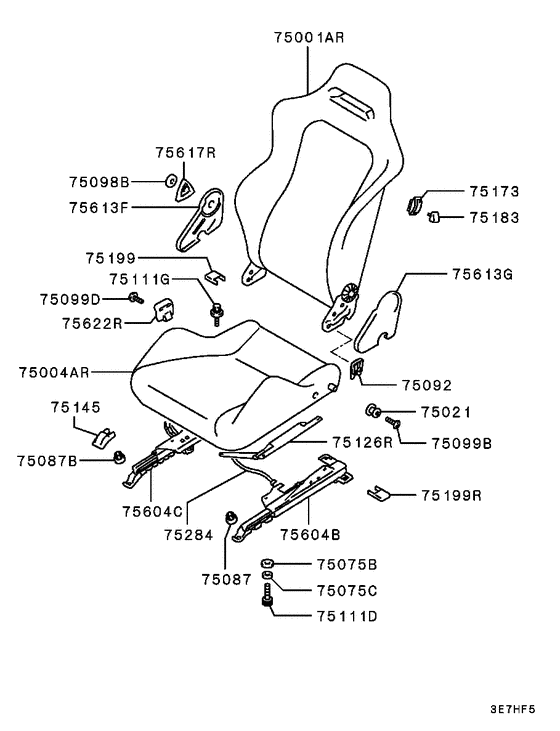

Front seat (RH..RECARO) Diagram Mitsubishi MIRAGE
- Year
- 1993 - 1995
- Sales region
- Japan
- Note
- RS EVOLUTION-2/3,5FM/T
- drive
- 4WD
- transmission
- 5FM/T
- grade
- RS EVOLUTION-2/
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75001AR
|
75001AR
MB969445 BACK ASSY, FR SEAT, RH |
MB969445 |
US $840.11 |
||
|
75001AR
|
75001AR
MR745447 BACK ASSY, FR SEAT, RH |
MR745447 |
US $840.11 |
||
|
75004AR
|
75004AR
MB969390 CUSHION ASSY, FR SEAT, RH |
MB969390 |
US $840.11 |
||
|
75004AR
|
75004AR
MR745435 CUSHION ASSY, FR SEAT, RH |
MR745435 |
US $840.11 |
||
|
75075B
|
75075B
MF450193 WASHER, FR FENDERPlain,6 |
MF450193 |
from US $1.40 |
||
|
75075C
|
75075C
MF450464 WASHER, ENG AIR INTAKE LINESpring,6 |
MF450464 |
US $1.48 |
||
|
75087
|
75087
MU430016 NUT, FR SEAT BELT |
MU430016 |
US $2.05 |
||
|
75087
|
75087
MU431010 NUT, FR SEATCap,washer assembled |
MU431010 |
US $2.60 |
||
|
75087B
|
75087B
MS440504 NUTWasher assembled,10 |
MS440504 |
from US $0.66 |
||
|
75099B
|
75099B
MB850917
SCREW, FR SEAT
|
MB850917 |
— | ||
|
75099D
|
75099D
MB410568 SCREW, FR SEAT4x6 |
MB410568 |
US $3.56 |
||
|
75111D
|
75111D
MS100059 BOLT, FR SEAT |
MS100059 |
US $4.59 |
||
|
75111G
|
75111G
MS240189 BOLT, BRAKE PEDALWasher assembled,10x25 |
MS240189 |
US $3.28 |
||
|
75145
|
75145
MB726461
COVER, FR SEAT ANCHOR
|
MB726461 |
— | ||
|
75199
|
75199
MB960263 COVER, FR SEAT ANCHOR |
MB960263 |
US $3.83 |
||
|
75199R
|
75199R
MB874500
COVER, FR SEAT ANCHOR, RR RH
|
MB874500 |
— | ||
|
75284
|
75284
MB874502 WIRE, FR SEAT |
MB874502 |
US $4 |
||
|
75604B
|
75604B
MB874484
ADJUSTER, FR SEAT SLIDE
|
MB874484 |
— | ||
|
75604C
|
75604C
MB874482 ADJUSTER, FR SEAT SLIDE |
MB874482 |
US $86.58 |
||
|
75617R
|
75617R
MB725072 KNOB, FR SEAT RECLINING ADJUSTER, RH |
MB725072 |
US $9.58 |
||
|
75622R
|
75622R
MB728419 KNOB, FR SEAT SLIDE ADJUSTER, RH |
MB728419 |
US $14.36 |
