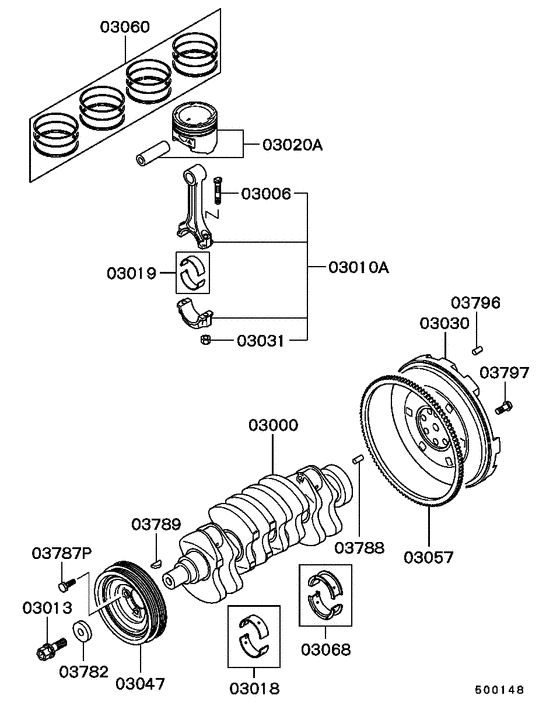

Piston & crankshaft (ALL) Diagram Mitsubishi MIRAGE
- Year
- 1993 - 1995
- Sales region
- Japan
- Note
- RS EVOLUTION-2/3,5FM/T
- drive
- 4WD
- transmission
- 5FM/T
- grade
- RS EVOLUTION-2/
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
03000
|
03000
MD187923 CRANKSHAFT |
MD187923 |
US $1,699.20 |
||
|
03006
|
03006
MD193029 BOLT, CONNROD8x55.1 |
MD193029 |
from US $2.98 |
||
|
03010A
|
03010A
MD193027 CONNECTING ROD ASSY |
MD193027 |
from US $130.24 |
||
|
03013
|
03013
MD074255
CENTER BOLT, CRANKSHAFT PULLEY
|
MD074255 |
— | ||
| replacement | |||||
|
03013
|
03013
1101A022 CENTER BOLT, CRANKSHAFT PULLEY14x40 |
1101A022 |
from US $9.30 |
||
|
03018
|
03018
MD195916 BEARING, CRANKSHAFTPlain,std 1 |
MD195916 |
US $34.78 |
||
|
03018
|
03018
MD195917
BEARING, CRANKSHAFT
|
MD195917 |
— | ||
| replacement | |||||
|
03018
|
03018
1052A449 BEARING, CRANKSHAFTPlain,std 2 |
1052A449 |
US $36.25 |
||
|
03018
|
03018
MD195918 BEARING, CRANKSHAFTPlain,std 3 |
MD195918 |
US $34.78 |
||
|
03018
|
03018
MD195919 BEARING, CRANKSHAFTPlain,std 4 |
MD195919 |
US $34.78 |
||
|
03018
|
03018
MD195920 BEARING, CRANKSHAFTPlain,std 5 |
MD195920 |
US $34.78 |
||
|
03018
|
03018
MD316497 BEARING, CRANKSHAFTPlain,std 0 |
MD316497 |
US $32.56 |
||
|
03018
|
03018
MD326349
BEARING, CRANKSHAFT (STD 0)
|
MD326349 |
— | ||
| replacement | |||||
|
03018
|
03018
1052B118 BEARING, CRANKSHAFT (STD 0)RED |
1052B118 |
US $33.52 |
||
|
03018
|
03018
MD326350
BEARING, CRANKSHAFT (STD 1)
|
MD326350 |
— | ||
| replacement | |||||
|
03018
|
03018
1052B119 BEARING, CRANKSHAFT (STD 1)BLACK |
1052B119 |
from US $27.12 |
||
|
03018
|
03018
MD326351
BEARING, CRANKSHAFT (STD 2)
|
MD326351 |
— | ||
| replacement | |||||
|
03018
|
03018
1052B120 BEARING, CRANKSHAFT (STD 2)PURPLE |
1052B120 |
from US $24.88 |
||
|
03018
|
03018
MD326352
BEARING, CRANKSHAFT (STD 3)
|
MD326352 |
— | ||
| replacement | |||||
|
03018
|
03018
1052B121 BEARING, CRANKSHAFT (STD 3)GREEN |
1052B121 |
from US $29.43 |
||
|
03018
|
03018
MD326353
BEARING, CRANKSHAFT (STD 4)
|
MD326353 |
— | ||
| replacement | |||||
|
03018
|
03018
1052B122 BEARING, CRANKSHAFT (STD 4)BLUE |
1052B122 |
US $36.26 |
||
|
03019
|
03019
MD195939
BEARING, CONNROD (Black)
|
MD195939 |
— | ||
| replacement | |||||
|
03019
|
03019
1115A412 BEARING, CONNROD (STD 1) BlackPlain,std 1 |
1115A412 |
from US $15.37 |
||
|
03019
|
03019
MD195940
BEARING, CONNROD (Purple)
|
MD195940 |
— | ||
| replacement | |||||
|
03019
|
03019
1115A413 BEARING, CONNROD (STD 2) PurplePlain,std 2 |
1115A413 |
from US $16.48 |
||
|
03019
|
03019
MD195941
BEARING, CONNROD (Green)
|
MD195941 |
— | ||
| replacement | |||||
|
03019
|
03019
1115A414 BEARING, CONNROD (STD 3) GreenPlain,std 3 |
1115A414 |
US $22.94 |
||
|
03019
|
03019
MD316499 BEARING, CONNRODPlain,std 0 |
MD316499 |
US $31.08 |
||
|
03019
|
03019
MD326359
BEARING, CONNROD (STD 0)
|
MD326359 |
— | ||
| replacement | |||||
|
03019
|
03019
1115A429 BEARING, CONNROD (STD 0)RED |
1115A429 |
from US $19.81 |
||
|
03019
|
03019
MD326360
BEARING, CONNROD (STD 1)
|
MD326360 |
— | ||
| replacement | |||||
|
03019
|
03019
1115A430 BEARING, CONNRODBLACK |
1115A430 |
from US $20.30 |
||
|
03019
|
03019
MD326361
BEARING, CONNROD (STD 2)
|
MD326361 |
— | ||
| replacement | |||||
|
03019
|
03019
1115A431 BEARING, CONNROD (STD 2)PURPLE |
1115A431 |
from US $19.27 |
||
|
03020A
|
03020A
MD313285 PISTON & PIN ASSYStd a |
MD313285 |
US $113.22 |
||
|
03020A
|
03020A
MD313286 PISTON & PIN ASSYStd b |
MD313286 |
US $123.58 |
||
|
03020A
|
03020A
MD313287 PISTON & PIN ASSYStd c |
MD313287 |
US $113.22 |
||
|
03020A
|
03020A
MD313291 PISTON & PIN ASSYO/size 0.50 |
MD313291 |
US $123.58 |
||
|
03020A
|
03020A
MD313292 PISTON & PIN ASSYO/size 1.00 |
MD313292 |
US $123.58 |
||
|
03020A
|
03020A
MD326339 PISTON & PIN ASSYStd a |
MD326339 |
US $105.82 |
||
|
03020A
|
03020A
MD326340 PISTON & PIN ASSYStd b |
MD326340 |
US $117.66 |
||
|
03020A
|
03020A
MD326341 PISTON & PIN ASSYStd c |
MD326341 |
US $105.82 |
||
|
03020A
|
03020A
MD326345 PISTON & PIN ASSYO/size 0.50 |
MD326345 |
US $117.66 |
||
|
03020A
|
03020A
MD326346 PISTON & PIN ASSYO/size 1.00 |
MD326346 |
US $117.66 |
||
|
03030
|
03030
MD194278
FLYWHEEL
|
MD194278 |
— | ||
| replacement | |||||
|
03030
|
03030
MD194277 FLYWHEEL ASSY |
MD194277 |
US $381.26 |
||
|
03031
|
03031
MD144215 NUT, CONNROD8 |
MD144215 |
from US $2.63 |
||
|
03047
|
03047
MD300516 PULLEY, CRANKSHAFTRibbed |
MD300516 |
US $244.20 |
||
|
03057
|
03057
MD030629 RING GEAR, FLYWHEELN=106 |
MD030629 |
US $207.94 |
||
|
03060
|
03060
MD313405 RING SET, PISTONStd |
MD313405 |
from US $157.35 |
||
|
03060
|
03060
MD313406 RING SET, PISTONO/size 0.50 |
MD313406 |
US $199.73 |
||
|
03060
|
03060
MD313407 RING SET, PISTONO/size 1.00 |
MD313407 |
from US $159.08 |
||
|
03068
|
03068
MD195921 BEARING, CRANKSHAFT, CTR |
MD195921 |
US $46.62 |
||
|
03068
|
03068
MD195922 BEARING, CRANKSHAFT, CTRPlain,std 2 |
MD195922 |
US $46.62 |
||
|
03068
|
03068
MD195923 BEARING, CRANKSHAFT, CTRPlain,std 3 |
MD195923 |
US $46.62 |
||
|
03068
|
03068
MD195924 BEARING, CRANKSHAFT, CTRPlain,std 4 |
MD195924 |
US $46.62 |
||
|
03068
|
03068
MD195925 BEARING, CRANKSHAFT, CTRPlain,std 5 |
MD195925 |
US $46.62 |
||
|
03068
|
03068
MD316498 BEARING, CRANKSHAFT, CTRPlain,std 0 |
MD316498 |
US $44.40 |
||
|
03068
|
03068
MD326354 BEARING, CRANKSHAFT, CTRPlain,std 0 |
MD326354 |
US $44.40 |
||
|
03068
|
03068
MD326355 BEARING, CRANKSHAFT, CTRPlain,std 1 |
MD326355 |
US $44.40 |
||
|
03068
|
03068
MD326356
BEARING, CRANKSHAFT, CTR
|
MD326356 |
— | ||
| replacement | |||||
|
03068
|
03068
MD343188
BEARING, CRANKSHAFT, CTR
|
MD343188 |
— | ||
|
03068
|
03068
MD326357 BEARING, CRANKSHAFT, CTRPlain,std 3 |
MD326357 |
US $44.40 |
||
|
03068
|
03068
MD326358 BEARING, CRANKSHAFT, CTRPlain,std 4 |
MD326358 |
US $44.40 |
||
|
03782
|
03782
MD012455
WASHER, CRANKSHAFT PULLEY
|
MD012455 |
— | ||
| replacement | |||||
|
03782
|
03782
MD377400 WASHER, CRANKSHAFT PULLEY14.5 |
MD377400 |
from US $4.88 |
||
|
03787P
|
03787P
MS240211 BOLT, CRANKSHAFT PULLEYWasher assembled,8x25 |
MS240211 |
from US $1.33 |
||
|
03788
|
03788
MD005994 PIN, CRANKSHAFTDowel,9x14 |
MD005994 |
US $4.65 |
||
|
03789
|
03789
MD008959 KEY, CRANKSHAFT |
MD008959 |
from US $2.03 |
||
|
03796
|
03796
MF472404 PIN, CYLINDER BLOCKDowel,8x18 |
MF472404 |
from US $2.81 |
||
|
03797
|
03797
MD302074 BOLT, FLYWHEELFlange,12x21.2 |
MD302074 |
from US $3.39 |
||
