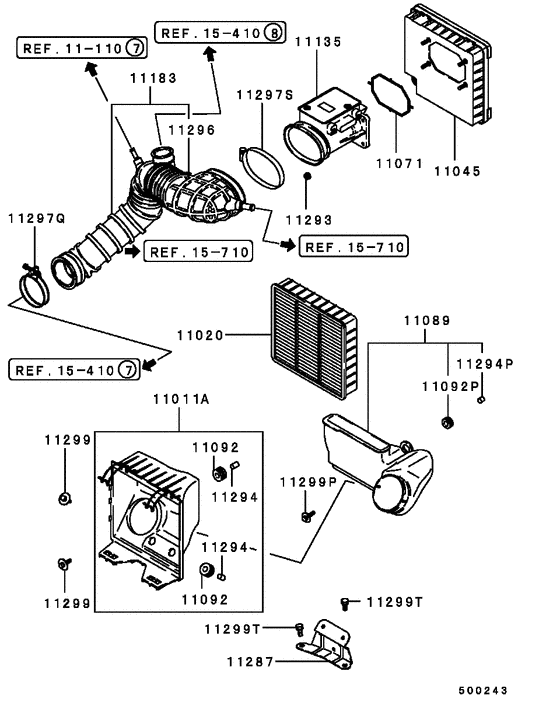

Air cleaner (ALL) Diagram Mitsubishi MIRAGE
- Year
- 1993 - 1995
- Sales region
- Japan
- Note
- GSR EVOLUTION-2/3,5FM/T
- drive
- 4WD
- transmission
- 5FM/T
- grade
- GSR EVOLUTION-2
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011A
|
11011A
MR258227
BODY ASSY, AIR CLEANER
|
MR258227 |
— | ||
|
11020
|
11020
MD620737 ELEMENT, AIR CLEANERNon woven |
MD620737 |
US $71.04 |
||
|
11045
|
11045
MR258226
COVER, AIR CLEANER
|
MR258226 |
— | ||
|
11071
|
11071
MD151672 GASKET, AIR CLEANER AIR FLOW SENSOR |
MD151672 |
from US $7.16 |
||
|
11089
|
11089
MD300442 DUCT, AIR CLEANER INTAKE |
MD300442 |
US $122.10 |
||
|
11092
|
11092
MD620528 INSULATOR, AIR CLEANER SUPPORT |
MD620528 |
US $6.98 |
||
|
11092P
|
11092P
MT206580 INSULATOR, AIR CLEANER SUPPORT |
MT206580 |
US $2.87 |
||
|
11135
|
11135
MD183609 SENSOR, AIR CLEANER AIR FLOW |
MD183609 |
US $1,045.10 |
||
|
11183
|
11183
MD305063 DUCT, AIR CLEANER TO CARB |
MD305063 |
US $467.38 |
||
|
11287
|
11287
MD168385
BRACKET, AIR CLEANER
|
MD168385 |
— | ||
|
11293
|
11293
MF434103 NUT, ENG OIL PANFlange,6 |
MF434103 |
from US $0.10 |
||
|
11294
|
11294
MD620469 COLLAR, AIR CLEANER |
MD620469 |
US $4.14 |
||
|
11294P
|
11294P
MT206583 COLLAR, AIR CLEANER |
MT206583 |
US $2.74 |
||
|
11296
|
11296
MD122529 CLAMP, AIR CLEANER INR83 |
MD122529 |
from US $5.46 |
||
|
11297Q
|
11297Q
MD122526 CLAMP, AIR CLEANER71 |
MD122526 |
US $7.25 |
||
|
11297Q
|
11297Q
MD122527 CLAMP, AIR CLEANER73 |
MD122527 |
US $3.85 |
||
|
11297S
|
11297S
MD151059 CLAMP, AIR CLEANER |
MD151059 |
US $10.53 |
||
|
11299
|
11299
MD171250
BOLT, AIR CLEANER
|
MD171250 |
— | ||
|
11299P
|
11299P
MD300358 BOLT, AIR CLEANERWasher assembled,6x30 |
MD300358 |
from US $1.79 |
||
|
11299T
|
11299T
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
