Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
03038	03038 MD312641 SPROCKET, CRANKSHAFT CAMSHAFT DRIVE	MD312641	US $53.28
03038	03038 MD356723 SPROCKET, CRANKSHAFT CAMSHAFT DRIVE	MD356723	from US $32.68
03064	03064 MD300345 BLADE, CRANKSHAFT ANGLE SENSING	MD300345	from US $11.90
03064	03064 MD362576 BLADE, CRANKSHAFT ANGLE SENSING	MD362576	—
	replacement
03064	03064 MR994381 BLADE, CRANKSHAFT ANGLE SENSING	MR994381	from US $10.65
03064	03064 MR994381 BLADE, CRANKSHAFT ANGLE SENSING	MR994381	from US $10.65
03100	03100 MD325779 CAMSHAFT	MD325779	US $419.33
03100	03100 MD344126 CAMSHAFT	MD344126	—
03100	03100 MD350498 CAMSHAFT	MD350498	—
03110	03110 MD325854 BELT, VALVE TIMING	MD325854	US $113.22
	replacements
03110	03110 1145A049 BELT,VALVE TIMING	1145A049	US $56.63
03110	03110 1145A050 BELT, VALVE TIMING	1145A050	US $58.82
03110	03110 MD340625 BELT, VALVE TIMING	MD340625	US $70.30
	replacements
03110	03110 1145A049 BELT,VALVE TIMING	1145A049	US $56.63
03110	03110 1145A050 BELT, VALVE TIMING	1145A050	US $58.82
03166	03166 MD332276 SPRING, TIMING BELT TENSIONER	MD332276	from US $5.61
03171	03171 MD312638 SPROCKET, CAMSHAFT	MD312638	from US $32.92
03173	03173 MD329976 TENSIONER, TIMING BELT	MD329976	from US $100.55
03173	03173 MD356509 TENSIONER, TIMING BELT	MD356509	from US $55.79
03195	03195 MD158443 PIN, CAMSHAFT Dowel,6x14	MD158443	from US $3.57
03257	03257 MD145090 SPACER, VALVE GEAR TRAIN 8.7	MD145090	US $4
03258	03258 MD300344 SPACER, TIMING BELT TRAIN 4	MD300344	from US $5.32
03264P	03264P MD119981 WASHER, VALVE GEAR TRAIN Waved,19.6	MD119981	US $2.81
03277P	03277P MD148308 BOLT, VALVE GEAR TRAIN Washer assemble,8x18	MD148308	US $2.81
03281	03281 MF450154 WASHER, ENG FR MOUNTING Plain,8	MF450154	from US $0.84
03282	03282 MD185714 SPRING PIN, TIMING BELT TRAIN 5x20	MD185714	from US $2.09
03282P	03282P MF472503 PIN, FLOOR CONSOLE Spring,2x8	MF472503	from US $0.47
03285P	03285P MF140285 BOLT, ENG RR PLATE Flange,12x30	MF140285	from US $1.01
03285Q	03285Q MF140234 BOLT, TIMING GEAR CASE Flange,8x45	MF140234	from US $1.46
03301	03301 MD339767 ADJUSTER, ROCKER ARM LASH	MD339767	US $31.82
03301	03301 MD377561 ADJUSTER, ROCKER ARM LASH	MD377561	US $25.90
03324P	03324P MD342983 ROCKER ARM,INLET & EXHAUST VALVE	MD342983	—
03324Q	03324Q MD342982 ROCKER ARM,INLET & EXHAUST VALVE	MD342982	—
03343P	03343P MD140048 ROCKER ARM ASSY, INLET & EXHAUST VALVE	MD140048	US $51.06
03343P	03343P MD349758 ROCKER ARM,INLET VALVE	MD349758	—
03343Q	03343Q MD140047 ROCKER ARM ASSY, INLET & EXHAUST VALVE	MD140047	US $53.28
03343Q	03343Q MD349757 ROCKER ARM,INLET VALVE	MD349757	—
03348	03348 MD166811 SHAFT, INLET VALVE ROCKER ARM	MD166811	US $76.22
03348	03348 MD350065 SHAFT,INLET VALVE ROCKER ARM	MD350065	—
03349	03349 MD166812 SHAFT, EXHAUST VALVE ROCKER ARM	MD166812	US $76.22
03349	03349 MD350499 SHAFT,EXHAUST VALVE ROCKER ARM	MD350499	—
03356	03356 MD320264 SPRING, ROCKER SHAFT	MD320264	US $2.37
03405	03405 MD016482 RETAINER, VALVE SPRING	MD016482	from US $3.53
03405P	03405P MD082530 RETAINER, VALVE SPRING	MD082530	US $4.29
03410	03410 MD128434 VALVE, INLET	MD128434	US $25.90
03410	03410 MD128435 VALVE, INLET	MD128435	US $25.90
03412	03412 MD016495 SEAT, VALVE SPRING	MD016495	US $4.14
03412P	03412P MD147965 SEAT, VALVE SPRING	MD147965	US $3.26
03413	03413 MD139602 SPRING, INLET & EXHAUST VALVE	MD139602	US $4.88
03414	03414 MD139603 SPRING, INLET & EXHAUST VALVE	MD139603	US $4.88
03420	03420 MD139755 Valve, Exhaust	MD139755	from US $38.48
03450	03450 MD016483 LOCK, VALVE SPRING RETAINER	MD016483	from US $1.15
03480	03480 MD306078 SEAL, INLET VALVE STEM Rubber	MD306078	US $7.25
03490	03490 MD307343 SEAL, VALVE STEM Rubber	MD307343	from US $4.91

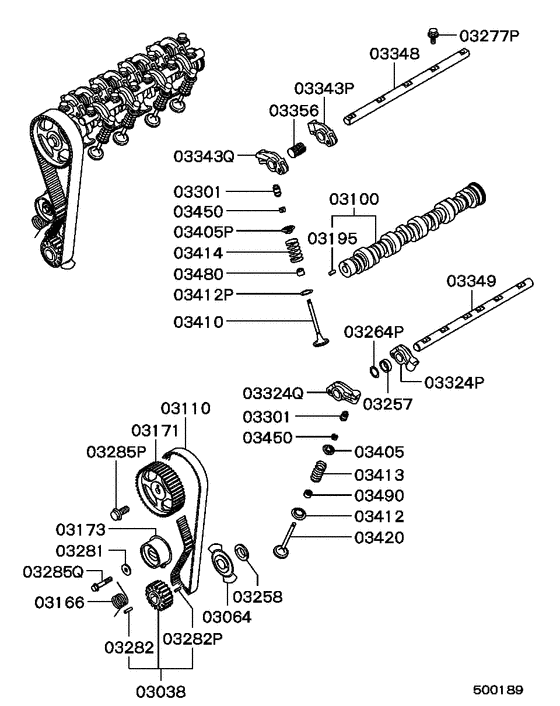

Camshaft & valve (9706.1-) Diagram Mitsubishi MIRAGE MMNA 1868142-163936

Camshaft & valve (9706.1-) Diagram Mitsubishi MIRAGE MMNA 1868142-163936
