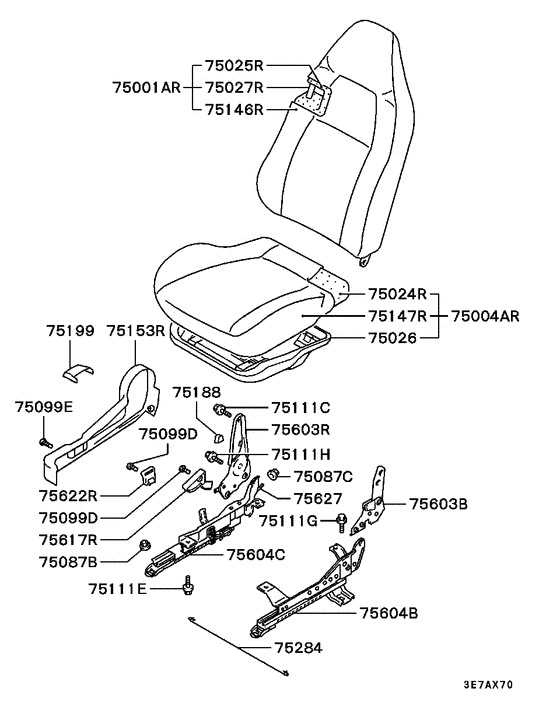

Front seat (RH..HIGH BACK) Diagram Mitsubishi MIRAGE
- Year
- 1997 - 2002
- Sales region
- MMNA
- Note
- ES,4FA/T FED
- drive
- 2WD
- transmission
- 4FA/T
- grade
- ES
- body
- SEDAN/HATCHBACK
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75001AR
|
75001AR
MR600359
BACK ASSY,FR SEAT,RH
|
MR600359 |
— | ||
|
75001AR
|
75001AR
MR769158
BACK ASSY,FR SEAT,RH
|
MR769158 |
— | ||
|
75001AR
|
75001AR
MR769165
BACK ASSY,FR SEAT,RH
|
MR769165 |
— | ||
|
75004AR
|
75004AR
MR600311
CUSHION ASSY,FR SEAT,RH
|
MR600311 |
— | ||
|
75004AR
|
75004AR
MR769122
CUSHION ASSY,FR SEAT,RH
|
MR769122 |
— | ||
|
75004AR
|
75004AR
MR769123
CUSHION ASSY,FR SEAT,RH
|
MR769123 |
— | ||
|
75024R
|
75024R
MR219720 PAD, FR SEAT CUSHION, RH |
MR219720 |
US $208.68 |
||
|
75025R
|
75025R
MR219728 PAD, FR SEAT BACK, RH |
MR219728 |
US $143.56 |
||
|
75025R
|
75025R
MR219730 PAD, FR SEAT BACK, RH |
MR219730 |
US $158.36 |
||
|
75026
|
75026
MB915750 FRAME, FR SEAT CUSHION |
MB915750 |
US $62.24 |
||
|
75027R
|
75027R
MB902404
FRAME,FR SEAT BACK,RH
|
MB902404 |
— | ||
|
75027R
|
75027R
MR251102
FRAME,FR SEAT BACK,RH
|
MR251102 |
— | ||
|
75087B
|
75087B
MU431010 NUT, FR SEATCap,washer assembled |
MU431010 |
US $2.60 |
||
|
75087C
|
75087C
MB902440 NUT, FR SEAT |
MB902440 |
US $2.37 |
||
|
75099D
|
75099D
MB410568 SCREW, FR SEAT4x6 |
MB410568 |
US $3.56 |
||
|
75099E
|
75099E
MF455497 SCREW, RR PILLAR GARNISHTapping,4x12 |
MF455497 |
from US $0.20 |
||
|
75111C
|
75111C
MB144649 BOLT, FR SEAT10x21 |
MB144649 |
US $3.69 |
||
|
75111E
|
75111E
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
||
|
75111G
|
75111G
MS240188 BOLT, FR BUMPERWasher assembled,10x30 |
MS240188 |
from US $1.44 |
||
|
75111G
|
75111G
MS240189 BOLT, BRAKE PEDALWasher assembled,10x25 |
MS240189 |
US $3.28 |
||
|
75111H
|
75111H
MB902324 BOLT, FR SEATM10x18 |
MB902324 |
US $3.56 |
||
|
75146R
|
75146R
MR600371
COVER,FR SEAT BACK,RH
|
MR600371 |
— | ||
|
75146R
|
75146R
MR769168
COVER,FR SEAT BACK,RH
|
MR769168 |
— | ||
|
75146R
|
75146R
MR769175
COVER,FR SEAT BACK,RH
|
MR769175 |
— | ||
|
75147R
|
75147R
MR600323
COVER,FR SEAT CUSHION,RH
|
MR600323 |
— | ||
|
75147R
|
75147R
MR769132
COVER,FR SEAT CUSHION,RH
|
MR769132 |
— | ||
|
75147R
|
75147R
MR769133
COVER,FR SEAT CUSHION,RH
|
MR769133 |
— | ||
|
75153R
|
75153R
MR753609 COVER, FR SEAT SIDE SHIELD, RH |
MR753609 |
US $25.31 |
||
|
75188
|
75188
MR744261
KNOB,FR SEAT WALK-IN
|
MR744261 |
— | ||
|
75199
|
75199
MB960263 COVER, FR SEAT ANCHOR |
MB960263 |
US $3.83 |
||
|
75199
|
75199
MR628222 COVER, FR SEAT ANCHOR |
MR628222 |
US $4.79 |
||
|
75284
|
75284
MB874502 WIRE, FR SEAT |
MB874502 |
US $4 |
||
|
75603B
|
75603B
MB916551
ADJUSTER,FR SEAT RECLINING,RH
|
MB916551 |
— | ||
|
75603R
|
75603R
MB874607
ADJUSTER,FR SEAT RECLINING,RH
|
MB874607 |
— | ||
|
75604B
|
75604B
MR219748
ADJUSTER,FR SEAT SLIDE
|
MR219748 |
— | ||
|
75604C
|
75604C
MB874482 ADJUSTER, FR SEAT SLIDE |
MB874482 |
US $86.58 |
||
|
75604C
|
75604C
MB902436
ADJUSTER,FR SEAT SLIDE
|
MB902436 |
— | ||
|
75617R
|
75617R
MB725072 KNOB, FR SEAT RECLINING ADJUSTER, RH |
MB725072 |
US $9.58 |
||
|
75622R
|
75622R
MB728419 KNOB, FR SEAT SLIDE ADJUSTER, RH |
MB728419 |
US $14.36 |
||
|
75627
|
75627
MB874505 ROD, FR SEAT SLIDE ADJUSTER |
MB874505 |
US $5.48 |
