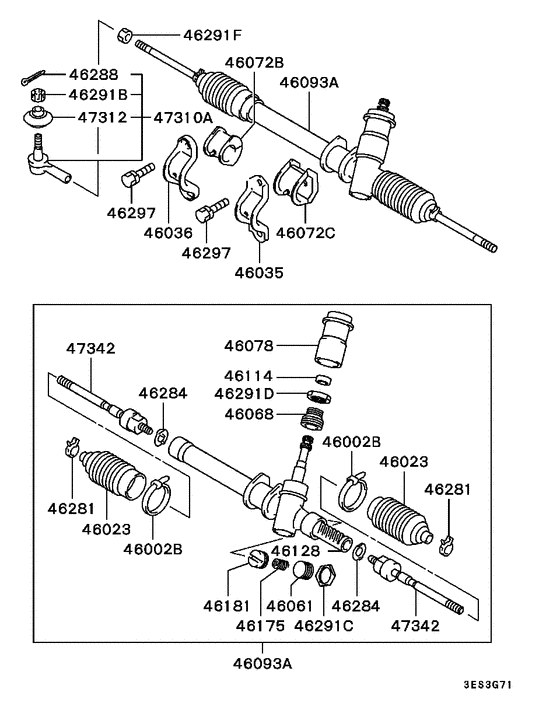

Steering gear (MANUAL STEERING) Diagram Mitsubishi MIRAGE
- Year
- 1996 - 2002
- Sales region
- MMNA
- Note
- DE,4FA/T FED
- drive
- 2WD
- transmission
- 4FA/T
- grade
- DE
- body
- SEDAN/HATCHBACK
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46002B
|
46002B
MB122139 BAND, INDEPENDENT RR SUSP ARM270 |
MB122139 |
from US $4.60 |
||
|
46023
|
46023
MB350581
BELLOWS, STEERING GEAR
|
MB350581 |
— | ||
| replacement | |||||
|
46023
|
46023
MB501711 BELLOWS, STEERING GEAR |
MB501711 |
from US $29.11 |
||
|
46023
|
46023
MB532531 BELLOWS, STEERING GEAR |
MB532531 |
US $30.34 |
||
|
46023
|
46023
MR297971 BELLOWS, STEERING GEAR |
MR297971 |
from US $38.14 |
||
|
46035
|
46035
MR197376 BRACKET, STEERING GEAR MOUNTING GEAR SIDE |
MR197376 |
US $6.43 |
||
|
46035
|
46035
MR316594
BRACKET,STEERING GEAR MOUNTING GEAR SIDE
|
MR316594 |
— | ||
|
46035
|
46035
MR403288
BRACKET,STEERING GEAR MOUNTING GEAR SIDE
|
MR403288 |
— | ||
|
46036
|
46036
MB288982 BRACKET, STEERING GEAR MOUNTING ROD SIDE |
MB288982 |
US $3.40 |
||
|
46036
|
46036
MB553744 BRACKET, STEERING GEAR MOUNTING ROD SIDE |
MB553744 |
US $8.07 |
||
|
46061
|
46061
MB122138
COVER, STEERING GEAR RACK SUPPORT
|
MB122138 |
— | ||
|
46061
|
46061
MR297968 COVER, STEERING GEAR RACK SUPPORT |
MR297968 |
US $7.84 |
||
|
46068
|
46068
MB489508 COVER, STEERING GEAR CASE TOP |
MB489508 |
US $39.22 |
||
|
46072B
|
46072B
MB532397 CUSHION, STEERING GEAR |
MB532397 |
US $8.34 |
||
|
46072C
|
46072C
MB864381 CUSHION, STEERING GEAR |
MB864381 |
US $7.99 |
||
|
46072C
|
46072C
MR197377 CUSHION, STEERING GEAR |
MR197377 |
US $6.84 |
||
|
46078
|
46078
MB910935
COVER, STEERING GEAR PINION
|
MB910935 |
— | ||
|
46093A
|
46093A
MB870949
GEAR & LINK ASSY,STEERING
|
MB870949 |
— | ||
|
46114
|
46114
MB412315 OIL SEAL, STEERING GEAR PINION |
MB412315 |
US $14.21 |
||
|
46128
|
46128
MB910943
RACK,STEERING GEAR
|
MB910943 |
— | ||
|
46128
|
46128
MR103173
RACK,STEERING GEAR
|
MR103173 |
— | ||
|
46128
|
46128
MR103262
RACK,STEERING GEAR
|
MR103262 |
— | ||
|
46175
|
46175
MB315560 SPRING, STEERING GEAR RACK SUPPORT |
MB315560 |
US $5.20 |
||
|
46175
|
46175
MB553048 SPRING, STEERING GEAR RACK SUPPORT |
MB553048 |
US $6.07 |
||
|
46181
|
46181
MB351245 SUPPORT, STEERING GEAR RACK |
MB351245 |
US $25.99 |
||
|
46181
|
46181
MB532526 SUPPORT, STEERING GEAR RACK |
MB532526 |
US $17.76 |
||
|
46181
|
46181
MR519181 SUPPORT,STEERING GEAR RACK |
MR519181 |
US $14.84 |
||
|
46281
|
46281
MS660165 CLIP, ROCKER COVERD=14.8 |
MS660165 |
from US $1.72 |
||
|
46284
|
46284
MB266164 WASHER, STEERING GEAR |
MB266164 |
from US $6.49 |
||
|
46288
|
46288
MF472054 PIN, ENG OIL PUMP INRSplit,2.5x25 |
MF472054 |
US $1.37 |
||
|
46291B
|
46291B
MB122128 NUT, FR SUSP LWR ARMSlotted,6t,10 |
MB122128 |
US $3.56 |
||
|
46291B
|
46291B
MS440002 NUT, ENG RR MOUNTINGSelf locking,10 |
MS440002 |
from US $2.26 |
||
|
46291C
|
46291C
MB006415 NUT, STEERING GEAR |
MB006415 |
US $8.48 |
||
|
46291D
|
46291D
MB412314 NUT, STEERING GEARLock |
MB412314 |
US $6.81 |
||
|
46291F
|
46291F
MF430123 NUT, ENG RR MOUNTING12 |
MF430123 |
from US $1.11 |
||
|
46297
|
46297
MS240118 BOLT, ENG SUPPORT RODWasher assembled,12x30 |
MS240118 |
from US $1.62 |
||
|
46297
|
46297
MU241042 BOLT, STEERING GEARWasher assembled,12x30 |
MU241042 |
US $5.20 |
||
|
47310A
|
47310A
MB912076 END ASSY, TIE ROD |
MB912076 |
US $75.92 |
||
|
47310A
|
47310A
MR476457 END ASSY, TIE ROD |
MR476457 |
US $27.01 |
||
| replacement | |||||
|
47310A
|
47310A
48564W020P END ASSYTIE ROD |
48564W020P |
from US $25.47 |
||
|
47312
|
47312
MB616023
COVER, TIE ROD END
|
MB616023 |
— | ||
| replacement | |||||
|
47312
|
47312
4422A137 TIE ROD END BOOT |
4422A137 |
US $19.20 |
||
|
47342
|
47342
MR130807
TIE ROD, STEERING
|
MR130807 |
— | ||
| replacement | |||||
|
47342
|
47342
MR297969 TIE ROD, STEERING |
MR297969 |
US $123.80 |
||
|
47342
|
47342
MR297969 TIE ROD, STEERING |
MR297969 |
US $123.80 |
||
