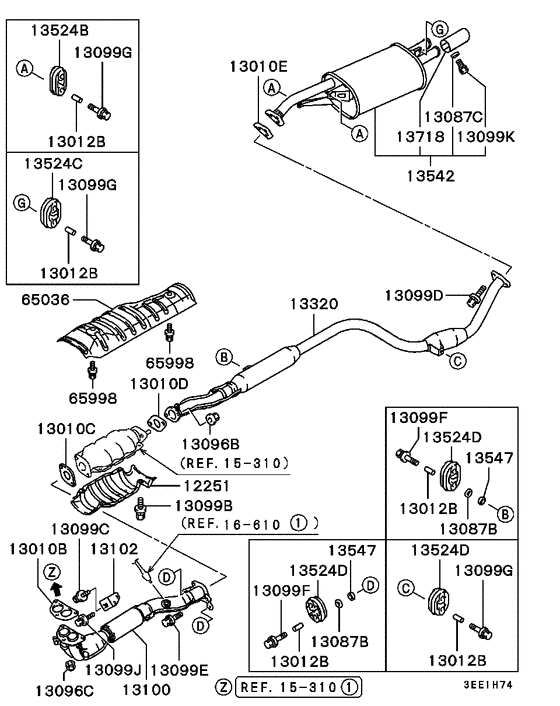

Exhaust pipe & muffler (SEDAN) Diagram Mitsubishi MIRAGE
- Year
- 1995 - 1996
- Sales region
- Japan
- Note
- ASTI-RS/MIRAGE-CUP(MIVEC/2DR SDN),5FM/T
- drive
- 2WD
- transmission
- 5FM/T
- grade
- ASTI-RS/MIRAGE-
- body
- SEDAN/HATCHBACK
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12251
|
12251
MB651459 PROTECTOR, CATALYTIC CONVERTER |
MB651459 |
US $48.10 |
||
|
13010B
|
13010B
MB687022 GASKET, EXHAUST PIPE |
MB687022 |
from US $10.21 |
||
|
13010C
|
13010C
MB687002 GASKET, EXHAUST PIPE |
MB687002 |
from US $5.73 |
||
|
13010D
|
13010D
MB687002 GASKET, EXHAUST PIPE |
MB687002 |
from US $5.73 |
||
|
13010E
|
13010E
MB687013 GASKET, EXHAUST PIPE |
MB687013 |
from US $4.60 |
||
|
13012B
|
13012B
MB514690 COLLAR, EXHAUST PIPE |
MB514690 |
from US $1.85 |
||
|
13087B
|
13087B
MF450154 WASHER, ENG FR MOUNTINGPlain,8 |
MF450154 |
from US $0.84 |
||
|
13087C
|
13087C
MS450024 WASHER, EXHAUST PIPEPlain,6 |
MS450024 |
US $3.97 |
||
|
13096B
|
13096B
MB059359 NUT, CATALYTIC CONVERTERSelf locking,6t,12 |
MB059359 |
from US $1.66 |
||
|
13096B
|
13096B
MR571083 NUT, EXHAUST PIPE |
MR571083 |
from US $1.27 |
||
|
13096C
|
13096C
MB059333 NUT, EXHAUST PIPESelf locking,10 |
MB059333 |
from US $1.74 |
||
|
13099B
|
13099B
MF140002 BOLT, ROCKER COVERFlange,6x10 |
MF140002 |
US $0.96 |
||
| replacement | |||||
|
13099B
|
13099B
MF140202 BOLT, FLANGE (6x10)Flange,6x10 |
MF140202 |
from US $1.66 |
||
|
13099C
|
13099C
MF244882 BOLT, ENG RR MOUNTINGWasher assembled,10x30 |
MF244882 |
from US $1.05 |
||
|
13099D
|
13099D
MF241286 BOLT, COOLING FANWasher assembled,10x35 |
MF241286 |
from US $1.07 |
||
|
13099E
|
13099E
MF241309 BOLT, ENG MOUNTINGWasher assembled,12x30 |
MF241309 |
from US $1.54 |
||
|
13099F
|
13099F
MF243660 BOLT, RADIATORWasher assembled,8x45 |
MF243660 |
from US $1.58 |
||
|
13099G
|
13099G
MF243659
BOLT, INTER COOLER
|
MF243659 |
— | ||
| replacement | |||||
|
13099G
|
13099G
MF244859 BOLT, A/C COMPRESSORWasher assembled,8x40 |
MF244859 |
from US $1.58 |
||
|
13099J
|
13099J
MF241278 BOLT, ENG MOUNTINGWasher assembled,10x16 |
MF241278 |
from US $1.15 |
||
|
13099K
|
13099K
MU240115 BOLT, EXHAUST PIPE6x10 |
MU240115 |
US $3.28 |
||
|
13100
|
13100
MR188806 PIPE, EXHAUST, FR |
MR188806 |
US $436.80 |
||
|
13102
|
13102
MR188941 BRACKET, EXHAUST FR PIPE |
MR188941 |
US $11.40 |
||
|
13320
|
13320
MR188832
PIPE, EXHAUST, CTR
|
MR188832 |
— | ||
|
13320
|
13320
MR373972 PIPE, EXHAUST, CTR |
MR373972 |
US $547.46 |
||
|
13524B
|
13524B
MB906121 HANGER, EXHAUST MUFFLER |
MB906121 |
US $7.39 |
||
|
13524C
|
13524C
MB906124 HANGER, EXHAUST MUFFLER |
MB906124 |
from US $10.02 |
||
|
13524D
|
13524D
MB906128 HANGER, EXHAUST MUFFLER |
MB906128 |
from US $6.20 |
||
|
13542
|
13542
MB925320 MUFFLER, EXHAUST MAIN |
MB925320 |
US $446.99 |
||
|
13542
|
13542
MR188880 MUFFLER, EXHAUST MAIN |
MR188880 |
US $412.05 |
||
|
13547
|
13547
MB651931 SEAT, EXHAUST MUFFLER HANGER |
MB651931 |
from US $2.52 |
||
|
13718
|
13718
MB810947 DIFFUSER, EXHAUST TAIL PIPE |
MB810947 |
US $71.04 |
||
|
13718
|
13718
MB868897 DIFFUSER, EXHAUST TAIL PIPE |
MB868897 |
US $85.84 |
||
|
65036
|
65036
MR199084 PROTECTOR, UNDER FR FLOOR HEAT |
MR199084 |
US $53.28 |
||
|
65998
|
65998
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
15 310
|
Exhaust manifold
15 310
|
||||
|
15 310
|
Exhaust manifold
15 310
|
||||
