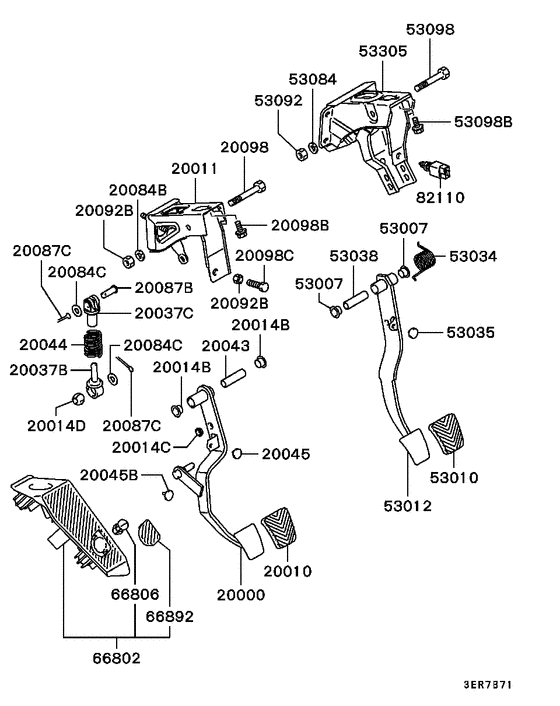

Brake & clutch pedal (M/T) Diagram Mitsubishi MIRAGE
- Year
- 1996 - 1997
- Sales region
- Japan
- Note
- EVO-4 RS,5FM/T
- drive
- 4WD
- transmission
- 5FM/T
- grade
- EVO-4 RS
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20000
|
20000
MR235075 PEDAL, CLUTCH |
MR235075 |
US $62.24 |
||
|
20010
|
20010
MB193884 PAD, BRAKE PEDAL62x58-40 |
MB193884 |
from US $3.26 |
||
|
20011
|
20011
MR235076 BRACKET, CLUTCH PEDAL |
MR235076 |
US $42.41 |
||
|
20014B
|
20014B
MR131206 BUSHING, BRAKE PEDAL14x10 |
MR131206 |
from US $4.79 |
||
|
20014C
|
20014C
MB555171 BUSHING, CLUTCH PEDAL10x8 |
MB555171 |
from US $4.11 |
||
|
20014D
|
20014D
MB807054 BUSHING, CLUTCH PEDAL10x16 |
MB807054 |
US $2.87 |
||
|
20037B
|
20037B
MB807046 ROD, CLUTCH PEDAL RETURN SPRING |
MB807046 |
US $23.26 |
||
|
20037C
|
20037C
MB807045 ROD, CLUTCH PEDAL RETURN SPRING |
MB807045 |
US $18.47 |
||
|
20043
|
20043
MR171374 SPACER, CLUTCH PEDAL14x49.3 |
MR171374 |
US $4.51 |
||
|
20044
|
20044
MR151403 SPRING, CLUTCH PEDAL RETURN |
MR151403 |
US $12.28 |
||
|
20045
|
20045
MR235515 STOPPER, CLUTCH PEDAL |
MR235515 |
US $4.65 |
||
|
20045B
|
20045B
MB134911
STOPPER, BRAKE PEDAL
|
MB134911 |
— | ||
| replacement | |||||
|
20045B
|
20045B
MA306227 STOPPER, ACCEL PEDAL ARM |
MA306227 |
from US $1.58 |
||
|
20084B
|
20084B
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.43 |
||
|
20084C
|
20084C
MB151106 WASHER, CLUTCH M/CYL10 |
MB151106 |
US $2.74 |
||
|
20087B
|
20087B
MB844735 PIN, CLUTCH PEDALClevis,10x30 |
MB844735 |
US $4.79 |
||
|
20087C
|
20087C
MF472052 PIN, FUEL TANKSplit,2.5x20 |
MF472052 |
US $0.96 |
||
|
20092B
|
20092B
MF430006 NUT10 |
MF430006 |
from US $1.35 |
||
|
20098
|
20098
MF104896 BOLT, RR SUSP SPRING10x65 |
MF104896 |
from US $1.97 |
||
|
20098B
|
20098B
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
20098C
|
20098C
MS100135 BOLT, CLUTCH PEDAL10x35 |
MS100135 |
US $2.87 |
||
|
53007
|
53007
MR131206 BUSHING, BRAKE PEDAL14x10 |
MR131206 |
from US $4.79 |
||
|
53010
|
53010
MB193884 PAD, BRAKE PEDAL62x58-40 |
MB193884 |
from US $3.26 |
||
|
53012
|
53012
MR307625 PEDAL, BRAKE |
MR307625 |
US $53.28 |
||
|
53034
|
53034
MR103616 SPRING, BRAKE PEDAL RETURN |
MR103616 |
US $6.29 |
||
|
53035
|
53035
MR235515 STOPPER, CLUTCH PEDAL |
MR235515 |
US $4.65 |
||
|
53038
|
53038
MR171374 SPACER, CLUTCH PEDAL14x49.3 |
MR171374 |
US $4.51 |
||
|
53084
|
53084
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.43 |
||
|
53092
|
53092
MF430006 NUT10 |
MF430006 |
from US $1.35 |
||
|
53098
|
53098
MF104896 BOLT, RR SUSP SPRING10x65 |
MF104896 |
from US $1.97 |
||
|
53098B
|
53098B
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
53305
|
53305
MR249156 MEMBER, PEDAL SUPPORT |
MR249156 |
US $68.82 |
||
|
66802
|
66802
MR201425 FOOTREST |
MR201425 |
US $60.19 |
||
|
66806
|
66806
MR190315 CLIP, FOOTREST |
MR190315 |
US $3.15 |
||
|
66892
|
66892
MR206570 PLUG, FOOTREST |
MR206570 |
from US $4.21 |
||
|
82110
|
82110
MB435457 SWITCH, STOP LAMP |
MB435457 |
from US $9.52 |
||
