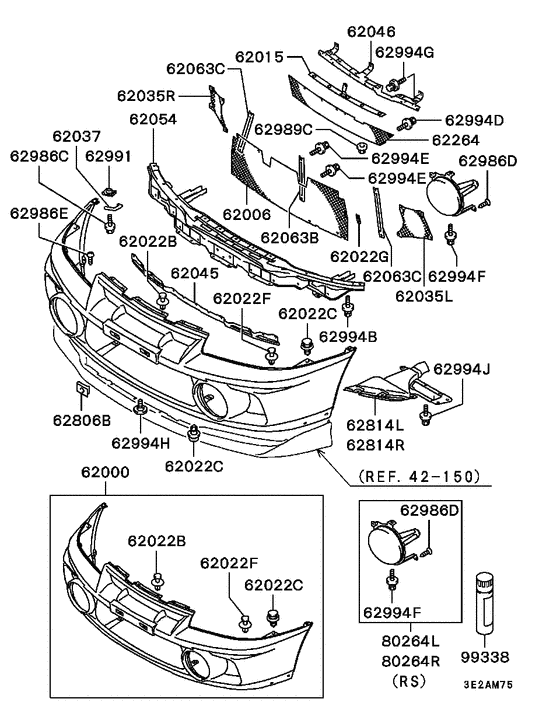

Front bumper & support (ALL) Diagram Mitsubishi MIRAGE
- Year
- 1996 - 1997
- Sales region
- Japan
- Note
- EVO-4 RS,5FM/T
- drive
- 4WD
- transmission
- 5FM/T
- grade
- EVO-4 RS
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62000
|
62000
MR325601
FACE KIT, FR BUMPER
|
MR325601 |
— | ||
| replacement | |||||
|
62000
|
62000
MR566716
FACE KIT, FR BUMPER (COLORLESSNESS)
|
MR566716 |
— | ||
|
62000
|
62000
MR325603 FACE KIT, FR BUMPER |
MR325603 |
US $972.61 |
||
|
62000
|
62000
MR325604
FACE KIT, FR BUMPER
|
MR325604 |
— | ||
| replacement | |||||
|
62000
|
62000
MR566716
FACE KIT, FR BUMPER (COLORLESSNESS)
|
MR566716 |
— | ||
|
62000
|
62000
MR325606 FACE KIT, FR BUMPER |
MR325606 |
US $972.61 |
||
|
62000
|
62000
MR325607 FACE KIT, FR BUMPER |
MR325607 |
US $972.61 |
||
|
62000
|
62000
MR325608 FACE KIT, FR BUMPER |
MR325608 |
US $972.61 |
||
|
62000
|
62000
MR325610 FACE KIT, FR BUMPER |
MR325610 |
US $972.61 |
||
|
62000
|
62000
MR325611 FACE KIT, FR BUMPER |
MR325611 |
US $972.61 |
||
|
62000
|
62000
MR325613 FACE KIT, FR BUMPER |
MR325613 |
US $972.61 |
||
|
62000
|
62000
MR325614 FACE KIT, FR BUMPER |
MR325614 |
US $972.61 |
||
|
62006
|
62006
MR286248
NET, FR BUMPER, CTR
|
MR286248 |
— | ||
|
62015
|
62015
MR288323
BRACKET, FR BUMPER, CTR
|
MR288323 |
— | ||
|
62022B
|
62022B
MB253964 CLIP, FR BUMPER |
MB253964 |
from US $1.52 |
||
|
62022C
|
62022C
MR200300 CLIP, FR BUMPER |
MR200300 |
from US $1.37 |
||
|
62022F
|
62022F
MR767272 CLIP, TAILGATE TRIM |
MR767272 |
from US $1.89 |
||
|
62022G
|
62022G
MB325298 CLIP, FR BUMPER0.4 |
MB325298 |
from US $1.44 |
||
|
62035L
|
62035L
MR286249
NET, FR BUMPER, LH
|
MR286249 |
— | ||
|
62035R
|
62035R
MR286250
NET, FR BUMPER, RH
|
MR286250 |
— | ||
|
62037
|
62037
MB575451 PAD, FR BUMPER FACE47 |
MB575451 |
US $4.10 |
||
|
62045
|
62045
MR288321
PLATE, FR BUMPER, LWR
|
MR288321 |
— | ||
|
62046
|
62046
MR288319
PLATE, FR BUMPER, UPR
|
MR288319 |
— | ||
|
62054
|
62054
MR288311
REINFORCEMENT, FR BUMPER
|
MR288311 |
— | ||
|
62063B
|
62063B
MB909088 STAY, FR BUMPER |
MB909088 |
US $13.02 |
||
|
62063C
|
62063C
MR236038 STAY, FR BUMPER |
MR236038 |
US $12.86 |
||
|
62264
|
62264
MR286247
NET, RADIATOR GRILLE
|
MR286247 |
— | ||
|
62806B
|
62806B
MB325163 BRACKET, FR LICENSE PLATE |
MB325163 |
from US $4.21 |
||
|
62814L
|
62814L
MR286275
DUCT, FR BRAKE COOLING, LH
|
MR286275 |
— | ||
|
62814R
|
62814R
MR286276 DUCT, FR BRAKE COOLING, RH |
MR286276 |
US $69.77 |
||
|
62986C
|
62986C
MS452357 SCREW, FR BUMPERTapping washer assembled,6x20 |
MS452357 |
from US $2.75 |
||
|
62986D
|
62986D
MS452028 SCREW, FR BUMPERWasher assembled,5x16 |
MS452028 |
US $4.24 |
||
|
62986E
|
62986E
MS200322 SCREW, RADIATOR GRILLEMachine flange,6x16 |
MS200322 |
US $2.05 |
||
|
62989C
|
62989C
MS440542 NUT, AIR CLEANERWasher assembled,6 |
MS440542 |
US $4.10 |
||
|
62991
|
62991
MB481588 GROMMET, FR BUMPERScrew .,6 |
MB481588 |
from US $2.07 |
||
|
62994B
|
62994B
MU240022 BOLT, FR SEATWasher assembled,8x25 |
MU240022 |
US $5.20 |
||
|
62994D
|
62994D
MS240179 BOLT, FR BUMPERWasher assembled,6x16 |
MS240179 |
from US $0.88 |
||
|
62994E
|
62994E
MS240602 BOLT, FR BUMPERWasher assembled,6x20 |
MS240602 |
from US $0.98 |
||
|
62994F
|
62994F
MS240602 BOLT, FR BUMPERWasher assembled,6x20 |
MS240602 |
from US $0.98 |
||
|
62994G
|
62994G
MS240179 BOLT, FR BUMPERWasher assembled,6x16 |
MS240179 |
from US $0.88 |
||
|
62994H
|
62994H
MU101019 BOLT, FR BUMPERShoulder,6x18 |
MU101019 |
US $4.79 |
||
|
62994J
|
62994J
MS240602 BOLT, FR BUMPERWasher assembled,6x20 |
MS240602 |
from US $0.98 |
||
|
80264L
|
80264L
MR325615
COVER, FR FOG LAMP, LH
|
MR325615 |
— | ||
|
80264L
|
80264L
MR325619
COVER, FR FOG LAMP, LH
|
MR325619 |
— | ||
|
80264L
|
80264L
MR325621
COVER, FR FOG LAMP, LH
|
MR325621 |
— | ||
|
80264L
|
80264L
MR325625 COVER, FR FOG LAMP, LH |
MR325625 |
US $105.34 |
||
|
80264L
|
80264L
MR325627
COVER, FR FOG LAMP, LH
|
MR325627 |
— | ||
|
80264R
|
80264R
MR325616
COVER, FR FOG LAMP, RH
|
MR325616 |
— | ||
|
80264R
|
80264R
MR325620
COVER, FR FOG LAMP, RH
|
MR325620 |
— | ||
|
80264R
|
80264R
MR325622
COVER, FR FOG LAMP, RH
|
MR325622 |
— | ||
|
80264R
|
80264R
MR325626 COVER, FR FOG LAMP, RH |
MR325626 |
US $105.34 |
||
|
80264R
|
80264R
MR325628
COVER, FR FOG LAMP, RH
|
MR325628 |
— | ||
|
99338
|
99338
MZ101901
TOUCH-UP PAINT
|
MZ101901 |
— | ||
|
99338
|
99338
MZ101902
TOUCH-UP PAINT
|
MZ101902 |
— | ||
|
99338
|
99338
MZ101955 TOUCH-UP PAINT |
MZ101955 |
US $9.58 |
||
|
99338
|
99338
MZ101971 TOUCH-UP PAINT (Cannot supply)Поставка только по Японии |
MZ101971 |
US $10.36 |
||
|
99338
|
99338
MZ101977 TOUCH-UP PAINT |
MZ101977 |
US $10.36 |
||
|
