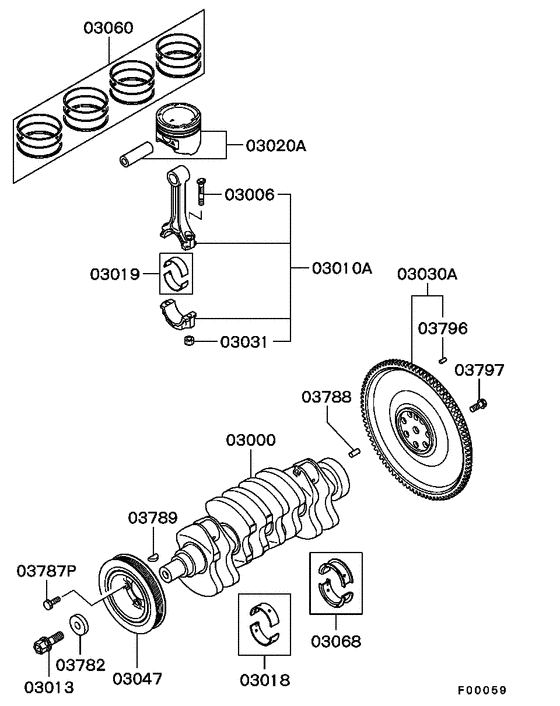

Piston & crankshaft (-9705.3) Diagram Mitsubishi MIRAGE
- Year
- 1996 - 1997
- Sales region
- Japan
- Note
- EVO-4 RS,5FM/T
- drive
- 4WD
- transmission
- 5FM/T
- grade
- EVO-4 RS
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
03000
|
03000
MD187923 CRANKSHAFT |
MD187923 |
US $1,699.20 |
||
|
03000
|
03000
MD346024 CRANKSHAFT |
MD346024 |
US $1,320.59 |
||
|
03006
|
03006
MD193029 BOLT, CONNROD8x55.1 |
MD193029 |
from US $2.98 |
||
|
03010A
|
03010A
MD340843
CONNECTING ROD ASSY
|
MD340843 |
— | ||
| replacement | |||||
|
03010A
|
03010A
MN149125 CONNECTING ROD ASSY |
MN149125 |
US $158.36 |
||
|
03013
|
03013
MD074255
CENTER BOLT, CRANKSHAFT PULLEY
|
MD074255 |
— | ||
| replacement | |||||
|
03013
|
03013
1101A022 CENTER BOLT, CRANKSHAFT PULLEY14x40 |
1101A022 |
from US $9.30 |
||
|
03018
|
03018
MD326349
BEARING, CRANKSHAFT (STD 0)
|
MD326349 |
— | ||
| replacement | |||||
|
03018
|
03018
1052B118 BEARING, CRANKSHAFT (STD 0)RED |
1052B118 |
US $33.52 |
||
|
03018
|
03018
MD326350
BEARING, CRANKSHAFT (STD 1)
|
MD326350 |
— | ||
| replacement | |||||
|
03018
|
03018
1052B119 BEARING, CRANKSHAFT (STD 1)BLACK |
1052B119 |
from US $27.12 |
||
|
03018
|
03018
MD326351
BEARING, CRANKSHAFT (STD 2)
|
MD326351 |
— | ||
| replacement | |||||
|
03018
|
03018
1052B120 BEARING, CRANKSHAFT (STD 2)PURPLE |
1052B120 |
from US $24.88 |
||
|
03018
|
03018
MD326352
BEARING, CRANKSHAFT (STD 3)
|
MD326352 |
— | ||
| replacement | |||||
|
03018
|
03018
1052B121 BEARING, CRANKSHAFT (STD 3)GREEN |
1052B121 |
from US $29.43 |
||
|
03018
|
03018
MD326353
BEARING, CRANKSHAFT (STD 4)
|
MD326353 |
— | ||
| replacement | |||||
|
03018
|
03018
1052B122 BEARING, CRANKSHAFT (STD 4)BLUE |
1052B122 |
US $36.26 |
||
|
03019
|
03019
MD326359
BEARING, CONNROD (STD 0)
|
MD326359 |
— | ||
| replacement | |||||
|
03019
|
03019
1115A429 BEARING, CONNROD (STD 0)RED |
1115A429 |
from US $19.81 |
||
|
03019
|
03019
MD326360
BEARING, CONNROD (STD 1)
|
MD326360 |
— | ||
| replacement | |||||
|
03019
|
03019
1115A430 BEARING, CONNRODBLACK |
1115A430 |
from US $20.30 |
||
|
03019
|
03019
MD326361
BEARING, CONNROD (STD 2)
|
MD326361 |
— | ||
| replacement | |||||
|
03019
|
03019
1115A431 BEARING, CONNROD (STD 2)PURPLE |
1115A431 |
from US $19.27 |
||
|
03020A
|
03020A
MD340913 PISTON & PIN ASSYStd a |
MD340913 |
US $113.22 |
||
|
03020A
|
03020A
MD340914 PISTON & PIN ASSYStd b |
MD340914 |
US $113.22 |
||
|
03020A
|
03020A
MD340915 PISTON & PIN ASSYStd c |
MD340915 |
US $113.22 |
||
|
03020A
|
03020A
MD343589 PISTON & PIN ASSYO/size 0.50 |
MD343589 |
US $113.22 |
||
|
03020A
|
03020A
MD343590 PISTON & PIN ASSYO/size 1.00 |
MD343590 |
US $113.22 |
||
|
03030A
|
03030A
MD338536 FLYWHEEL ASSY |
MD338536 |
US $396.03 |
||
|
03031
|
03031
MD144215 NUT, CONNROD8 |
MD144215 |
from US $2.63 |
||
|
03047
|
03047
MD340590 PULLEY, CRANKSHAFTRibbed |
MD340590 |
US $274.46 |
||
|
03060
|
03060
MD313405 RING SET, PISTONStd |
MD313405 |
from US $157.35 |
||
|
03060
|
03060
MD313406 RING SET, PISTONO/size 0.50 |
MD313406 |
US $199.73 |
||
|
03060
|
03060
MD313407 RING SET, PISTONO/size 1.00 |
MD313407 |
from US $159.08 |
||
|
03068
|
03068
MD343186
BEARING, CRANKSHAFT, CTR
|
MD343186 |
— | ||
|
03068
|
03068
MD343187 BEARING, CRANKSHAFT, CTRPlain,std 1 |
MD343187 |
US $44.40 |
||
|
03068
|
03068
MD343188
BEARING, CRANKSHAFT, CTR
|
MD343188 |
— | ||
|
03068
|
03068
MD343189
BEARING, CRANKSHAFT, CTR
|
MD343189 |
— | ||
|
03068
|
03068
MD343190 BEARING, CRANKSHAFT, CTRPlain,std 4 |
MD343190 |
US $44.40 |
||
|
03782
|
03782
MD012455
WASHER, CRANKSHAFT PULLEY
|
MD012455 |
— | ||
| replacement | |||||
|
03782
|
03782
MD377400 WASHER, CRANKSHAFT PULLEY14.5 |
MD377400 |
from US $4.88 |
||
|
03787P
|
03787P
MS240211 BOLT, CRANKSHAFT PULLEYWasher assembled,8x25 |
MS240211 |
from US $1.33 |
||
|
03788
|
03788
MD005994 PIN, CRANKSHAFTDowel,9x14 |
MD005994 |
US $4.65 |
||
|
03789
|
03789
MD008959 KEY, CRANKSHAFT |
MD008959 |
from US $2.03 |
||
|
03796
|
03796
MD158443 PIN, CAMSHAFTDowel,6x14 |
MD158443 |
from US $3.57 |
||
|
03796
|
03796
MF472403 PIN, CYLINDER BLOCKDowel,6x14 |
MF472403 |
from US $2.40 |
||
|
03797
|
03797
MD334117 BOLT, FLYWHEELFlange,12x15.2 |
MD334117 |
from US $2.18 |
||
