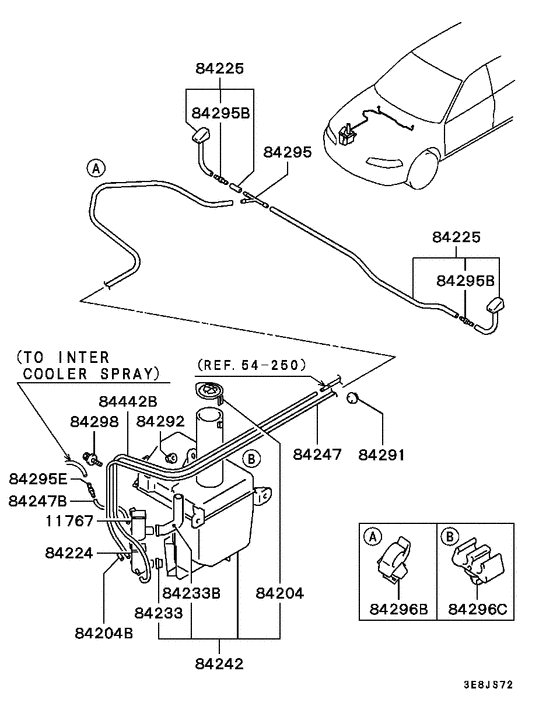

Windshield wiper & washer (WASHER TANK ETC.) Diagram Mitsubishi MIRAGE
- Year
- 1996 - 1997
- Sales region
- Japan
- Note
- EVO-4 RS,5FM/T
- drive
- 4WD
- transmission
- 5FM/T
- grade
- EVO-4 RS
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11767
|
11767
MR245368 MOTOR, WINDSHIELD WASHER |
MR245368 |
US $17.06 |
||
| replacement | |||||
|
11767
|
11767
602103620
Motor,windshield washer
|
602103620 |
— | ||
|
84204
|
84204
MR192438 CAP, WINDSHIELD WASHER TANK FILLER |
MR192438 |
from US $3.78 |
||
|
84204B
|
84204B
MR108098 CAP, WINDSHIELD WASHER TANK FILLER |
MR108098 |
US $1.33 |
||
| replacement | |||||
|
84204B
|
84204B
8265A115 CAP, WINDSHIELD WASHER TANK |
8265A115 |
US $1.33 |
||
|
84224
|
84224
MR108968
MOTOR, WINDSHIELD WASHER
|
MR108968 |
— | ||
|
84225
|
84225
MR109195
NOZZLE, WINDSHIELD WASHER
|
MR109195 |
— | ||
|
84225
|
84225
MR322183
NOZZLE, WINDSHIELD WASHER
|
MR322183 |
— | ||
|
84225
|
84225
MR322184
NOZZLE, WINDSHIELD WASHER
|
MR322184 |
— | ||
|
84233
|
84233
MB617937
GASKET, RR WINDOW WASHER TANK
|
MB617937 |
— | ||
| replacement | |||||
|
84233
|
84233
MC845482 GASKET, WINDSHIELD WASHER MOTOR |
MC845482 |
from US $0.96 |
||
|
84233B
|
84233B
MR108954
GASKET, WINDSHIELD WASHER TANK
|
MR108954 |
— | ||
|
84242
|
84242
MR339119
TANK, WINDSHIELD WASHER
|
MR339119 |
— | ||
|
84247
|
84247
MB084759 TUBE, WINDSHIELD WASHER MOTOR SIDERubber,4x2000 |
MB084759 |
from US $19.84 |
||
|
84247B
|
84247B
MB084759 TUBE, WINDSHIELD WASHER MOTOR SIDERubber,4x2000 |
MB084759 |
from US $19.84 |
||
|
84291
|
84291
MU670023 PLUG,CHASSIS FRAMERubber,20 |
MU670023 |
from US $2.16 |
||
|
84292
|
84292
MU431508 NUT, HEATER8 |
MU431508 |
from US $1.07 |
||
|
84295
|
84295
MB084419 JOINT, CHASSIS WIRING |
MB084419 |
from US $0.98 |
||
|
84295B
|
84295B
MB084833
JOINT, WINDSHIELD WASHER
|
MB084833 |
— | ||
| replacement | |||||
|
84295B
|
84295B
MB171570 JOINT, RR WINDOW WASHER |
MB171570 |
US $3.83 |
||
|
84295E
|
84295E
MB084833
JOINT, WINDSHIELD WASHER
|
MB084833 |
— | ||
| replacement | |||||
|
84295E
|
84295E
MB171570 JOINT, RR WINDOW WASHER |
MB171570 |
US $3.83 |
||
|
84296B
|
84296B
MU481216 CLIP, WINDSHIELD WASHER6 |
MU481216 |
US $5.06 |
||
|
84296C
|
84296C
MU481266 CLIP, WINDSHIELD WASHER14 |
MU481266 |
US $5.88 |
||
|
84298
|
84298
MS240145 BOLT, ENG CONTROL EQUIPWasher assembled,8x20 |
MS240145 |
from US $1.42 |
||
|
84442B
|
84442B
MB084759 TUBE, WINDSHIELD WASHER MOTOR SIDERubber,4x2000 |
MB084759 |
from US $19.84 |
||
|
