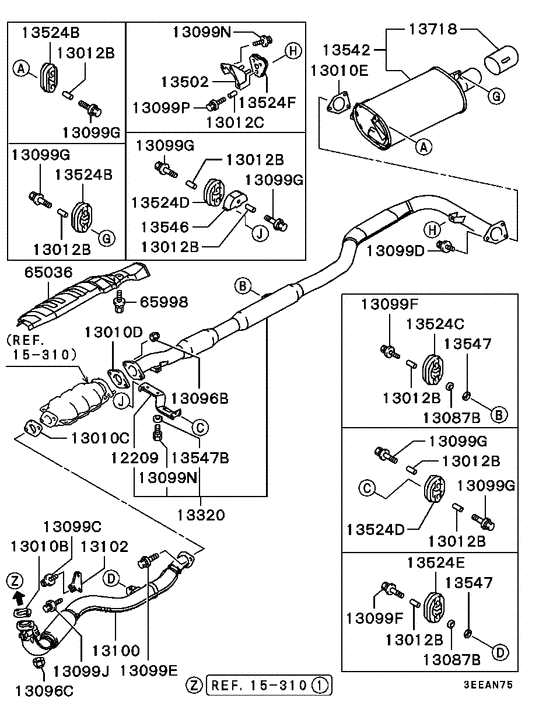

Exhaust pipe & muffler (ALL) Diagram Mitsubishi MIRAGE
- Year
- 1998 - 2000
- Sales region
- Japan
- Note
- EVO-5 RS(98M)/EVO-6 RS(99,00M),5M/T
- drive
- 4WD
- grade
- EVO-5 RS
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12209
|
12209
MR239706
BRACKET, UNDER CATALYTIC CONVERTER HANGER
|
MR239706 |
— | ||
|
13010B
|
13010B
MB687004 GASKET, EXHAUST PIPE |
MB687004 |
from US $7.18 |
||
|
13010C
|
13010C
MB687004 GASKET, EXHAUST PIPE |
MB687004 |
from US $7.18 |
||
|
13010D
|
13010D
MB687004 GASKET, EXHAUST PIPE |
MB687004 |
from US $7.18 |
||
|
13010E
|
13010E
MB687014 GASKET, EXHAUST PIPE |
MB687014 |
from US $6.59 |
||
|
13012B
|
13012B
MB514690 COLLAR, EXHAUST PIPE |
MB514690 |
from US $1.85 |
||
|
13012C
|
13012C
MB549177 COLLAR, EXHAUST PIPE |
MB549177 |
US $2.60 |
||
|
13087B
|
13087B
MF450154 WASHER, ENG FR MOUNTINGPlain,8 |
MF450154 |
from US $0.84 |
||
|
13096B
|
13096B
MB059359 NUT, CATALYTIC CONVERTERSelf locking,6t,12 |
MB059359 |
from US $1.66 |
||
|
13096B
|
13096B
MR571083 NUT, EXHAUST PIPE |
MR571083 |
from US $1.27 |
||
|
13096C
|
13096C
MB059359 NUT, CATALYTIC CONVERTERSelf locking,6t,12 |
MB059359 |
from US $1.66 |
||
|
13099C
|
13099C
MF247922 BOLT, LPG TANKWasher assembled,10x30 |
MF247922 |
from US $1.72 |
||
|
13099D
|
13099D
MF241286 BOLT, COOLING FANWasher assembled,10x35 |
MF241286 |
from US $1.07 |
||
|
13099E
|
13099E
MF241309 BOLT, ENG MOUNTINGWasher assembled,12x30 |
MF241309 |
from US $1.54 |
||
|
13099F
|
13099F
MF243660 BOLT, RADIATORWasher assembled,8x45 |
MF243660 |
from US $1.58 |
||
|
13099G
|
13099G
MF243659
BOLT, INTER COOLER
|
MF243659 |
— | ||
| replacement | |||||
|
13099G
|
13099G
MF244859 BOLT, A/C COMPRESSORWasher assembled,8x40 |
MF244859 |
from US $1.58 |
||
|
13099J
|
13099J
MF241278 BOLT, ENG MOUNTINGWasher assembled,10x16 |
MF241278 |
from US $1.15 |
||
|
13099N
|
13099N
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
||
|
13099P
|
13099P
MF243657 BOLT, TIMING POWER TRAIN CASEWasher assembled,8x35 |
MF243657 |
US $0.82 |
||
|
13100
|
13100
MR385762 PIPE, EXHAUST, FR |
MR385762 |
US $571.90 |
||
|
13102
|
13102
MR281367 BRACKET, EXHAUST FR PIPE |
MR281367 |
US $13.91 |
||
|
13320
|
13320
MR385773 PIPE, EXHAUST, CTR |
MR385773 |
US $544.86 |
||
|
13320
|
13320
MR514951
PIPE, EXHAUST, CTR
|
MR514951 |
— | ||
|
13502
|
13502
MR281002
BRACKET, EXHAUST MUFFLER HANGER
|
MR281002 |
— | ||
|
13524B
|
13524B
MB906121 HANGER, EXHAUST MUFFLER |
MB906121 |
US $7.39 |
||
|
13524C
|
13524C
MB059936
HANGER, EXHAUST MUFFLER
|
MB059936 |
— | ||
| replacement | |||||
|
13524C
|
13524C
MB906124 HANGER, EXHAUST MUFFLER |
MB906124 |
from US $10.02 |
||
|
13524D
|
13524D
MB906130
HANGER, EXHAUST MUFFLER
|
MB906130 |
— | ||
|
13524E
|
13524E
MB906129 HANGER, EXHAUST MUFFLER |
MB906129 |
US $16.42 |
||
|
13524F
|
13524F
MB651790 HANGER, EXHAUST MUFFLER |
MB651790 |
US $11.08 |
||
|
13542
|
13542
MR312195
MUFFLER, EXHAUST MAIN
|
MR312195 |
— | ||
|
13542
|
13542
MR514953
MUFFLER, EXHAUST MAIN
|
MR514953 |
— | ||
|
13546
|
13546
MR323472 PROTECTOR, EXHAUST MUFFLER HANGER |
MR323472 |
US $6.36 |
||
|
13547
|
13547
MB651931 SEAT, EXHAUST MUFFLER HANGER |
MB651931 |
from US $2.52 |
||
|
13547B
|
13547B
MB651931 SEAT, EXHAUST MUFFLER HANGER |
MB651931 |
from US $2.52 |
||
|
13718
|
13718
MR266880 DIFFUSER, EXHAUST TAIL PIPE |
MR266880 |
US $72.50 |
||
|
65036
|
65036
MR199086
PROTECTOR, UNDER FR FLOOR HEAT
|
MR199086 |
— | ||
|
65998
|
65998
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
