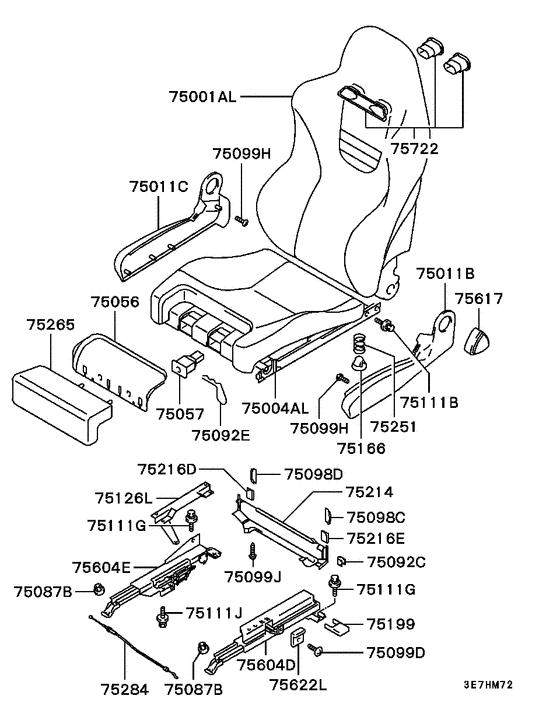

Front seat (LH..RECARO) Diagram Mitsubishi MIRAGE
- Year
- 1998 - 2000
- Sales region
- Japan
- Note
- EVO-5 RS(98M)/EVO-6 RS(99,00M),5M/T
- drive
- 4WD
- grade
- EVO-5 RS
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75001AL
|
75001AL
MR615314 BACK ASSY, FR SEAT, LH |
MR615314 |
US $679.95 |
||
|
75001AL
|
75001AL
MR788522 BACK ASSY, FR SEAT, LH |
MR788522 |
US $679.95 |
||
|
75004AL
|
75004AL
MR615282 CUSHION ASSY, FR SEAT, LH |
MR615282 |
US $679.95 |
||
|
75004AL
|
75004AL
MR788501 CUSHION ASSY, FR SEAT, LH |
MR788501 |
US $679.95 |
||
|
75087B
|
75087B
MU431010 NUT, FR SEATCap,washer assembled |
MU431010 |
US $2.60 |
||
|
75099D
|
75099D
MB410568 SCREW, FR SEAT4x6 |
MB410568 |
US $3.56 |
||
|
75099H
|
75099H
MR321549
SCREW, FR SEAT
|
MR321549 |
— | ||
|
75099J
|
75099J
MR347166 SCREW, FR SEAT |
MR347166 |
US $2.37 |
||
|
75111B
|
75111B
MR321553
BOLT, FR SEAT
|
MR321553 |
— | ||
|
75111G
|
75111G
MS240188 BOLT, FR BUMPERWasher assembled,10x30 |
MS240188 |
from US $1.44 |
||
|
75111G
|
75111G
MS240189 BOLT, BRAKE PEDALWasher assembled,10x25 |
MS240189 |
US $3.28 |
||
|
75111J
|
75111J
MR177389
BOLT, FR SEAT
|
MR177389 |
— | ||
|
75166
|
75166
MR433668 DAMPER, FR SEAT CUSHION |
MR433668 |
US $10.06 |
||
|
75199
|
75199
MB960263 COVER, FR SEAT ANCHOR |
MB960263 |
US $3.83 |
||
|
75284
|
75284
MB874502 WIRE, FR SEAT |
MB874502 |
US $4 |
||
|
75604D
|
75604D
MB874481 ADJUSTER, FR SEAT SLIDE |
MB874481 |
US $96.20 |
||
|
75604E
|
75604E
MR219697 ADJUSTER, FR SEAT SLIDE |
MR219697 |
US $77.70 |
||
|
75622L
|
75622L
MB728415
KNOB, FR SEAT SLIDE ADJUSTER, LH
|
MB728415 |
— |
