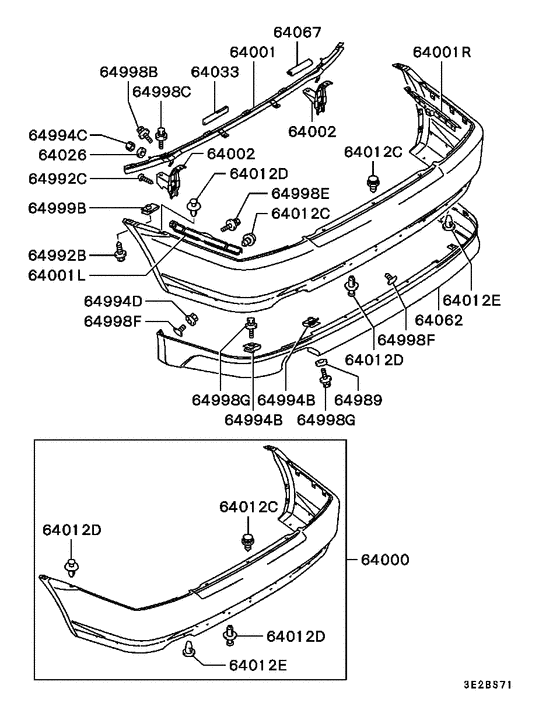

Rear bumper & support (ALL) Diagram Mitsubishi MIRAGE
- Year
- 1998 - 2000
- Sales region
- Japan
- Note
- EVO-5 RS(98M)/EVO-6 RS(99,00M),5M/T
- drive
- 4WD
- grade
- EVO-5 RS
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
64000
|
64000
MR414867
FACE KIT, RR BUMPER
|
MR414867 |
— | ||
| replacement | |||||
|
64000
|
64000
MR566757 FACE KIT, RR BUMPERSUPPLIED BY COLORLESSNESS |
MR566757 |
US $588.12 |
||
|
64000
|
64000
MR414868 FACE KIT, RR BUMPER |
MR414868 |
US $822.64 |
||
|
64000
|
64000
MR414869 FACE KIT, RR BUMPER |
MR414869 |
US $822.64 |
||
|
64000
|
64000
MR414870 FACE KIT, RR BUMPER |
MR414870 |
US $822.64 |
||
|
64000
|
64000
MR414871 FACE KIT, RR BUMPER |
MR414871 |
US $822.64 |
||
|
64000
|
64000
MR414872 FACE KIT, RR BUMPER |
MR414872 |
US $822.64 |
||
|
64000
|
64000
MR414873 FACE KIT, RR BUMPER |
MR414873 |
US $822.64 |
||
|
64000
|
64000
MR414874 FACE KIT, RR BUMPER |
MR414874 |
US $822.64 |
||
|
64000
|
64000
MR414875 FACE KIT, RR BUMPER |
MR414875 |
US $822.64 |
||
|
64000
|
64000
MR414876 FACE KIT, RR BUMPER |
MR414876 |
US $822.64 |
||
|
64000
|
64000
MR414951 FACE KIT, RR BUMPER |
MR414951 |
US $822.64 |
||
|
64000
|
64000
MR414952 FACE KIT, RR BUMPER |
MR414952 |
US $822.64 |
||
|
64000
|
64000
MR485427 FACE KIT, RR BUMPER |
MR485427 |
US $822.64 |
||
|
64000
|
64000
MR485428 FACE KIT, RR BUMPER |
MR485428 |
US $822.64 |
||
|
64001
|
64001
MR184474 REINFORCEMENT, RR BUMPER |
MR184474 |
from US $95.76 |
||
|
64001L
|
64001L
MR435833 REINFORCEMENT, RR BUMPER, LH |
MR435833 |
US $30.10 |
||
|
64001R
|
64001R
MR435834 REINFORCEMENT, RR BUMPER, RH |
MR435834 |
US $30.10 |
||
|
64002
|
64002
MR396443 BRACKET, RR BUMPER |
MR396443 |
US $26.68 |
||
|
64012C
|
64012C
MR200300 CLIP, FR BUMPER |
MR200300 |
from US $1.37 |
||
|
64012D
|
64012D
MR288150 CLIP, RR BUMPER |
MR288150 |
from US $0.99 |
||
|
64012E
|
64012E
MB253964 CLIP, FR BUMPER |
MB253964 |
from US $1.52 |
||
|
64026
|
64026
MA156028 GASKET, FR BUMPER25 |
MA156028 |
US $4.38 |
||
|
64033
|
64033
MB575769
PAD, FR BUMPER FACE
|
MB575769 |
— | ||
| replacement | |||||
|
64033
|
64033
MB575768 PAD, FR BUMPER FACE470 |
MB575768 |
US $6.70 |
||
|
64062
|
64062
MR603138
AIR DAM, RR BUMPER
|
MR603138 |
— | ||
|
64062
|
64062
MR788446 AIR DAM, RR BUMPER |
MR788446 |
US $738.19 |
||
|
64062
|
64062
MR788447 AIR DAM, RR BUMPER |
MR788447 |
US $675.58 |
||
|
64062
|
64062
MR788448 AIR DAM, RR BUMPER |
MR788448 |
US $675.58 |
||
|
64062
|
64062
MR788449 AIR DAM, RR BUMPER |
MR788449 |
US $675.58 |
||
|
64062
|
64062
MR788450 AIR DAM, RR BUMPER |
MR788450 |
US $675.58 |
||
|
64062
|
64062
MR789692 AIR DAM, RR BUMPER |
MR789692 |
US $675.58 |
||
|
64067
|
64067
MB851069 TRIM, RR BUMPER |
MB851069 |
US $5.06 |
||
|
64989
|
64989
MF450194 WASHER, CRANK ANGLE SENSORPlain,8 |
MF450194 |
US $2.60 |
||
|
64992B
|
64992B
MS452388 SCREW, SPLASH SHIELDTapping washer assembled,6x25 |
MS452388 |
from US $3.26 |
||
|
64992C
|
64992C
MF453107 SCREW, FUEL FILLER LID LOCKINGTapping,6x16 |
MF453107 |
from US $0.51 |
||
|
64994B
|
64994B
MU440009 NUT, RR BUMPERSpring,6 |
MU440009 |
from US $1.68 |
||
|
64994C
|
64994C
MS440522 NUT, FUEL TANKWasher assembled,6 |
MS440522 |
from US $0.96 |
||
|
64994D
|
64994D
MS440542 NUT, AIR CLEANERWasher assembled,6 |
MS440542 |
US $4.10 |
||
|
64998B
|
64998B
MS240141 BOLT, FUEL FILLER LID PANELWasher assembled,6x16 |
MS240141 |
from US $1.25 |
||
|
64998C
|
64998C
MS240129 BOLT, FUEL TANKWasher assembled,10x25 |
MS240129 |
US $3.01 |
||
|
64998E
|
64998E
MB612553 BOLT, RR BUMPERWasher assembled,6x16 |
MB612553 |
from US $1.74 |
||
|
64998F
|
64998F
MB908442 BOLT, FR BUMPER6x13 |
MB908442 |
from US $1.07 |
||
|
64998G
|
64998G
MS240143 BOLT, FUEL LINEWasher assembled,6x25 |
MS240143 |
US $3.83 |
||
|
64998G
|
64998G
MS240603 BOLT, RR BUMPERWasher assembled,6x25 |
MS240603 |
US $2.74 |
||
|
64999B
|
64999B
MB481588 GROMMET, FR BUMPERScrew .,6 |
MB481588 |
from US $2.07 |
||
