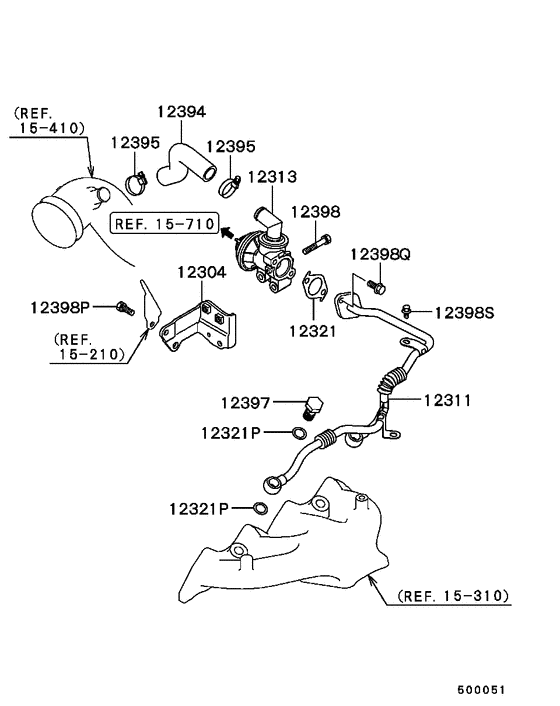

Secondary air supply (ALL) Diagram Mitsubishi MIRAGE
- Year
- 1998 - 2000
- Sales region
- Japan
- Note
- EVO-5 RS(98M)/EVO-6 RS(99,00M),5M/T
- drive
- 4WD
- grade
- EVO-5 RS
- body
- SEDAN
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12304
|
12304
MR299510
BRACKET, SECONDARY AIR REED VALVE
|
MR299510 |
— | ||
|
12311
|
12311
MR340120
PIPE, SECONDARY AIR
|
MR340120 |
— | ||
|
12311
|
12311
MR464971 PIPE, SECONDARY AIR |
MR464971 |
US $91.66 |
||
|
12313
|
12313
MR340128 VALVE, SECONDARY AIR REED |
MR340128 |
US $165.76 |
||
|
12321
|
12321
MR340129 GASKET, SECONDARY AIR SUPPLY |
MR340129 |
US $8.07 |
||
|
12321P
|
12321P
MR281387 GASKET, SECONDARY AIR SUPPLY |
MR281387 |
US $9.17 |
||
|
12394
|
12394
MR323412
HOSE, SECONDARY AIR SUPPLY
|
MR323412 |
— | ||
|
12395
|
12395
MR340340 CLIP, SECONDARY AIR SUPPLY32 |
MR340340 |
US $12.45 |
||
|
12397
|
12397
MR312702 EYEBOLT, SECONDARY AIR SUPPLY24x29 |
MR312702 |
US $28.73 |
||
|
12398
|
12398
MF241262 BOLT, ENG RH COVERWasher assembled,8x45 |
MF241262 |
US $4.10 |
||
|
12398P
|
12398P
MF241253 BOLT, CRANKCASEWasher assembled,8x20 |
MF241253 |
from US $1.01 |
||
|
12398Q
|
12398Q
MF140226 BOLT, ENG OIL PANFlange,8x22 |
MF140226 |
from US $1.31 |
||
|
12398S
|
12398S
MF140203 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140203 |
from US $0.78 |
||
|
