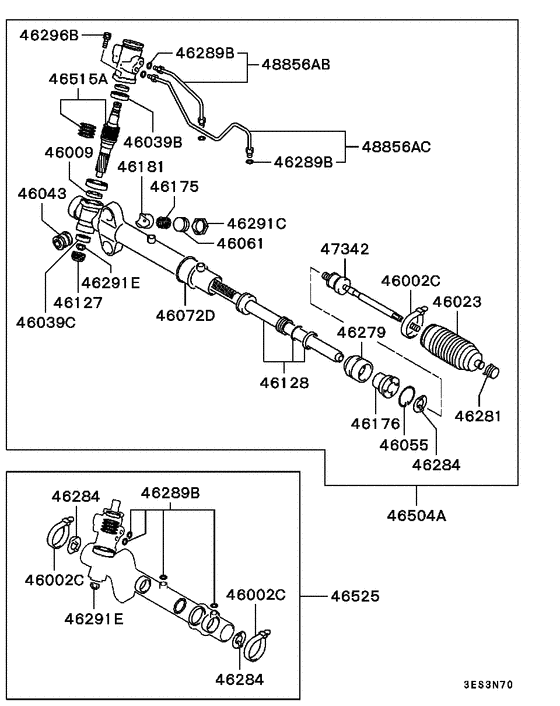

Steering gear (P/S DISASSEMBLED PARTS) Diagram Mitsubishi MIRAGE
- Year
- 1998 - 2000
- Sales region
- Japan
- Note
- EVO-5 RS(98M)/EVO-6 RS(99,00M),5M/T
- drive
- 4WD
- grade
- EVO-5 RS
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46002C
|
46002C
MR129864 BAND, STEERING GEAR |
MR129864 |
US $10.67 |
||
|
46009
|
46009
MB815379 BEARING, STEERING GEAR PINION SHAFT, UPR |
MB815379 |
from US $12.50 |
||
|
46023
|
46023
MB350581
BELLOWS, STEERING GEAR
|
MB350581 |
— | ||
| replacement | |||||
|
46023
|
46023
MB501711 BELLOWS, STEERING GEAR |
MB501711 |
from US $29.11 |
||
|
46039B
|
46039B
MB636916 BEARING, STEERING GEAR PINION |
MB636916 |
US $21.89 |
||
|
46039C
|
46039C
MB870071 BEARING, STEERING GEAR PINION |
MB870071 |
US $19.15 |
||
|
46043
|
46043
MR223335 BUSHING, STEERING GEAR |
MR223335 |
from US $7.10 |
||
|
46043
|
46043
MR223364
BUSHING, STEERING GEAR
|
MR223364 |
— | ||
|
46055
|
46055
MB350576 CLIP, STEERING GEAR PISTON |
MB350576 |
US $7.11 |
||
|
46061
|
46061
MR333165 COVER, STEERING GEAR RACK SUPPORT |
MR333165 |
US $7.66 |
||
|
46072D
|
46072D
MR333411
CUSHION, STEERING GEAR
|
MR333411 |
— | ||
|
46127
|
46127
MB243336 PLUG, STEERING GEAR |
MB243336 |
US $15.54 |
||
|
46128
|
46128
MR455051
RACK, STEERING GEAR
|
MR455051 |
— | ||
|
46175
|
46175
MB553048 SPRING, STEERING GEAR RACK SUPPORT |
MB553048 |
US $6.07 |
||
|
46176
|
46176
MR333408
STOPPER, STEERING GEAR RACK
|
MR333408 |
— | ||
|
46181
|
46181
MB501955 SUPPORT, STEERING GEAR RACK |
MB501955 |
US $19.24 |
||
|
46279
|
46279
MR333406
BUSHING, STEERING GEAR INR
|
MR333406 |
— | ||
|
46281
|
46281
MS660165 CLIP, ROCKER COVERD=14.8 |
MS660165 |
from US $1.72 |
||
|
46284
|
46284
MB266164 WASHER, STEERING GEAR |
MB266164 |
from US $6.49 |
||
|
46289B
|
46289B
MB910963
O-RING, STEERING GEAR INR
|
MB910963 |
— | ||
| replacement | |||||
|
46289B
|
46289B
MB844980 O-RING, STEERING GEAR INR |
MB844980 |
US $3.83 |
||
|
46291C
|
46291C
MB501022 NUT, STEERING GEAR |
MB501022 |
US $5.92 |
||
|
46291E
|
46291E
MB243335 NUT, STEERING GEAR |
MB243335 |
US $5.47 |
||
|
46296B
|
46296B
MF140425 BOLT, ENG MOUNTINGFlange,8x20 |
MF140425 |
US $2.07 |
||
|
46504A
|
46504A
MR333426
GEAR & LINK ASSY, P/S
|
MR333426 |
— | ||
|
46504A
|
46504A
MR333427
GEAR & LINK ASSY, P/S (RHD)
|
MR333427 |
— | ||
|
46515A
|
46515A
MR455054 PINION & VALVE ASSY, P/S |
MR455054 |
US $735.28 |
||
|
46515A
|
46515A
MR455055 PINION & VALVE ASSY, P/S |
MR455055 |
US $713.44 |
||
|
46525
|
46525
MR455061
SEAL KIT, P/S GEAR
|
MR455061 |
— | ||
|
47342
|
47342
MR455058 TIE ROD, STEERING |
MR455058 |
US $138.17 |
||
|
48856AB
|
48856AB
MR455059 TUBE ASSY, P/S OIL FEED |
MR455059 |
US $84.36 |
||
|
48856AC
|
48856AC
MR455060 TUBE ASSY, P/S OIL FEED |
MR455060 |
US $105.08 |
||
