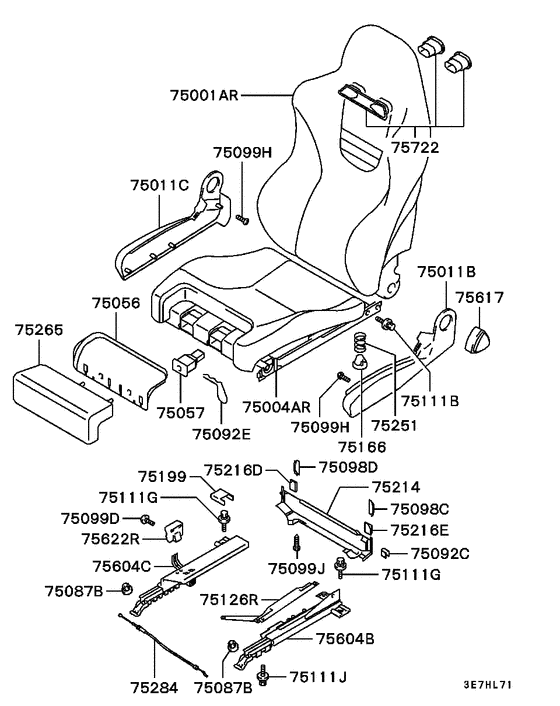

Front seat (RH..RECARO) Diagram Mitsubishi MIRAGE
- Year
- 1998 - 2000
- Sales region
- Japan
- Note
- EVO-5 GSR(98M)/EVO-6 GSR(99,00M),5M/T
- drive
- 4WD
- grade
- EVO-5 GSR
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75001AR
|
75001AR
MR603109
BACK ASSY, FR SEAT, LH
|
MR603109 |
— | ||
|
75001AR
|
75001AR
MR615317
BACK ASSY, FR SEAT, LH
|
MR615317 |
— | ||
|
75001AR
|
75001AR
MR798297
BACK ASSY, FR SEAT, LH
|
MR798297 |
— | ||
|
75004AR
|
75004AR
MR603105
CUSHION ASSY, FR SEAT, LH
|
MR603105 |
— | ||
|
75004AR
|
75004AR
MR615286 CUSHION ASSY, FR SEAT, LH |
MR615286 |
US $2,160 |
||
|
75004AR
|
75004AR
MR798294 CUSHION ASSY, FR SEAT, LH |
MR798294 |
US $2,160 |
||
|
75011B
|
75011B
MR457043 SHIELD, FR SEAT CUSHION |
MR457043 |
US $91.02 |
||
|
75011C
|
75011C
MR457044
SHIELD, FR SEAT CUSHION
|
MR457044 |
— | ||
|
75056
|
75056
MR433669 PLATE, FR SEAT THIGH SUPPORT |
MR433669 |
US $84.36 |
||
|
75057
|
75057
MR433665 GUIDE, FR SEAT THIGH SUPPORT |
MR433665 |
US $31.82 |
||
|
75087B
|
75087B
MU431010 NUT, FR SEATCap,washer assembled |
MU431010 |
US $2.60 |
||
|
75092C
|
75092C
MR321551
CLIP, FR SEAT
|
MR321551 |
— | ||
|
75092E
|
75092E
MR433666 CLIP, FR SEAT |
MR433666 |
US $13.47 |
||
|
75098C
|
75098C
MR433671 CAP, FR SEAT |
MR433671 |
US $5.03 |
||
|
75098D
|
75098D
MR433670 CAP, FR SEAT |
MR433670 |
US $5.03 |
||
|
75099D
|
75099D
MB410568 SCREW, FR SEAT4x6 |
MB410568 |
US $3.56 |
||
|
75099H
|
75099H
MR321549
SCREW, FR SEAT
|
MR321549 |
— | ||
|
75099J
|
75099J
MR347166 SCREW, FR SEAT |
MR347166 |
US $2.37 |
||
|
75111B
|
75111B
MR321553
BOLT, FR SEAT
|
MR321553 |
— | ||
|
75111G
|
75111G
MS240188 BOLT, FR BUMPERWasher assembled,10x30 |
MS240188 |
from US $1.44 |
||
|
75111G
|
75111G
MS240189 BOLT, BRAKE PEDALWasher assembled,10x25 |
MS240189 |
US $3.28 |
||
|
75111J
|
75111J
MR177389
BOLT, FR SEAT
|
MR177389 |
— | ||
|
75126R
|
75126R
MR378908
BRACKET, FR SEAT SLIDE RAIL, RH
|
MR378908 |
— | ||
|
75166
|
75166
MR433668 DAMPER, FR SEAT CUSHION |
MR433668 |
US $10.06 |
||
|
75199
|
75199
MB960263 COVER, FR SEAT ANCHOR |
MB960263 |
US $3.83 |
||
|
75214
|
75214
MR433678 PROTECTOR, FR SEAT FRAME |
MR433678 |
US $62.16 |
||
|
75216D
|
75216D
MR433677 PROTECTOR, FR SEAT HINGE |
MR433677 |
US $5.62 |
||
|
75216E
|
75216E
MR433676 PROTECTOR, FR SEAT HINGE |
MR433676 |
US $5.62 |
||
|
75251
|
75251
MR433667 SPRING, FR SEAT |
MR433667 |
US $12.88 |
||
|
75265
|
75265
MR603104 SUPPORT, FR SEAT CUSHION THIGH |
MR603104 |
US $777.50 |
||
|
75265
|
75265
MR615285 SUPPORT, FR SEAT CUSHION THIGH |
MR615285 |
US $777.50 |
||
|
75265
|
75265
MR798293 SUPPORT, FR SEAT CUSHION THIGH |
MR798293 |
US $777.50 |
||
|
75284
|
75284
MR395590
WIRE, FR SEAT
|
MR395590 |
— | ||
|
75604B
|
75604B
MR378700
ADJUSTER, FR SEAT SLIDE
|
MR378700 |
— | ||
|
75604C
|
75604C
MR378702
ADJUSTER, FR SEAT SLIDE
|
MR378702 |
— | ||
|
75617
|
75617
MR457047
KNOB, FR SEAT RECLINING ADJUSTER
|
MR457047 |
— | ||
|
75622R
|
75622R
MB728419 KNOB, FR SEAT SLIDE ADJUSTER, RH |
MB728419 |
US $14.36 |
||
|
75722
|
75722
MR433673
GUIDE, FR SEAT BELT
|
MR433673 |
— |
