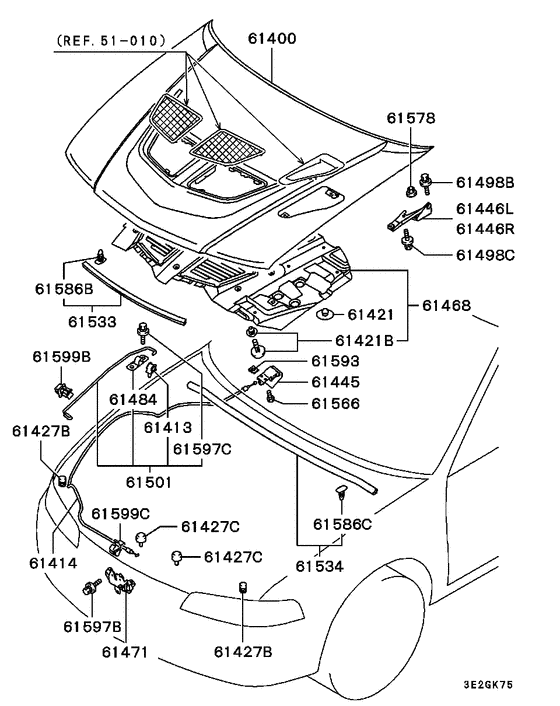

Hood & lock (ALL) Diagram Mitsubishi MIRAGE
- Year
- 1998 - 2000
- Sales region
- Japan
- Note
- EVO-5 GSR(98M)/EVO-6 GSR(99,00M),5M/T
- drive
- 4WD
- grade
- EVO-5 GSR
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61400
|
61400
MR414300
HOOD
|
MR414300 |
— | ||
|
61413
|
61413
MB830953 BUSHING, HOOD LOCKING |
MB830953 |
US $3.28 |
||
|
61414
|
61414
MR186450 CABLE, HOOD LOCK RELEASE |
MR186450 |
US $32.15 |
||
|
61421
|
61421
MU481187 CLIP, HOOD INSULATOR |
MU481187 |
from US $0.88 |
||
|
61421B
|
61421B
MR288876 CLIP, HOOD AIR GARNISH |
MR288876 |
from US $2.48 |
||
|
61427B
|
61427B
MB270408 DAMPER, HOOD** |
MB270408 |
from US $2.93 |
||
|
61427B
|
61427B
MR473471 DAMPER, HOOD** |
MR473471 |
from US $3.96 |
||
|
61427C
|
61427C
MR288769 DAMPER, HOOD |
MR288769 |
from US $1.03 |
||
|
61445
|
61445
MR734393 HANDLE, HOOD LOCK RELEASE |
MR734393 |
US $12.72 |
||
|
61446L
|
61446L
MB926917
HINGE, HOOD, LH
|
MB926917 |
— | ||
|
61446R
|
61446R
MB926918
HINGE, HOOD, RH
|
MB926918 |
— | ||
|
61468
|
61468
MR412241 INSULATOR, HOOD |
MR412241 |
US $196.99 |
||
|
61471
|
61471
MR328701 LATCH, HOOD |
MR328701 |
US $48.56 |
||
|
61484
|
61484
MR349476 PLATE, HOOD LOCK |
MR349476 |
US $3.97 |
||
|
61498B
|
61498B
MB142761 BOLT, FR SUSP STABILIZERWasher assembled,8x25 |
MB142761 |
from US $1.44 |
||
|
61498C
|
61498C
MU240012
BOLT, BODY LOOSE PANEL
|
MU240012 |
— | ||
| replacement | |||||
|
61498C
|
61498C
MS240126 BOLT, RADIATOR CONDENSER TANKWasher assembled,8x25 |
MS240126 |
from US $1.07 |
||
|
61501
|
61501
MR186309 ROD, HOOD SUPPORT |
MR186309 |
US $22.57 |
||
|
61533
|
61533
MR286902
WEATHERSTRIP, HOOD, FR
|
MR286902 |
— | ||
|
61533
|
61533
MR503134 WEATHERSTRIP, HOOD, FR |
MR503134 |
US $16.42 |
||
|
61533
|
61533
MR503825
WEATHERSTRIP, HOOD, FR
|
MR503825 |
— | ||
|
61534
|
61534
MR280225 WEATHERSTRIP, HOOD, RR |
MR280225 |
US $20.52 |
||
|
61566
|
61566
MF453031 SCREW 5x12Tapping,5x12 |
MF453031 |
from US $1.50 |
||
|
61566
|
61566
MF453033 SCREW, TAPPING, 5x16Tapping,5x16 |
MF453033 |
from US $1.66 |
||
|
61578
|
61578
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
61586B
|
61586B
MB105489 CLIP, HOOD5.2 |
MB105489 |
US $4.10 |
||
|
61586B
|
61586B
MU481027 CLIP, HOOD5.3 |
MU481027 |
from US $1.11 |
||
|
61586C
|
61586C
MU481027 CLIP, HOOD5.3 |
MU481027 |
from US $1.11 |
||
|
61593
|
61593
MB135995 NUT, FUEL FILLER LID LOCKINGSpring,5 |
MB135995 |
from US $1.72 |
||
|
61597B
|
61597B
MS240683 BOLT, FR DOOR LOCKINGWasher assembled,6x16 |
MS240683 |
US $2.19 |
||
|
61597C
|
61597C
MS240391 BOLT, CRUISE CONTROL ELECTRICALSWasher assembled,6x16 |
MS240391 |
US $3.01 |
||
|
61599B
|
61599B
MB889049 CLIP, HOOD LOCKING |
MB889049 |
from US $1.05 |
||
|
61599C
|
61599C
MU481269 CLIP, HOOD LOCKING |
MU481269 |
from US $1.17 |
||
