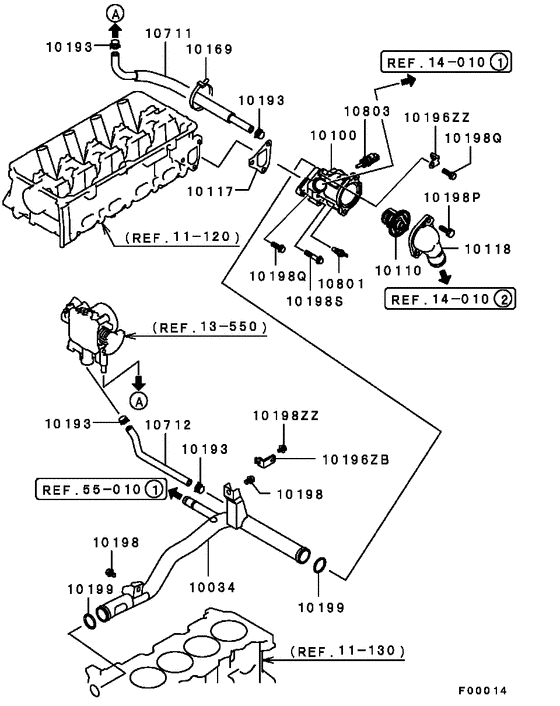

Water pipe & thermostat (0002.1-) Diagram Mitsubishi MIRAGE DINGO
- Year
- 1999 - 2002
- Sales region
- Japan
- Note
- X,POP(01M-),4CA/T
- transmission
- 4CA/T
- grade
- X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
10034
|
10034
MD356315
PIPE, WATER PUMP INLET
|
MD356315 |
— | ||
|
10100
|
10100
MD358257 CASE, THERMOSTAT |
MD358257 |
from US $109.44 |
||
|
10110
|
10110
MD337408 THERMOSTAT KIT82 |
MD337408 |
from US $15.58 |
||
|
10117
|
10117
MD324702 GASKET, THERMOSTAT CASE |
MD324702 |
from US $1.89 |
||
|
10118
|
10118
MD312328 FITTING, COOLING WATER INLET HOSE |
MD312328 |
from US $38.30 |
||
|
10169
|
10169
MB249339 BAND, ENG BREATHERL=169.5 |
MB249339 |
from US $1.95 |
||
|
10193
|
10193
MS660240 CLIP, ROCKER COVERD=13.1 |
MS660240 |
from US $0.86 |
||
|
10196ZB
|
10196ZB
MD346638 BRACKET, P/S OIL PUMP |
MD346638 |
US $4.14 |
||
|
10196ZZ
|
10196ZZ
MD346548 BRACKET, COOLING WATER LINE |
MD346548 |
US $4.14 |
||
|
10198
|
10198
MF140021 BOLT, ACCEL CABLE SUPPORTFlange,8x12 |
MF140021 |
from US $0.43 |
||
|
10198P
|
10198P
MF241255 BOLT, CYLINDER HEADWasher assembled,8x25 |
MF241255 |
from US $1.11 |
||
|
10198Q
|
10198Q
MF140227 BOLT, ROCKER COVERFlange,8x25 |
MF140227 |
from US $0.96 |
||
|
10198S
|
10198S
MF140233 BOLT, ENG FR CASEFlange,8x40 |
MF140233 |
from US $1.07 |
||
|
10198ZZ
|
10198ZZ
MF140202 BOLT, FLANGE (6x10)Flange,6x10 |
MF140202 |
from US $1.66 |
||
|
10199
|
10199
MD145371 O-RING, COOLING WATER LINE29 |
MD145371 |
from US $3.10 |
||
|
10711
|
10711
MD372110 HOSE, THROTTLE BODY WATER FEED |
MD372110 |
US $26.64 |
||
|
10712
|
10712
MD372354 HOSE, THROTTLE BODY WATER RETURN |
MD372354 |
US $14.65 |
||
|
10801
|
10801
MD091056 GAUGE UNIT, WATER TEMPERATURE |
MD091056 |
from US $33.01 |
||
|
10803
|
10803
MD177572
SENSOR UNIT, WATER TEMPERATURE
|
MD177572 |
— | ||
| replacement | |||||
|
10803
|
10803
1308A012 SENSOR UNIT, WATER TEMPERATURE |
1308A012 |
from US $29.64 |
||
|
