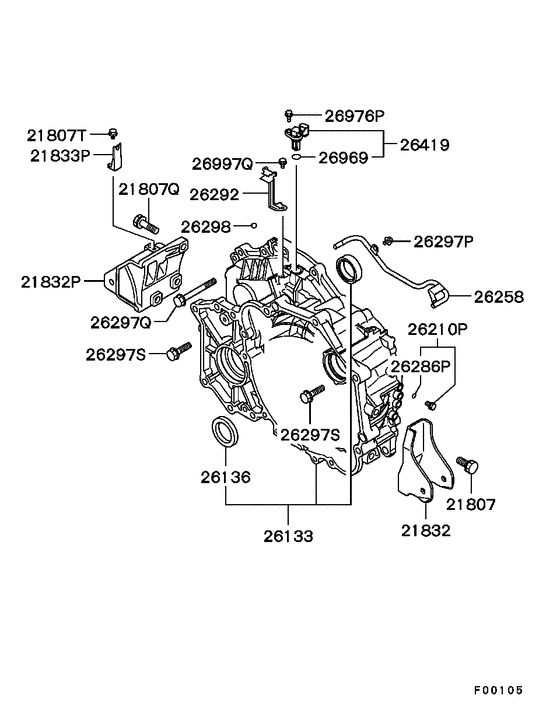

A/t case (CVT..4WD (CONVERTER HOUSING)) Diagram Mitsubishi MIRAGE DINGO
- Year
- 2002
- Sales region
- Japan
- Note
- TEDDY BEAR EDITION 4WD,CVT
- drive
- 4WD
- transmission
- CVT
- grade
- TEDDY BEAR EDIT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21807
|
21807
MF241308 BOLT, A/T CASEWasher assembled,12x28 |
MF241308 |
from US $2.55 |
||
|
21807Q
|
21807Q
MF241313 BOLT, T/F CASEWasher assembled,12x40 |
MF241313 |
from US $2.03 |
||
|
21807T
|
21807T
MF140202 BOLT, FLANGE (6x10)Flange,6x10 |
MF140202 |
from US $1.66 |
||
|
21832
|
21832
MD759723 BRACKET, T/M CASE ROLL STOPPER |
MD759723 |
US $33.52 |
||
|
21832
|
21832
MD761073 BRACKET, T/M CASE ROLL STOPPER |
MD761073 |
US $31.08 |
||
|
21832P
|
21832P
MR453939 BRACKET, T/M CASE ROLL STOPPER |
MR453939 |
US $113.96 |
||
|
21832P
|
21832P
MR567632 BRACKET, T/M CASE ROLL STOPPER |
MR567632 |
US $85.10 |
||
|
21833P
|
21833P
MR453246 BRACKET, T/M ROLL STOPPER BRACKET TUBE CLAMP |
MR453246 |
US $2.22 |
||
|
26133
|
26133
MR446809 HOUSING, A/T TORQUE CONVERTER |
MR446809 |
US $511.06 |
||
|
26133
|
26133
MR983697 HOUSING, A/T TORQUE CONVERTER |
MR983697 |
US $511.06 |
||
|
26136
|
26136
MD707575 OIL SEAL, A/T OIL PUMP BODY |
MD707575 |
from US $10.51 |
||
| replacement | |||||
|
26136
|
26136
MR967673 OIL SEAL, A/T CONVERTER HOUSING |
MR967673 |
from US $8.29 |
||
|
26210P
|
26210P
MR483866 PLUG KIT, A/T CASE |
MR483866 |
US $4.44 |
||
|
26210P
|
26210P
MR593251 PLUG KIT, A/T CASE |
MR593251 |
US $6.81 |
||
|
26258
|
26258
MR553764 PIPE, A/T SECONDARY SHAFT OIL FEED |
MR553764 |
US $7.10 |
||
|
26286P
|
26286P
MD707200
O-RING, OIL FILTER
|
MD707200 |
— | ||
| replacement | |||||
|
26286P
|
26286P
MR486844 O-RING, A/T CASE9.8 |
MR486844 |
from US $1.25 |
||
|
26286P
|
26286P
MR483867 O-RING, A/T CASE6.8 |
MR483867 |
US $2.46 |
||
|
26292
|
26292
MR967013 CLAMP, A/T CASE |
MR967013 |
US $7.99 |
||
|
26297P
|
26297P
MF140202 BOLT, FLANGE (6x10)Flange,6x10 |
MF140202 |
from US $1.66 |
||
|
26297P
|
26297P
MF140264 BOLT, ENG RR PLATEFlange,10x35 |
MF140264 |
US $3.28 |
||
|
26297P
|
26297P
MF140722 BOLT, ACCEL CABLE SUPPORTFlange,6x10 |
MF140722 |
US $3.28 |
||
|
26297Q
|
26297Q
MF140266 BOLT, TIMING BELT TRAINFlange,10x40 |
MF140266 |
from US $1.48 |
||
|
26297Q
|
26297Q
MF140276 BOLT, T/M CONNECTINGFlange,10x90 |
MF140276 |
US $4.10 |
||
|
26297Q
|
26297Q
MU000415 BOLT, A/T CASE |
MU000415 |
US $6.22 |
||
|
26297S
|
26297S
MD759832 BOLT, A/T CASESeal,8x20 |
MD759832 |
US $2.37 |
||
|
26297S
|
26297S
MF140266 BOLT, TIMING BELT TRAINFlange,10x40 |
MF140266 |
from US $1.48 |
||
|
26297S
|
26297S
MR553872 BOLT, A/T CASEFlange,8x21 |
MR553872 |
US $1.63 |
||
|
26297S
|
26297S
MU000308 BOLT, A/T CASEFlange,10x40 |
MU000308 |
US $3.40 |
||
|
26298
|
26298
MF540009 BALL, CYLINDER HEAD9/32 |
MF540009 |
US $1.37 |
||
|
26419
|
26419
MR331743 SENSOR, A/T SPEED |
MR331743 |
US $116.92 |
||
| replacement | |||||
|
26419
|
26419
8651A111
SENSOR, A/T SPEED
|
8651A111 |
— | ||
|
26419
|
26419
MR567292
SENSOR, A/T SPEED
|
MR567292 |
— | ||
| replacement | |||||
|
26419
|
26419
8651A027 SENSOR, A/T SPEED |
8651A027 |
from US $83.83 |
||
|
26969
|
26969
MD622021 O-RING, A/T CASE |
MD622021 |
from US $1.97 |
||
|
26969
|
26969
MR498157 O-RING, A/T CONTROL EQUIP |
MR498157 |
US $2.66 |
||
|
26976P
|
26976P
MF140204 BOLT, ACCEL CABLE SUPPORTFlange,6x14 |
MF140204 |
from US $0.80 |
||
|
26976P
|
26976P
MF140724 BOLT, ACCEL CABLE SUPPORTFlange,6x14 |
MF140724 |
US $3.28 |
||
|
26997Q
|
26997Q
MF140202 BOLT, FLANGE (6x10)Flange,6x10 |
MF140202 |
from US $1.66 |
||
