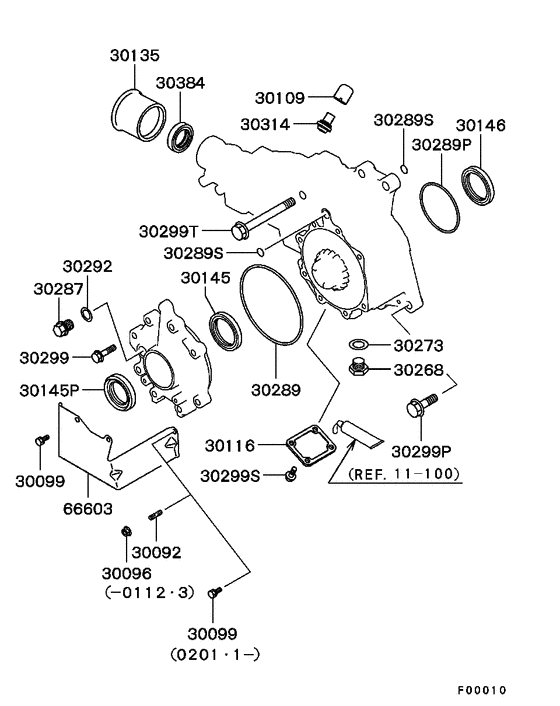

Transfer case (9912.3-) Diagram Mitsubishi MIRAGE DINGO
- Year
- 2002
- Sales region
- Japan
- Note
- TEDDY BEAR EDITION 4WD,CVT
- drive
- 4WD
- transmission
- CVT
- grade
- TEDDY BEAR EDIT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30092
|
30092
MS401400 STUD, INLET MANIFOLD6x12 |
MS401400 |
US $2.66 |
||
|
30099
|
30099
MF241224 BOLT, CYLINDER HEADWasher assembled,6x14 |
MF241224 |
from US $0.78 |
||
|
30109
|
30109
MB393232 COVER, RR AXLE HOUSING BREATHER PLUG |
MB393232 |
from US $3.14 |
||
|
30116
|
30116
MR498436 COVER, T/F CASE, UPR |
MR498436 |
US $9.03 |
||
|
30116
|
30116
MR980580 COVER, T/F CASE, UPR |
MR980580 |
US $9.30 |
||
|
30135
|
30135
MD724190 GUARD, T/F EXTENSION HOUSING DUST SEAL |
MD724190 |
US $42.41 |
||
|
30145
|
30145
MD747546 OIL SEAL, T/F CASE COVER, FR |
MD747546 |
from US $13.51 |
||
|
30145P
|
30145P
MD755526 OIL SEAL,RR DIFF SIDE BEARING,RH |
MD755526 |
from US $4.41 |
||
|
30146
|
30146
MD747546 OIL SEAL, T/F CASE COVER, FR |
MD747546 |
from US $13.51 |
||
|
30268
|
30268
MB001293
PLUG, M/T CASE
|
MB001293 |
— | ||
| replacement | |||||
|
30268
|
30268
MB001265 PLUG KIT, RR AXLE HOUSING |
MB001265 |
from US $4.49 |
||
|
30273
|
30273
MD000312 GASKET, PLUGD=18.2 |
MD000312 |
from US $1.31 |
||
|
30287
|
30287
MD701850 PLUG, M/T CASE16 |
MD701850 |
from US $4.13 |
||
|
30289
|
30289
MR430151 O-RING, T/F CASE136 |
MR430151 |
US $28.73 |
||
|
30289P
|
30289P
MR430163 O-RING, T/F CASE71 |
MR430163 |
US $3.55 |
||
|
30289S
|
30289S
MD743612 O-RING, T/F CASE11 |
MD743612 |
from US $2.34 |
||
|
30292
|
30292
MF660036 GASKET, ACCEL CONTROL EQUIPD=16 |
MF660036 |
from US $0.76 |
||
|
30299
|
30299
MF140231 BOLT, CYLINDER HEADFlange,8x35 |
MF140231 |
from US $1.58 |
||
|
30299P
|
30299P
MF140289 BOLT, COOLING FANFlange,12x40 |
MF140289 |
US $2.33 |
||
|
30299S
|
30299S
MF140203 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140203 |
from US $0.78 |
||
|
30299T
|
30299T
MS101368 BOLT, T/F CASEFlange,12x115 |
MS101368 |
US $10.67 |
||
|
30314
|
30314
MB393530 PLUG, RR DIFF |
MB393530 |
US $9.58 |
||
|
30384
|
30384
MD701430
OIL SEAL, M/T CASE EXTENSION HOUSING, RR
|
MD701430 |
— | ||
| replacement | |||||
|
30384
|
30384
MR983368 OIL SEAL, M/T CASE EXTENSION HOUSING, RR |
MR983368 |
from US $5.44 |
||
|
66603
|
66603
MR980468 GUIDE, T/F AIR |
MR980468 |
US $34.78 |
||
|
11 100
|
Liquid gasket
11 100
|
||||
