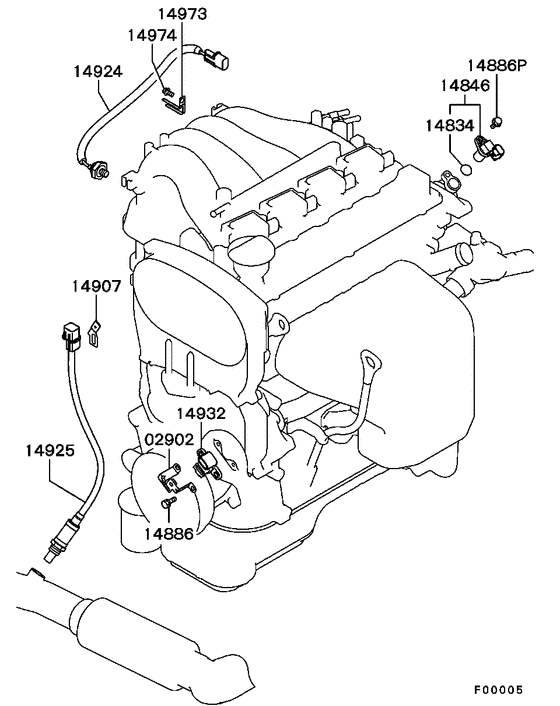

Electrical control (ALL (CRANK ANGLE SENSOR ETC.)) Diagram Mitsubishi MIRAGE DINGO
- Year
- 1999 - 2002
- Sales region
- Japan
- Note
- AERO,4CA/T
- transmission
- 4CA/T
- grade
- AERO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02902
|
02902
MD330854 BRACKET, TIMING BELT COVER |
MD330854 |
US $3.26 |
||
|
14834
|
14834
MD623055 O-RING, CRANK ANGLE SENSOR |
MD623055 |
US $4.10 |
||
|
14846
|
14846
MD348074 SENSOR, CAMSHAFT POSITION |
MD348074 |
from US $174.02 |
||
|
14886
|
14886
MF241225 BOLT, ROCKER COVERWasher assembled,6x16 |
MF241225 |
from US $1.01 |
||
|
14886P
|
14886P
MF140205 BOLT, CYLINDER BLOCKFlange,6x16 |
MF140205 |
from US $0.82 |
||
|
14907
|
14907
MR507442 BRACKET, INLET MANIFOLD |
MR507442 |
US $2.22 |
||
|
14924
|
14924
MD361467 SENSOR, ENG CONTROL KNOCK |
MD361467 |
US $205.72 |
||
|
14925
|
14925
MR507441 SENSOR, ENG CONTROL OXYGEN |
MR507441 |
US $618.80 |
||
|
14932
|
14932
MD330853 SENSOR, ENG CRANK ANGLE |
MD330853 |
US $153.22 |
||
|
14932
|
14932
MR560132 SENSOR, ENG CRANK ANGLE |
MR560132 |
from US $99.53 |
||
|
14973
|
14973
MB113038 CLIP, EMISSION VACUUM CONTROL EQUIP6.6-40/55 |
MB113038 |
US $3.97 |
||
|
14974
|
14974
M965175 BOLT, TIMING BELT COVERFlange,6x12 |
M965175 |
US $2.07 |
||
|
14974
|
14974
MF140203 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140203 |
from US $0.78 |
