	Description	OEM Part #	Price
05300	05300 MB220798 FUEL FILTER ASSY	MB220798	US $58.46
05300	05300 MB504740 FUEL FILTER	MB504740	US $112.48
05302B	05302B MB348194 BRACKET, FUEL FILTER	MB348194	US $18.50
05316B	05316B MB433945 HOSE, FUEL FILTER HIGH PRESSURE	MB433945	US $177.60
05316C	05316C MB433965 HOSE, FUEL FILTER HIGH PRESSURE	MB433965	US $140.60
05316C	05316C MB433967 HOSE, FUEL FILTER HIGH PRESSURE	MB433967	US $156.88
05316D	05316D MB433985 HOSE, FUEL FILTER HIGH PRESSURE	MB433985	US $103.60
05417	05417 MB348035 TUBE, FUEL MAIN	MB348035	US $105.08
05417	05417 MB400215 PIPE KIT, FUEL	MB400215	US $145.78
05417	05417 MB400880 PIPE KIT, FUEL	MB400880	US $162.80
05421	05421 MB329505 TUBE, FUEL MAIN	MB329505	US $39.96
05421	05421 MB348035 TUBE, FUEL MAIN	MB348035	US $105.08
05421	05421 MB348160 TUBE, FUEL MAIN	MB348160	US $18.50
05421	05421 MB400260 TUBE, FUEL MAIN	MB400260	US $27.38
05421	05421 MB433610 TUBE, FUEL MAIN	MB433610	US $65.12
05429	05429 MB348162 TUBE, FUEL LINE	MB348162	US $29.60
05429	05429 MB400263 TUBE, FUEL LINE Steel	MB400263	US $35.52
05429	05429 MB433611 TUBE, FUEL LINE	MB433611	US $80.66
05431	05431 MB248350 PROTECTOR, FUEL PIPE	MB248350	US $24.42
05455B	05455B MB043434 CUSHION, FUEL TANK	MB043434	US $9.03
05455C	05455C MB247172 CUSHION, FUEL TANK	MB247172	US $6.81
05456	05456 MB554315 O-RING, FUEL LINE	MB554315	US $5.06
05456	05456 MF520083 O-RING, FUEL LINE 8	MF520083	US $4.79
05473B	05473B MS660164 CLAMP, T/M OIL COOLER LINE D=13.1	MS660164	from US $1.13
05473B	05473B MS660175 CLIP, ROCKER COVER D=12.5	MS660175	from US $1.52
05473C	05473C MB503823 CLIP, FUEL RETURN LINE 12	MB503823	US $5.61
05473D	05473D MF477023 CLIP, ENG RR MOUNTING D=8	MF477023	US $1.78
05473E	05473E MB359776 CLIP, FUEL RETURN LINE 8	MB359776	US $2.96
05473E	05473E MB400930 CLIP, FUEL RETURN LINE 8	MB400930	US $9.32
05473G	05473G MB220876 CLIP, FUEL TANK	MB220876	US $3.83
05473K	05473K MB181581 CLIP, FUEL LINE 8,6.1	MB181581	US $2.87
05474C	05474C MS661006 CLAMP, ENG SPEED CONTROL EQUIP D=12	MS661006	US $3.42
05477	05477 MS240121 BOLT, CONNROD Washer assembled,6x16	MS240121	from US $1.70
05481	05481 MF450153 WASHER, TIMING POWER TRAIN CASE Plain,6	MF450153	US $0.96
05483	05483 MB043435 SPACER, FUEL TANK 8x17	MB043435	US $10.80
05488	05488 MS440503 NUT, ENG FR MOUNTING Washer assembled,8	MS440503	from US $0.84
05489	05489 MF660064 GASKET, CYLINDER BLOCK D=12	MF660064	from US $0.57
05492B	05492B MB348021 BAND, ENG BREATHER L=240	MB348021	US $2.66
05493G	05493G MF477028 CLIP, FUEL LINE D=20	MF477028	US $3.01
05493H	05493H MS660168 CLIP, ROCKER COVER D=17.8	MS660168	from US $1.74
05494F	05494F MB329771 CLAMP, FUEL RETURN LINE 8	MB329771	US $6.22
05495B	05495B MB329778 BRACKET, FUEL LINE	MB329778	US $9.32
05495B	05495B MB433596 BRACKET, FUEL LINE	MB433596	US $8.14
05495C	05495C MB329776 BRACKET, FUEL LINE	MB329776	US $6.81
05496C	05496C MS240121 BOLT, CONNROD Washer assembled,6x16	MS240121	from US $1.70
05496D	05496D MS240036 BOLT, ACCEL CABLE SUPPORT	MS240036	—
05496E	05496E MB400550 BOLT, FUEL LINE Washer assembled,6x16	MB400550	from US $1.68
05496F	05496F MF241230 BOLT, FUEL LINE	MF241230	—
05497	05497 MF650113 EYEBOLT, ENG OIL LINE	MF650113	—
	replacement
05497	05497 MS650013 EYEBOLT, FUEL LINE 12x23	MS650013	from US $3.28
05497	05497 MS650013 EYEBOLT, FUEL LINE 12x23	MS650013	from US $3.28
05498B	05498B MB348577 HOSE, FUEL RETURN LINE 7.4	MB348577	US $34.78
05498B	05498B MB348578 HOSE, FUEL RETURN LINE 7.5	MB348578	US $35.52
05498C	05498C MS603111 TUBE, FUEL RETURN LINE Rubber,8x2000	MS603111	from US $22.76
05498C	05498C MS605896 HOSE, FUEL TANK	MS605896	—
	replacement
05498C	05498C MU601799 HOSE, FUEL TANK 8x2000	MU601799	US $87.55
05499E	05499E MB348129 HOSE, FUEL LINE Rubber,19	MB348129	US $48.10
05523	05523 MB329504 SUPPORT, FUEL PUMP	MB329504	US $34.78
05607	05607 MB075620 CANISTER, FUEL VAPOR	MB075620	US $65.12
05607	05607 MB433065 CANISTER, FUEL VAPOR	MB433065	US $65.12
05615	05615 MB348155 HOLDER, FUEL VAPOR CANISTER	MB348155	US $14.80
05617	05617 MB129700 HOSE, FUEL VAPOR PURGE	MB129700	—
05617	05617 MB344257 HOSE, FUEL VAPOR PURGE	MB344257	US $17.02
05617	05617 MB433665 HOSE, FUEL VAPOR PURGE	MB433665	US $15.54
05618	05618 MD001918 VALVE, PURGE CONTROL	MD001918	US $99.90
05622	05622 MB348164 PIPE, FUEL VAPOR	MB348164	US $16.28
05622	05622 MB400266 PIPE, FUEL VAPOR	MB400266	US $22.20
05622	05622 MB433612 PIPE, FUEL VAPOR	MB433612	US $48.10
05635	05635 MB348541 BRACKET, PURGE CONTROL VALVE	MB348541	US $8.58
05635	05635 MB433663 BRACKET, PURGE CONTROL VALVE	MB433663	US $9.77
05958	05958 MF350770 SCREW, FUEL VAPOR CONTROL LINE Washer assembled,5x16	MF350770	US $1.92
05959C	05959C MS440502 NUT, FUEL TANK Washer assembled,6	MS440502	from US $1.74
05963B	05963B MB348198 HOSE, FUEL VAPOR CONTROL LINE	MB348198	US $14.21
05963B	05963B MB433667 HOSE, FUEL VAPOR CONTROL LINE	MB433667	US $10.95
05963C	05963C MB247441 HOSE, FUEL VAPOR CONTROL LINE	MB247441	US $10.06
05963C	05963C MB348810 HOSE, FUEL VAPOR CONTROL LINE	MB348810	US $9.77
05963E	05963E MS605158 HOSE, EMISSION SOLENOID VALVE 6x2000	MS605158	from US $13.77
05966	05966 MS660169 CLIP, FUEL TANK D=10	MS660169	from US $0.92
05971	05971 MS240121 BOLT, CONNROD Washer assembled,6x16	MS240121	from US $1.70
13 010	Fuel tank 13 010
13 010	Fuel tank 13 010
13 510	Injection mixer 13 510
13 510	Injection mixer 13 510
15 710	Emission control 15 710
15 710	Emission control 15 710

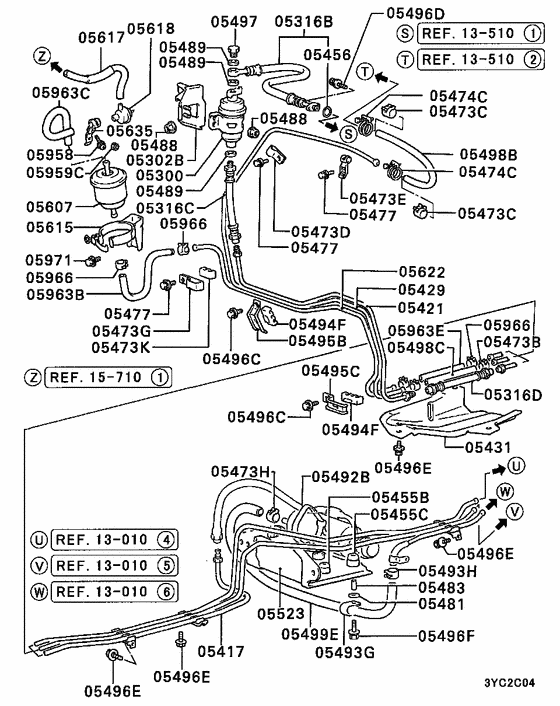

Fuel line & vapor gas control (-8512.3) Diagram Mitsubishi MIRAGE HATCHBACK Japan 7942639-631395

Fuel line & vapor gas control (-8512.3) Diagram Mitsubishi MIRAGE HATCHBACK Japan 7942639-631395
