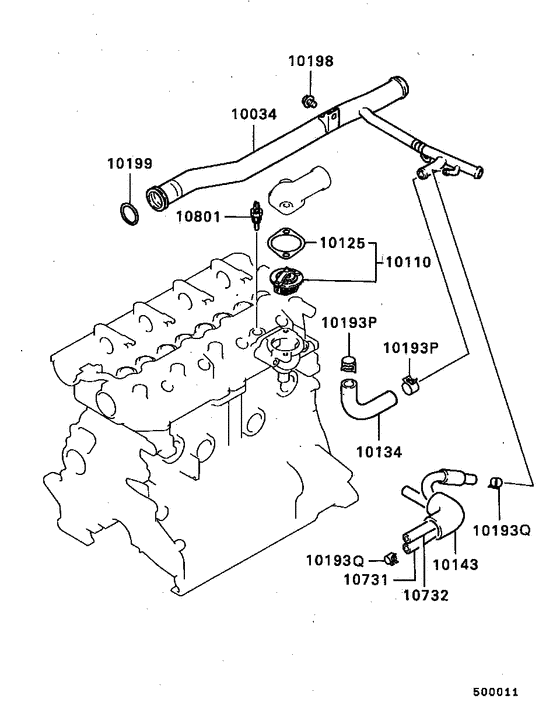

Water pipe & thermostat (-8512.3) Diagram Mitsubishi MIRAGE HATCHBACK
- Year
- 1983 - 1985
- Sales region
- Japan
- Note
- CG,5FM/T,4DR HATCHBACK
- transmission
- 5FM/T
- grade
- CG
- body
- HATCHBACK
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
10034
|
10034
MD073599 PIPE, WATER PUMP INLET |
MD073599 |
US $56.24 |
||
|
10110
|
10110
MD071349 THERMOSTAT82 |
MD071349 |
US $43.66 |
||
|
10110
|
10110
MD997225 THERMOSTAT KIT82 |
MD997225 |
US $45.88 |
||
|
10125
|
10125
MD000551 GASKET, THERMOSTAT WATER HOSE FITTING |
MD000551 |
US $3.70 |
||
|
10134
|
10134
MD027473 HOSE, THERMOSTAT WATER BY-PASS |
MD027473 |
US $12.58 |
||
|
10143
|
10143
MB010323 PAD, COOLING WATER BY-PASS HOSE |
MB010323 |
US $5.18 |
||
|
10193P
|
10193P
MS660222 CLIP, COOLING WATER LINE21.7 |
MS660222 |
US $4.38 |
||
|
10193Q
|
10193Q
MS660164 CLAMP, T/M OIL COOLER LINED=13.1 |
MS660164 |
from US $1.13 |
||
|
10198
|
10198
MF140021 BOLT, ACCEL CABLE SUPPORTFlange,8x12 |
MF140021 |
from US $0.43 |
||
|
10199
|
10199
MD030764 O-RING, WATER PUMP INRD=33.4 |
MD030764 |
from US $2.81 |
||
|
10731
|
10731
MD068186 HOSE, THROTTLE BODY WATER RETURN8x180 |
MD068186 |
US $9.17 |
||
|
10732
|
10732
MD078656 HOSE, INJECTION PUMP WATER RETURN |
MD078656 |
US $9.32 |
||
|
10801
|
10801
MD050214 GAUGE UNIT, WATER TEMPERATURE |
MD050214 |
from US $30.73 |
