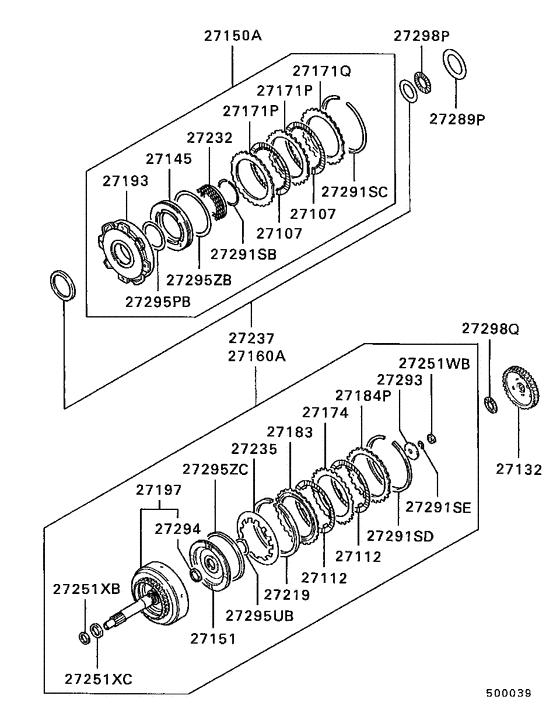

A/t clutch (9002.1-) Diagram Mitsubishi MIRAGE-S.WAGON
- Year
- 1987 - 1990
- Sales region
- P.RICO&GUAM
- Note
- LOW LINE,3FA/T DOD-FED
- drive
- 2WD
- transmission
- 3FA/T
- grade
- LOW LINE
- body
- VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27107
|
27107
MD713655 DISC, A/T FR CLUTCH |
MD713655 |
US $44.40 |
||
|
27107
|
27107
MD722555 DISC, A/T RR CLUTCH |
MD722555 |
US $56.24 |
||
|
27112
|
27112
MD714345 DISC, A/T RR CLUTCH |
MD714345 |
US $44.40 |
||
|
27112
|
27112
MD722555 DISC, A/T RR CLUTCH |
MD722555 |
US $56.24 |
||
|
27132
|
27132
MD707273 HUB, A/T RR CLUTCH |
MD707273 |
US $102.86 |
||
|
27132
|
27132
MD722561 HUB, A/T RR CLUTCH |
MD722561 |
US $109.52 |
||
|
27145
|
27145
MD707280 PISTON, A/T CLUTCH |
MD707280 |
US $34.78 |
||
|
27145
|
27145
MD729800 PISTON, A/T CLUTCH |
MD729800 |
US $87.32 |
||
|
27150A
|
27150A
MD707296 CLUTCH ASSY, A/T, FR |
MD707296 |
US $527.07 |
||
|
27150A
|
27150A
MD729390 CLUTCH ASSY, A/T, FR |
MD729390 |
US $499.41 |
||
|
27151
|
27151
MD707240 PISTON, A/T CLUTCH |
MD707240 |
US $40.70 |
||
|
27151
|
27151
MD723037 PISTON, A/T CLUTCH |
MD723037 |
US $87.32 |
||
|
27160A
|
27160A
MD720113 CLUTCH ASSY, A/T, RR |
MD720113 |
US $656.66 |
||
|
27160A
|
27160A
MD731473 CLUTCH ASSY, A/T, RR |
MD731473 |
US $758.58 |
||
|
27171P
|
27171P
MD722559
PLATE, A/T FR CLUTCH REACTION
|
MD722559 |
— | ||
|
27171P
|
27171P
MD727157 PLATE, A/T FR CLUTCH REACTION |
MD727157 |
US $39.22 |
||
|
27171Q
|
27171Q
MD715064 PLATE, A/T RR CLUTCH REACTION |
MD715064 |
US $39.22 |
||
|
27171Q
|
27171Q
MD722557 PLATE, A/T FR CLUTCH REACTION |
MD722557 |
US $50.62 |
||
|
27174
|
27174
MD707255 PLATE, A/T RR CLUTCH |
MD707255 |
US $39.22 |
||
|
27174
|
27174
MD722556 PLATE, A/T RR CLUTCH |
MD722556 |
US $68.40 |
||
|
27183
|
27183
MD707251 PLATE, A/T RR CLUTCH PRESSURE |
MD707251 |
US $39.22 |
||
|
27183
|
27183
MD732408 PLATE, A/T RR CLUTCH PRESSURE |
MD732408 |
US $50.62 |
||
|
27184P
|
27184P
MD715064 PLATE, A/T RR CLUTCH REACTION |
MD715064 |
US $39.22 |
||
|
27184P
|
27184P
MD722557 PLATE, A/T FR CLUTCH REACTION |
MD722557 |
US $50.62 |
||
|
27193
|
27193
MD707283 RETAINER, A/T FR CLUTCH |
MD707283 |
US $311.58 |
||
|
27193
|
27193
MD727524 RETAINER, A/T FR CLUTCH |
MD727524 |
US $362.54 |
||
|
27197
|
27197
MD718042 RETAINER, A/T RR CLUTCH |
MD718042 |
US $401.86 |
||
|
27197
|
27197
MD726011 RETAINER, A/T RR CLUTCH |
MD726011 |
US $481.94 |
||
|
27219
|
27219
MD707253 SPRING, A/T RR CLUTCH WAVE |
MD707253 |
US $10.51 |
||
|
27232
|
27232
MD729580 SPRING, A/T FR CLUTCH PISTON |
MD729580 |
US $18.50 |
||
|
27232
|
27232
MD729806 SPRING, A/T FR CLUTCH PISTON |
MD729806 |
US $25.31 |
||
|
27235
|
27235
MD707250 SPRING, A/T RR CLUTCH PISTON |
MD707250 |
US $13.32 |
||
|
27237
|
27237
MD707901 THRUST WASHER SET, A/T CLUTCH1.8 & 0.8 |
MD707901 |
US $16.28 |
||
|
27237
|
27237
MD707902 THRUST WASHER SET, A/T CLUTCH2.2 & 1.2 |
MD707902 |
US $16.28 |
||
|
27237
|
27237
MD707903 THRUST WASHER SET, A/T CLUTCH2.6 & 1.6 |
MD707903 |
US $16.28 |
||
|
27237
|
27237
MD707904 THRUST WASHER SET, A/T CLUTCH3.0 & 2.0 |
MD707904 |
US $17.02 |
||
|
27237
|
27237
MD997847 THRUST WASHER SET, A/T CLUTCH1.4 & 1.2 |
MD997847 |
US $18.50 |
||
|
27237
|
27237
MD997848 THRUST WASHER SET, A/T CLUTCH1.8 & 1.4 |
MD997848 |
US $18.50 |
||
|
27237
|
27237
MD997849 THRUST WASHER SET, A/T CLUTCH1.8 & 1.6 |
MD997849 |
US $18.50 |
||
|
27237
|
27237
MD997850 THRUST WASHER SET, A/T CLUTCH2.2 & 1.8 |
MD997850 |
US $18.50 |
||
|
27237
|
27237
MD997851 THRUST WASHER SET, A/T CLUTCH2.2 & 2.0 |
MD997851 |
US $19.24 |
||
|
27237
|
27237
MD997852 THRUST WASHER SET, A/T CLUTCH2.6 & 2.2 |
MD997852 |
US $19.24 |
||
|
27237
|
27237
MD997853 THRUST WASHER SET, A/T CLUTCH2.6 & 2.4 |
MD997853 |
US $20.72 |
||
|
27237
|
27237
MD997854 THRUST WASHER SET, A/T CLUTCH1.4 & 1.0 |
MD997854 |
US $20.72 |
||
|
27251WB
|
27251WB
MD707237 SEAL RING, A/T CLUTCH10 |
MD707237 |
US $4.44 |
||
|
27251XB
|
27251XB
MD707236 SEAL RING, A/T CLUTCH22 |
MD707236 |
US $6.81 |
||
|
27251XB
|
27251XB
MD722551 SEAL RING, A/T23 |
MD722551 |
from US $3.94 |
||
|
27251XC
|
27251XC
MD707235 SEAL RING, A/T CASE29 |
MD707235 |
US $8.58 |
||
|
27251XC
|
27251XC
MD722639 SEAL RING, A/T31 |
MD722639 |
US $7.99 |
||
|
27289P
|
27289P
MD707290 THRUST WASHER, A/T CLUTCH1.8 |
MD707290 |
US $13.32 |
||
|
27289P
|
27289P
MD729336 THRUST WASHER, A/T CLUTCH1.8 |
MD729336 |
US $13.02 |
||
|
27291SB
|
27291SB
MD720544 SNAP RING, A/T CLUTCH59 |
MD720544 |
US $6.51 |
||
|
27291SB
|
27291SB
MD722581 SNAP RING, A/T CLUTCH58 |
MD722581 |
US $8.73 |
||
|
27291SC
|
27291SC
MD730930 SNAP RING, A/T CLUTCH1.7 |
MD730930 |
US $9.77 |
||
|
27291SC
|
27291SC
MD730931 SNAP RING, A/T CLUTCH1.9 |
MD730931 |
US $9.77 |
||
|
27291SC
|
27291SC
MD730932 SNAP RING, A/T CLUTCH2.1 |
MD730932 |
US $9.77 |
||
|
27291SC
|
27291SC
MD730933 SNAP RING, A/T CLUTCH2.3 |
MD730933 |
US $9.77 |
||
|
27291SC
|
27291SC
MD730934 SNAP RING, A/T CLUTCH2.5 |
MD730934 |
US $9.77 |
||
|
27291SC
|
27291SC
MD730935 SNAP RING, A/T CLUTCH2.7 |
MD730935 |
US $9.77 |
||
|
27291SC
|
27291SC
MD730936 SNAP RING, A/T CLUTCH2.9 |
MD730936 |
US $9.77 |
||
|
27291SC
|
27291SC
MD955630 SNAP RING, A/T BRAKE1.6 |
MD955630 |
US $8.44 |
||
|
27291SC
|
27291SC
MD955631 SNAP RING, A/T BRAKE1.8 |
MD955631 |
US $8.44 |
||
|
27291SC
|
27291SC
MD955632 SNAP RING, A/T BRAKE2.0 |
MD955632 |
US $8.44 |
||
|
27291SC
|
27291SC
MD955633 SNAP RING, A/T BRAKE2.2 |
MD955633 |
US $8.44 |
||
|
27291SC
|
27291SC
MD955634 SNAP RING, A/T BRAKE2.4 |
MD955634 |
US $8.44 |
||
|
27291SC
|
27291SC
MD955635 SNAP RING, A/T BRAKE2.6 |
MD955635 |
US $8.44 |
||
|
27291SC
|
27291SC
MD955636 SNAP RING, A/T BRAKE2.8 |
MD955636 |
US $8.44 |
||
|
27291SC
|
27291SC
MD955637 SNAP RING, A/T BRAKE3.0 |
MD955637 |
US $8.44 |
||
|
27291SD
|
27291SD
MD730930 SNAP RING, A/T CLUTCH1.7 |
MD730930 |
US $9.77 |
||
|
27291SD
|
27291SD
MD730931 SNAP RING, A/T CLUTCH1.9 |
MD730931 |
US $9.77 |
||
|
27291SD
|
27291SD
MD730932 SNAP RING, A/T CLUTCH2.1 |
MD730932 |
US $9.77 |
||
|
27291SD
|
27291SD
MD730933 SNAP RING, A/T CLUTCH2.3 |
MD730933 |
US $9.77 |
||
|
27291SD
|
27291SD
MD730934 SNAP RING, A/T CLUTCH2.5 |
MD730934 |
US $9.77 |
||
|
27291SD
|
27291SD
MD730935 SNAP RING, A/T CLUTCH2.7 |
MD730935 |
US $9.77 |
||
|
27291SD
|
27291SD
MD730936 SNAP RING, A/T CLUTCH2.9 |
MD730936 |
US $9.77 |
||
|
27291SD
|
27291SD
MD955630 SNAP RING, A/T BRAKE1.6 |
MD955630 |
US $8.44 |
||
|
27291SD
|
27291SD
MD955631 SNAP RING, A/T BRAKE1.8 |
MD955631 |
US $8.44 |
||
|
27291SD
|
27291SD
MD955632 SNAP RING, A/T BRAKE2.0 |
MD955632 |
US $8.44 |
||
|
27291SD
|
27291SD
MD955633 SNAP RING, A/T BRAKE2.2 |
MD955633 |
US $8.44 |
||
|
27291SD
|
27291SD
MD955634 SNAP RING, A/T BRAKE2.4 |
MD955634 |
US $8.44 |
||
|
27291SD
|
27291SD
MD955635 SNAP RING, A/T BRAKE2.6 |
MD955635 |
US $8.44 |
||
|
27291SD
|
27291SD
MD955636 SNAP RING, A/T BRAKE2.8 |
MD955636 |
US $8.44 |
||
|
27291SD
|
27291SD
MD955637 SNAP RING, A/T BRAKE3.0 |
MD955637 |
US $8.44 |
||
|
27291SE
|
27291SE
MD707234 SNAP RING, A/T CLUTCH11.1 |
MD707234 |
US $2.52 |
||
|
27291SE
|
27291SE
MD720752 SNAP RING, A/T CLUTCH19.4 |
MD720752 |
US $2.96 |
||
|
27291SE
|
27291SE
MD739501 SNAP RING, A/T CLUTCH19.4 |
MD739501 |
US $5.48 |
||
|
27293
|
27293
MD707260 RACE, A/T CLUTCH |
MD707260 |
US $7.25 |
||
|
27293
|
27293
MD722552 RACE, A/T CLUTCHT=2.4 |
MD722552 |
US $8.44 |
||
|
27294
|
27294
MD732133 O-RING, A/T CLUTCH25.6 |
MD732133 |
US $15.54 |
||
|
27295PB
|
27295PB
MD707279 D-RING, A/T CLUTCH61 |
MD707279 |
US $6.07 |
||
|
27295PB
|
27295PB
MD722577 D-RING, A/T CLUTCH62 |
MD722577 |
US $10.06 |
||
|
27295UB
|
27295UB
MD707248 D-RING, A/T CLUTCH30 |
MD707248 |
US $4.74 |
||
|
27295UB
|
27295UB
MD722586 D-RING, A/T CLUTCH36 |
MD722586 |
US $5.77 |
||
|
27295ZB
|
27295ZB
MD707282 D-RING, A/T CLUTCH109 |
MD707282 |
US $7.70 |
||
|
27295ZC
|
27295ZC
MD707247 D-RING, A/T CLUTCH114 |
MD707247 |
US $7.70 |
||
|
27298P
|
27298P
MD707271 THRUST BEARING, A/T BRAKEThrust,48.09 |
MD707271 |
US $15.05 |
||
|
27298Q
|
27298Q
MD707270 THRUST BEARING, A/T CLUTCHNeedle roller |
MD707270 |
US $11.40 |
||
|
27298Q
|
27298Q
MD720753 THRUST BEARING, A/T CLUTCHThrust,42.6 |
MD720753 |
US $15.05 |
