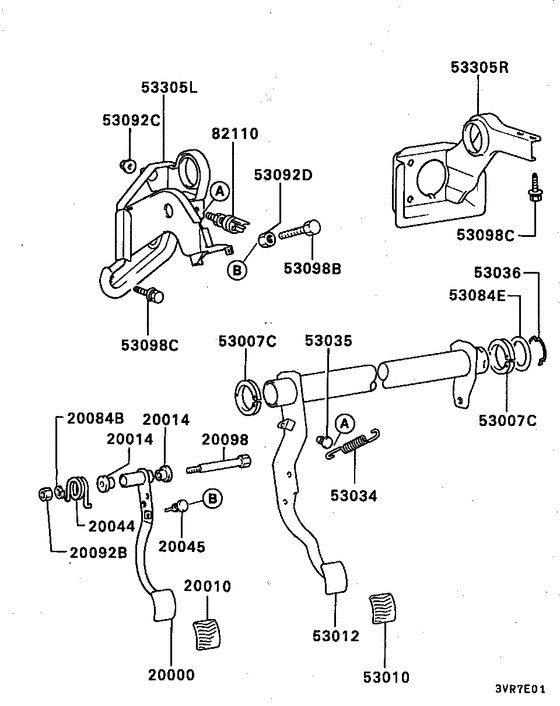

Brake & clutch pedal (M/T) Diagram Mitsubishi MIRAGE-S.WAGON
- Year
- 1987 - 1990
- Sales region
- P.RICO&GUAM
- Note
- HIGH LINE,3FA/T DOD-FED
- drive
- 2WD
- transmission
- 3FA/T
- grade
- HIGH LINE
- body
- VAN
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20084B
|
20084B
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.43 |
||
|
20092B
|
20092B
MF430006 NUT10 |
MF430006 |
from US $1.35 |
||
|
20098
|
20098
MB407944
BOLT,CLUTCH PEDAL
|
MB407944 |
— | ||
|
53007C
|
53007C
MB193583 BUSHING, BRAKE PEDAL47.5x14 |
MB193583 |
US $3.11 |
||
|
53010
|
53010
MB277874 PAD, BRAKE PEDAL61x112 |
MB277874 |
US $7.99 |
||
|
53012
|
53012
MB316581
PEDAL,BRAKE
|
MB316581 |
— | ||
|
53034
|
53034
MB082482 SPRING,BRAKE PEDAL RETURN |
MB082482 |
US $5.92 |
||
|
53035
|
53035
MB500595 STOPPER, BRAKE PEDAL |
MB500595 |
US $3.55 |
||
|
53036
|
53036
MB193837
STOPPER,BRAKE PEDAL SHAFT
|
MB193837 |
— | ||
|
53084E
|
53084E
MB193836 WASHER, BRAKE PEDALPlain,38 |
MB193836 |
US $3.11 |
||
|
53092C
|
53092C
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
53098C
|
53098C
MS240139 BOLT, STEERING COLUMNWasher assembled,8x20 |
MS240139 |
from US $1.23 |
||
|
53305L
|
53305L
MB316578
MEMBER,PEDAL SUPPORT,LH
|
MB316578 |
— | ||
|
53305R
|
53305R
MB316579
MEMBER,PEDAL SUPPORT,RH
|
MB316579 |
— | ||
|
82110
|
82110
MB435457 SWITCH, STOP LAMP |
MB435457 |
from US $9.52 |
