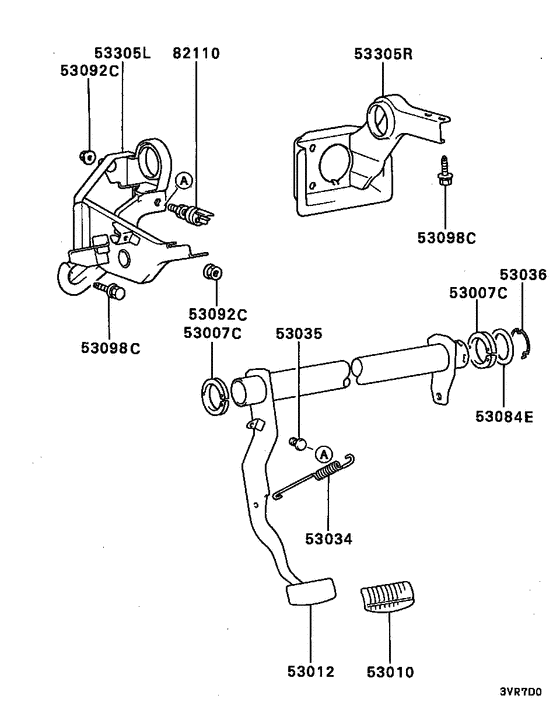

Brake & clutch pedal (A/T) Diagram Mitsubishi MIRAGE-S.WAGON
- Year
- 1987 - 1990
- Sales region
- P.RICO&GUAM
- Note
- HIGH LINE,5FM/T DOD-FED
- drive
- 2WD
- transmission
- 5FM/T
- grade
- HIGH LINE
- body
- VAN
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53007C
|
53007C
MB193583 BUSHING, BRAKE PEDAL47.5x14 |
MB193583 |
US $3.11 |
||
|
53010
|
53010
MA126093 PAD, BRAKE PEDAL68x48 |
MA126093 |
from US $3.47 |
||
|
53012
|
53012
MB407942
PEDAL,BRAKE
|
MB407942 |
— | ||
|
53034
|
53034
MB407945
SPRING,BRAKE PEDAL RETURN
|
MB407945 |
— | ||
|
53035
|
53035
MB500595 STOPPER, BRAKE PEDAL |
MB500595 |
US $3.55 |
||
|
53036
|
53036
MB193837
STOPPER,BRAKE PEDAL SHAFT
|
MB193837 |
— | ||
|
53084E
|
53084E
MB193836 WASHER, BRAKE PEDALPlain,38 |
MB193836 |
US $3.11 |
||
|
53092C
|
53092C
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
53098C
|
53098C
MS240139 BOLT, STEERING COLUMNWasher assembled,8x20 |
MS240139 |
from US $1.23 |
||
|
53305L
|
53305L
MB407941
MEMBER,PEDAL SUPPORT,LH
|
MB407941 |
— | ||
|
53305R
|
53305R
MB316579
MEMBER,PEDAL SUPPORT,RH
|
MB316579 |
— | ||
|
82110
|
82110
MB435457 SWITCH, STOP LAMP |
MB435457 |
from US $9.52 |
