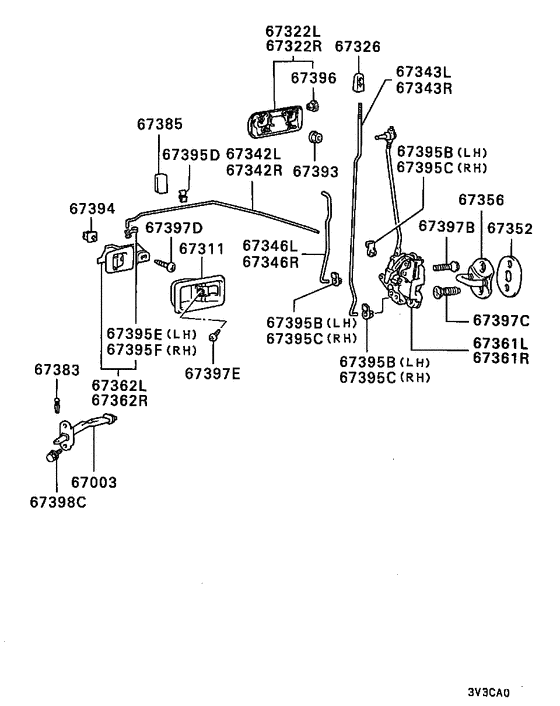

Front door locking Diagram Mitsubishi MIRAGE-S.WAGON
- Year
- 1987 - 1990
- Sales region
- P.RICO&GUAM
- Note
- HIGH LINE,5FM/T DOD-FED
- drive
- 2WD
- transmission
- 5FM/T
- grade
- HIGH LINE
- body
- VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67003
|
67003
MB258655 CHECK, FR DOOR |
MB258655 |
US $20.72 |
||
|
67311
|
67311
MB365836 COVER, FR DOOR INSIDE HANDLE |
MB365836 |
US $5.20 |
||
|
67311
|
67311
MB721114 COVER, FR DOOR INSIDE HANDLE |
MB721114 |
US $4.59 |
||
|
67311
|
67311
MB721115 COVER, FR DOOR INSIDE HANDLE |
MB721115 |
US $4.59 |
||
|
67311
|
67311
MB737654
COVER,FR DOOR INSIDE HANDLE
|
MB737654 |
— | ||
|
67322L
|
67322L
MB321411 HANDLE, FR DOOR OUTSIDE, LH |
MB321411 |
US $36.94 |
||
|
67322R
|
67322R
MB321412 HANDLE, FR DOOR OUTSIDE, RH |
MB321412 |
US $47.20 |
||
|
67326
|
67326
MB721166 KNOB, FR DOOR INSIDE LOCK |
MB721166 |
US $7.99 |
||
|
67326
|
67326
MB721167 KNOB, FR DOOR INSIDE LOCK |
MB721167 |
US $7.99 |
||
|
67326
|
67326
MB738653
KNOB,FR DOOR INSIDE LOCK
|
MB738653 |
— | ||
|
67326
|
67326
MB738654
KNOB,FR DOOR INSIDE LOCK
|
MB738654 |
— | ||
|
67342L
|
67342L
MB258647 ROD, FR DOOR INSIDE HANDLE, LH |
MB258647 |
US $7.10 |
||
|
67342R
|
67342R
MB258648 ROD, FR DOOR INSIDE HANDLE, RH |
MB258648 |
US $7.10 |
||
|
67343L
|
67343L
MB258637 ROD, FR DOOR INSIDE LOCK, LH |
MB258637 |
US $8.44 |
||
|
67343R
|
67343R
MB258638 ROD, FR DOOR INSIDE LOCK, RH |
MB258638 |
US $8.44 |
||
|
67346L
|
67346L
MB258629 ROD, FR DOOR OUTSIDE LOCK, LH |
MB258629 |
US $6.36 |
||
|
67346R
|
67346R
MB258630 ROD, FR DOOR OUTSIDE LOCK, RH |
MB258630 |
US $6.36 |
||
|
67352
|
67352
MB365681 SHIM, FR DOOR LATCH STRIKER1.6 |
MB365681 |
US $5.03 |
||
|
67356
|
67356
MB365672
STRIKER, FR DOOR LATCH
|
MB365672 |
— | ||
| replacement | |||||
|
67356
|
67356
MB574967 STRIKER, FR DOOR LATCH |
MB574967 |
from US $8.70 |
||
|
67361L
|
67361L
MB321433
LATCH, FR DOOR, LH
|
MB321433 |
— | ||
| replacement | |||||
|
67361L
|
67361L
MB321435
LATCH, FR DOOR, LH
|
MB321435 |
— | ||
|
67361L
|
67361L
MB590889
LATCH,FR DOOR,LH
|
MB590889 |
— | ||
|
67361R
|
67361R
MB321434 LATCH, FR DOOR, RH |
MB321434 |
US $91.76 |
||
|
67361R
|
67361R
MB590890
LATCH,FR DOOR,RH
|
MB590890 |
— | ||
|
67362L
|
67362L
MB365831 HANDLE, FR DOOR INSIDE, LH |
MB365831 |
US $22.94 |
||
|
67362L
|
67362L
MB720904 HANDLE, FR DOOR INSIDE, LH |
MB720904 |
US $22.94 |
||
|
67362L
|
67362L
MB720905 HANDLE, FR DOOR INSIDE, LH |
MB720905 |
US $22.94 |
||
|
67362L
|
67362L
MB737652
HANDLE,FR DOOR INSIDE,LH
|
MB737652 |
— | ||
|
67362R
|
67362R
MB365832 HANDLE, FR DOOR INSIDE, RH |
MB365832 |
US $22.94 |
||
|
67362R
|
67362R
MB720906 HANDLE, FR DOOR INSIDE, RH |
MB720906 |
US $22.94 |
||
|
67362R
|
67362R
MB720907 HANDLE, FR DOOR INSIDE, RH |
MB720907 |
US $22.94 |
||
|
67362R
|
67362R
MB737653
HANDLE,FR DOOR INSIDE,RH
|
MB737653 |
— | ||
|
67383
|
67383
MB321177 SPRING PIN, FR DOOR PANEL6x27 |
MB321177 |
US $5.62 |
||
|
67383
|
67383
MB632510 SPRING PIN, FR DOOR LOCKING6x27 |
MB632510 |
US $3.56 |
||
|
67385
|
67385
MT407620
CUSHION, FR DOOR LOCK
|
MT407620 |
— | ||
| replacement | |||||
|
67385
|
67385
MB134382 CUSHION, FR DOOR |
MB134382 |
US $3.97 |
||
|
67393
|
67393
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
||
|
67394
|
67394
MS480003 GROMMET, FUEL FILLER LID PANELScrew,6 |
MS480003 |
from US $1.11 |
||
|
67395B
|
67395B
MS470431 CLIP, FR DOOR LOCKING2.2 |
MS470431 |
US $4.92 |
||
|
67395C
|
67395C
MS470432 CLIP, FR DOOR LOCKING2.2 |
MS470432 |
US $4.92 |
||
|
67395D
|
67395D
MS470425 CLIP, FR DOOR LOCKINGRod,d=3.8 |
MS470425 |
US $2.81 |
||
|
67395E
|
67395E
MS470433 CLIP, PTO GEARSHIFT LINK4.2 |
MS470433 |
US $4.24 |
||
|
67395F
|
67395F
MS470434 CLIP, FR DOOR LOCKING4.2 |
MS470434 |
from US $2.07 |
||
|
67396
|
67396
MS770002 BUSHING, FR DOOR LOCKING7x10 |
MS770002 |
US $2.46 |
||
|
67397B
|
67397B
MU340022 SCREW, FR DOOR LOCKINGWasher assembled,6x20 |
MU340022 |
US $4.38 |
||
|
67397C
|
67397C
MU340023 SCREW, FR DOOR LOCKINGWasher assembled(plus),8x22.5 |
MU340023 |
from US $0.96 |
||
|
67397D
|
67397D
MF453046 SCREW, FUEL LINETapping,6x14 |
MF453046 |
US $2.60 |
||
|
67397E
|
67397E
MF457532 SCREW, FR DOOR LOCKINGTapping,4x10 |
MF457532 |
US $2.05 |
||
|
67398C
|
67398C
MS240042 BOLT, RADIATORWasher assembled,6x20 |
MS240042 |
from US $0.49 |
||
