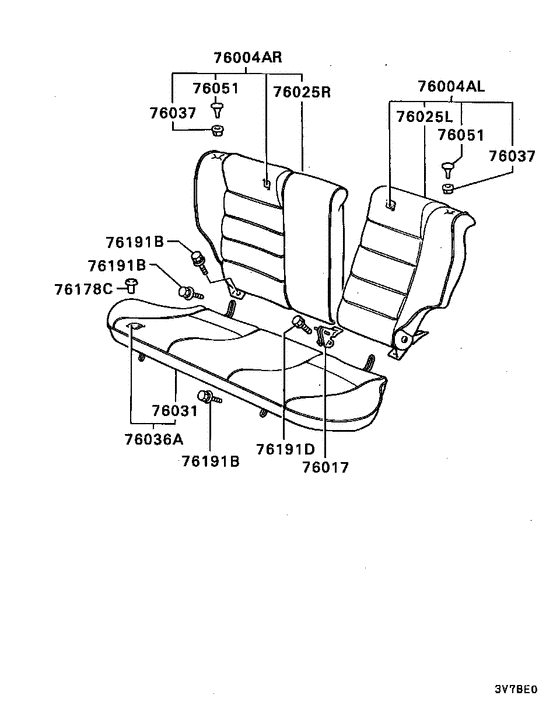

Rear seat (ALL) Diagram Mitsubishi MIRAGE-S.WAGON
- Year
- 1987 - 1990
- Sales region
- P.RICO&GUAM
- Note
- HIGH LINE,5FM/T DOD-FED
- drive
- 2WD
- transmission
- 5FM/T
- grade
- HIGH LINE
- body
- VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
76004AL
|
76004AL
MB723598
BACK ASSY,RR SEAT,LH
|
MB723598 |
— | ||
|
76004AL
|
76004AL
MB723599
BACK ASSY,RR SEAT,LH
|
MB723599 |
— | ||
|
76004AL
|
76004AL
MB739307
BACK ASSY,RR SEAT,LH
|
MB739307 |
— | ||
|
76004AL
|
76004AL
MB739308
BACK ASSY,RR SEAT,LH
|
MB739308 |
— | ||
|
76004AL
|
76004AL
MB754895
BACK ASSY,RR SEAT,LH
|
MB754895 |
— | ||
|
76004AL
|
76004AL
MB754896
BACK ASSY,RR SEAT,LH
|
MB754896 |
— | ||
|
76004AR
|
76004AR
MB723600
BACK ASSY,RR SEAT,RH
|
MB723600 |
— | ||
|
76004AR
|
76004AR
MB723601
BACK ASSY,RR SEAT,RH
|
MB723601 |
— | ||
|
76004AR
|
76004AR
MB739309
BACK ASSY,RR SEAT,RH
|
MB739309 |
— | ||
|
76004AR
|
76004AR
MB739310
BACK ASSY,RR SEAT,RH
|
MB739310 |
— | ||
|
76004AR
|
76004AR
MB754897
BACK ASSY,RR SEAT,RH
|
MB754897 |
— | ||
|
76004AR
|
76004AR
MB754898
BACK ASSY,RR SEAT,RH
|
MB754898 |
— | ||
|
76017
|
76017
MB389079 BRACKET, RR SEAT HINGE, CTR |
MB389079 |
US $28.86 |
||
|
76025L
|
76025L
MB723494
COVER,RR SEAT BACK,LH
|
MB723494 |
— | ||
|
76025L
|
76025L
MB723495
COVER,RR SEAT BACK,LH
|
MB723495 |
— | ||
|
76025L
|
76025L
MB739329
COVER,RR SEAT BACK,LH
|
MB739329 |
— | ||
|
76025L
|
76025L
MB739330
COVER,RR SEAT BACK,LH
|
MB739330 |
— | ||
|
76025L
|
76025L
MB754903
COVER,RR SEAT BACK,LH
|
MB754903 |
— | ||
|
76025L
|
76025L
MB754904
COVER,RR SEAT BACK,LH
|
MB754904 |
— | ||
|
76025R
|
76025R
MB723496
COVER,RR SEAT BACK,RH
|
MB723496 |
— | ||
|
76025R
|
76025R
MB723497
COVER,RR SEAT BACK,RH
|
MB723497 |
— | ||
|
76025R
|
76025R
MB739331
COVER,RR SEAT BACK,RH
|
MB739331 |
— | ||
|
76025R
|
76025R
MB739332
COVER,RR SEAT BACK,RH
|
MB739332 |
— | ||
|
76025R
|
76025R
MB754905
COVER,RR SEAT BACK,RH
|
MB754905 |
— | ||
|
76025R
|
76025R
MB754906
COVER,RR SEAT BACK,RH
|
MB754906 |
— | ||
|
76031
|
76031
MB723502
COVER,RR SEAT CUSHION
|
MB723502 |
— | ||
|
76031
|
76031
MB723503
COVER,RR SEAT CUSHION
|
MB723503 |
— | ||
|
76031
|
76031
MB739349
COVER,RR SEAT CUSHION
|
MB739349 |
— | ||
|
76031
|
76031
MB739350
COVER,RR SEAT CUSHION
|
MB739350 |
— | ||
|
76031
|
76031
MB754913
COVER,RR SEAT CUSHION
|
MB754913 |
— | ||
|
76031
|
76031
MB754914
COVER,RR SEAT CUSHION
|
MB754914 |
— | ||
|
76036A
|
76036A
MB723592
CUSHION ASSY,RR SEAT
|
MB723592 |
— | ||
|
76036A
|
76036A
MB723593
CUSHION ASSY,RR SEAT
|
MB723593 |
— | ||
|
76036A
|
76036A
MB739340
CUSHION ASSY,RR SEAT
|
MB739340 |
— | ||
|
76036A
|
76036A
MB739341
CUSHION ASSY,RR SEAT
|
MB739341 |
— | ||
|
76036A
|
76036A
MB754909
CUSHION ASSY,RR SEAT
|
MB754909 |
— | ||
|
76036A
|
76036A
MB754910
CUSHION ASSY,RR SEAT
|
MB754910 |
— | ||
|
76037
|
76037
MB728718 GARNISH, RR SEAT FOLDING KNOB |
MB728718 |
US $3.85 |
||
|
76037
|
76037
MB728719 GARNISH, RR SEAT FOLDING KNOB |
MB728719 |
US $3.85 |
||
|
76037
|
76037
MB738638
GARNISH,RR SEAT FOLDING KNOB
|
MB738638 |
— | ||
|
76051
|
76051
MB728720 KNOB, RR SEAT FOLDING |
MB728720 |
US $6.36 |
||
|
76051
|
76051
MB728721 KNOB, RR SEAT FOLDING |
MB728721 |
US $6.36 |
||
|
76051
|
76051
MB738639
KNOB,RR SEAT FOLDING
|
MB738639 |
— | ||
|
76178C
|
76178C
MS660153 PLUG, CLUTCH M/CYL8 |
MS660153 |
US $2.81 |
||
|
76191B
|
76191B
MB131256 BOLT, BODY LOOSE PANELWasher assembled,8x25 |
MB131256 |
US $4.38 |
||
|
76191D
|
76191D
MS240122 BOLT, ENG FR MOUNTINGWasher assembled,6x20 |
MS240122 |
from US $0.84 |
