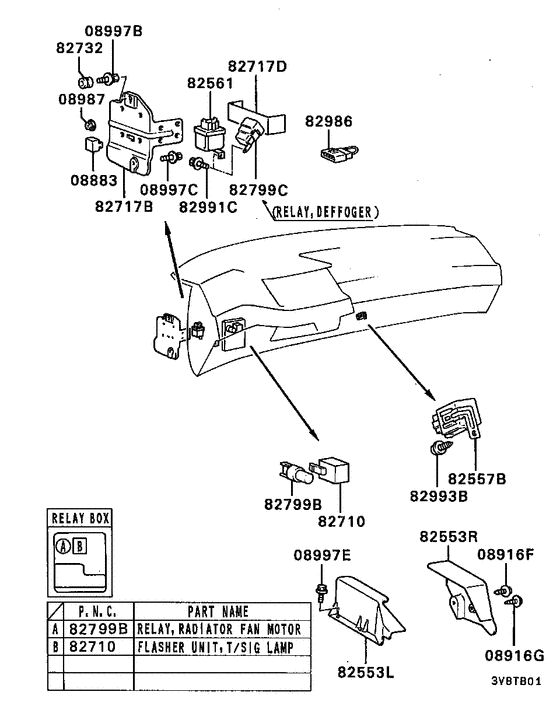

Relay,flasher & sensor (RELAY & FLASHER UNIT ETC) Diagram Mitsubishi MIRAGE-S.WAGON
- Year
- 1987 - 1990
- Sales region
- P.RICO&GUAM
- Note
- HIGH LINE,5FM/T DOD-FED
- drive
- 2WD
- transmission
- 5FM/T
- grade
- HIGH LINE
- body
- VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
08916F
|
08916F
MS450160 SCREW, FUEL TANKTapping,6x16 |
MS450160 |
US $2.74 |
||
|
08916G
|
08916G
MS450157 SCREW, ENG CONTROL EQUIPTapping,5x16 |
MS450157 |
from US $2.81 |
||
|
08987
|
08987
MS440501 NUT, FUEL TANKWasher assembled,5 |
MS440501 |
from US $1.03 |
||
|
08997B
|
08997B
MS240160 BOLT, ENG CONTROL EQUIPWasher assembled,8x40 |
MS240160 |
US $2.07 |
||
|
08997C
|
08997C
MS240145 BOLT, ENG CONTROL EQUIPWasher assembled,8x20 |
MS240145 |
from US $1.42 |
||
|
08997E
|
08997E
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
82553L
|
82553L
MB541331
COVER,CONTROL UNIT,LH
|
MB541331 |
— | ||
|
82553R
|
82553R
MB541332
COVER,CONTROL UNIT,RH
|
MB541332 |
— | ||
|
82557B
|
82557B
MB572254
TIMER UNIT,DEFOGGER
|
MB572254 |
— | ||
|
82561
|
82561
MB382440
TIMER,SEAT BELT WARNING
|
MB382440 |
— | ||
|
82710
|
82710
MB337601 FLASHER UNIT, HAZARD & TURN SIGNAL LAMPHazard wrng & t/sig lamp |
MB337601 |
US $74.74 |
||
|
82710
|
82710
MB627892
FLASHER UNIT, HAZARD & TURN SIGNAL LAMP
|
MB627892 |
— | ||
| replacement | |||||
|
82710
|
82710
MB627891 FLASHER UNIT, HAZARD & TURN SIGNAL LAMP |
MB627891 |
from US $32.74 |
||
|
82799B
|
82799B
MB084670 RELAY, ENG CONTROL EQUIP |
MB084670 |
from US $21.94 |
||
|
82799C
|
82799C
MB414093
RELAY
|
MB414093 |
— | ||
|
82799C
|
82799C
MB543175 RELAY058700-1730 |
MB543175 |
US $42.92 |
||
|
82991C
|
82991C
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
82993B
|
82993B
MB409438 SCREW, STEERING COLUMN COVERTapping,5x16 |
MB409438 |
from US $3.49 |
||
