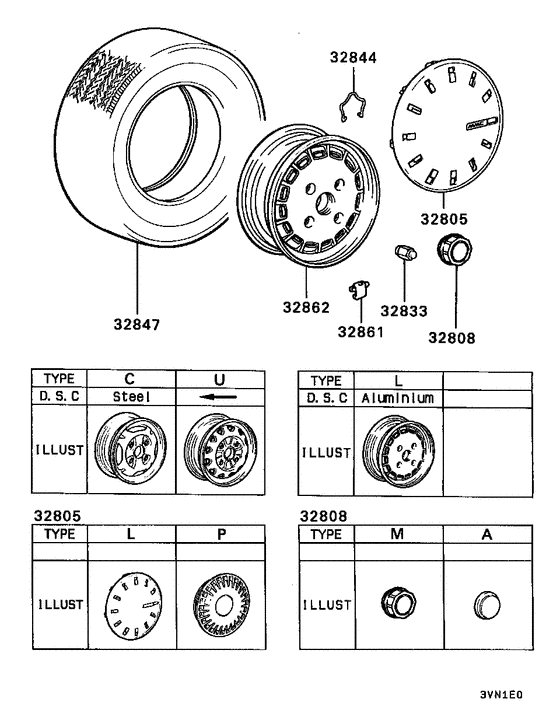

Wheel,tire & cover (WHEEL & TIRE ETC) Diagram Mitsubishi MIRAGE-S.WAGON
- Year
- 1987 - 1990
- Sales region
- P.RICO&GUAM
- Note
- HIGH LINE,5FM/T DOD-FED
- drive
- 2WD
- transmission
- 5FM/T
- grade
- HIGH LINE
- body
- VAN
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32805
|
32805
MB413330
CAP,DISC WHEEL FULL
|
MB413330 |
— | ||
|
32805
|
32805
MB776097
CAP,DISC WHEEL FULL
|
MB776097 |
— | ||
|
32808
|
32808
MB255656
CAP, DISC WHEEL, CTR
|
MB255656 |
— | ||
|
32808
|
32808
MB579495 CAP, DISC WHEEL, CTRType m |
MB579495 |
US $11.63 |
||
|
32833
|
32833
MA103087
NUT, FR AXLE
|
MA103087 |
— | ||
| replacement | |||||
|
32833
|
32833
3880A007 NUT, WHEELW/o cap |
3880A007 |
from US $2.40 |
||
|
32833
|
32833
MB057636
NUT, WHEEL
|
MB057636 |
— | ||
| replacement | |||||
|
32833
|
32833
3880A008 NUT, WHEELW/cap |
3880A008 |
from US $2.81 |
||
|
32844
|
32844
MB057268 SPRING, DISC WHEEL CTR CAP |
MB057268 |
US $3.83 |
||
|
32847
|
32847
MB413285
TIRE
|
MB413285 |
— | ||
|
32847
|
32847
MB540734
TIRE
|
MB540734 |
— | ||
|
32862
|
32862
MB413364 WHEEL, DISCType c,st,13x5j |
MB413364 |
US $153.92 |
||
|
32862
|
32862
MB540641 WHEEL, DISCType u,st,13x5j |
MB540641 |
US $156.88 |
||
|
32862
|
32862
MB579016
WHEEL, DISC
|
MB579016 |
— | ||
