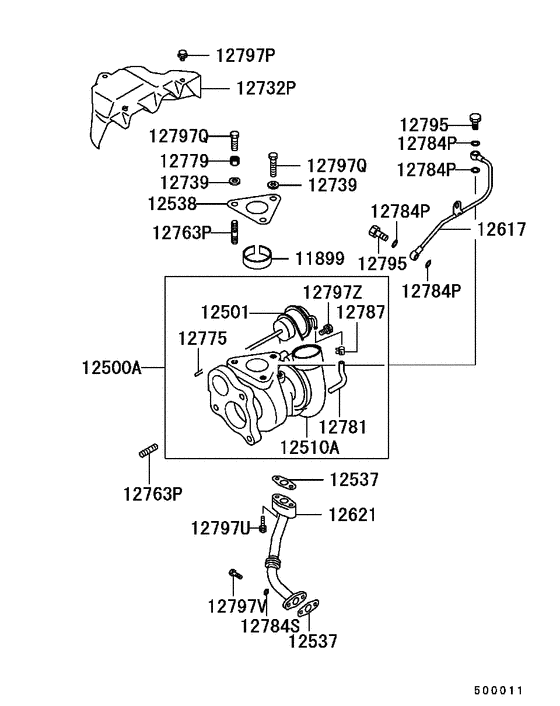

Turbocharger & supercharger (ALL (ASSEMBLY)) Diagram Mitsubishi MIRAGE SEDAN
- Year
- 1983 - 1985
- Sales region
- Japan
- Note
- GSR,3FA/T,4DR SEDAN
- transmission
- 3FA/T
- grade
- GSR
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11899
|
11899
MD077551
SEAL RING, T/C
|
MD077551 |
— | ||
|
12500A
|
12500A
MD075585 TURBOCHARGER ASSY |
MD075585 |
US $3,744 |
||
|
12500A
|
12500A
MD081630 TURBOCHARGER ASSY |
MD081630 |
US $3,744 |
||
|
12501
|
12501
MD075589 ACTUATOR, T/C WASTE GATE |
MD075589 |
US $378.56 |
||
|
12510A
|
12510A
MD075587 TURBOCHARGER SUB ASSY |
MD075587 |
US $3,744 |
||
|
12510A
|
12510A
MD081627 TURBOCHARGER SUB ASSY |
MD081627 |
US $3,744 |
||
|
12537
|
12537
MD050082
GASKET, T/C OIL RETURN TUBE
|
MD050082 |
— | ||
| replacement | |||||
|
12537
|
12537
MD194403 GASKET, T/C OIL RETURN TUBE |
MD194403 |
from US $1.81 |
||
|
12538
|
12538
MD069001 GASKET, T/C EXHAUST OUTLET FITTING |
MD069001 |
US $25.90 |
||
|
12617
|
12617
MD075592 TUBE, T/C OIL FEED |
MD075592 |
US $29.60 |
||
|
12617
|
12617
MD083820 TUBE, T/C OIL FEED |
MD083820 |
US $27.38 |
||
|
12621
|
12621
MD075593 TUBE, T/C OIL RETURN |
MD075593 |
US $89.54 |
||
|
12621
|
12621
MD083821 TUBE, T/C OIL RETURN |
MD083821 |
US $90.28 |
||
|
12732P
|
12732P
MD075594
PROTECTOR, T/C
|
MD075594 |
— | ||
|
12739
|
12739
MD050076 WASHER, EXHAUST MANIFOLDPlain,10 |
MD050076 |
from US $1.25 |
||
|
12763P
|
12763P
MD050074 STUD, EXHAUST MANIFOLD10x27 |
MD050074 |
from US $8.26 |
||
|
12775
|
12775
MF472301 PIN, ACCEL CONTROL EQUIPSnap,4x16.3 |
MF472301 |
from US $0.98 |
||
|
12779
|
12779
MD050073 NUT, EXHAUST MANIFOLDJam,10 |
MD050073 |
from US $4.56 |
||
|
12781
|
12781
MD072055 HOSE, T/C4.5x100 |
MD072055 |
US $5.77 |
||
|
12784P
|
12784P
MF660063 GASKET, CYLINDER HEAD PLUGD=10 |
MF660063 |
from US $0.43 |
||
|
12784S
|
12784S
MF660031 GASKET, ENG MECHANICAL GOVERNORD=6 |
MF660031 |
US $1.92 |
||
|
12787
|
12787
MS660159 CLIP, VACUUM PUMPD=7.8 |
MS660159 |
from US $1.64 |
||
|
12795
|
12795
MF650102 EYEBOLT, FUEL LINE10x20 |
MF650102 |
from US $9.03 |
||
|
12797P
|
12797P
MD067956 BOLT, EXHAUST MANIFOLDFlange,8x12 |
MD067956 |
from US $1.23 |
||
|
12797Q
|
12797Q
MD062961 BOLT, CATALYTIC CONVERTER10x31 |
MD062961 |
from US $5.15 |
||
|
12797Q
|
12797Q
MD062962 BOLT, T/C10x62 |
MD062962 |
US $2.96 |
||
|
12797U
|
12797U
MF241233 BOLT, FLYWHEEL HOUSINGWasher assembled,6x35 |
MF241233 |
from US $2.07 |
||
|
12797V
|
12797V
MF241251 BOLT, CYLINDER HEADWasher assembled,8x16 |
MF241251 |
from US $0.98 |
||
|
12797Z
|
12797Z
MF101229 BOLT, TIMING POWER TRAIN CASE6x20 |
MF101229 |
US $3.28 |
||
