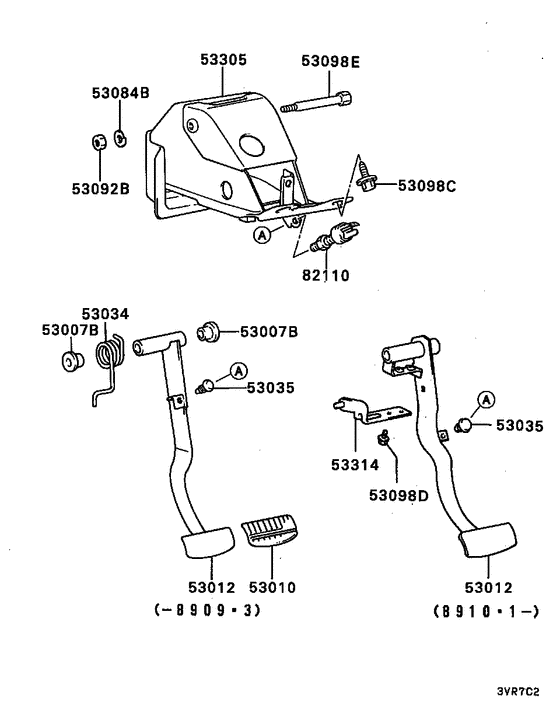

Brake & clutch pedal (A/T) Diagram Mitsubishi MIRAGE WAGON
- Year
- 1989 - 1992
- Sales region
- Japan
- Note
- CE,3FA/T
- drive
- 2WD
- transmission
- 3FA/T
- grade
- CE
- body
- VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53007B
|
53007B
MB316867 BUSHING, BRAKE PEDAL18.3x10 |
MB316867 |
from US $2.28 |
||
|
53010
|
53010
MA126093 PAD, BRAKE PEDAL68x48 |
MA126093 |
from US $3.47 |
||
|
53010
|
53010
MB277874 PAD, BRAKE PEDAL61x112 |
MB277874 |
US $7.99 |
||
|
53012
|
53012
MB277652 PEDAL, BRAKE |
MB277652 |
US $36.26 |
||
|
53012
|
53012
MB599575 PEDAL, BRAKE |
MB599575 |
US $37.74 |
||
|
53034
|
53034
MB316645 SPRING, BRAKE PEDAL RETURN |
MB316645 |
US $6.07 |
||
|
53034
|
53034
MB599579 SPRING, BRAKE PEDAL RETURN |
MB599579 |
US $9.18 |
||
|
53035
|
53035
MB500595 STOPPER, BRAKE PEDAL |
MB500595 |
US $3.55 |
||
|
53084B
|
53084B
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.43 |
||
|
53092B
|
53092B
MF430006 NUT10 |
MF430006 |
from US $1.35 |
||
|
53098C
|
53098C
MS240139 BOLT, STEERING COLUMNWasher assembled,8x20 |
MS240139 |
from US $1.23 |
||
|
53098D
|
53098D
MF243624 BOLTWasher assembled,6x16 |
MF243624 |
from US $0.96 |
||
|
53098E
|
53098E
MB277659 BOLT, CLUTCH PEDAL10x101.6 |
MB277659 |
US $4.44 |
||
|
53305
|
53305
MB277875 MEMBER, PEDAL SUPPORT |
MB277875 |
US $112.48 |
||
|
53305
|
53305
MB534437 MEMBER, PEDAL SUPPORT |
MB534437 |
US $111 |
||
|
53305
|
53305
MB599572 MEMBER, PEDAL SUPPORT |
MB599572 |
US $111.74 |
||
|
53314
|
53314
MB599577 LEVER, BRAKE PEDAL SHIFT LOCK |
MB599577 |
US $9.77 |
||
|
82110
|
82110
MB229024 SWITCH, STOP LAMP |
MB229024 |
from US $13 |
