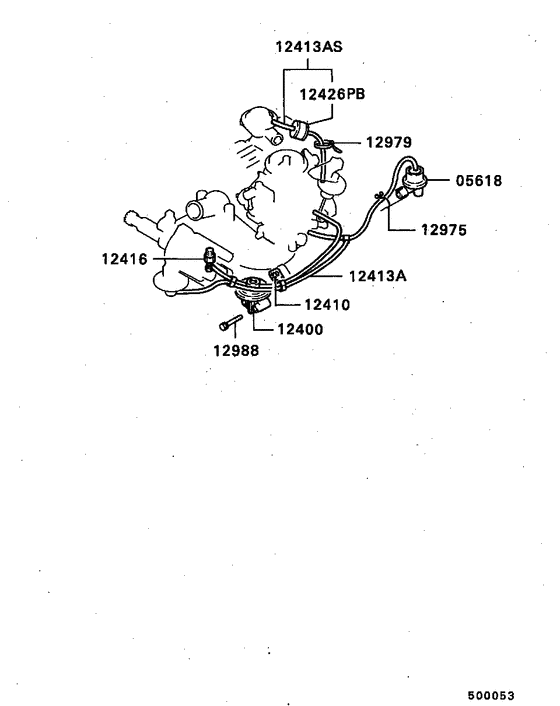

Emission control (W/O TURBO) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 1983 - 1984
- Sales region
- Japan
- Note
- DX-L(METAL-TOP VAN),5FM/T
- transmission
- 5FM/T
- grade
- DX-L
- body
- VAN
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05618
|
05618
MD001917 VALVE, PURGE CONTROL |
MD001917 |
US $64.38 |
||
|
12400
|
12400
MD026685 VALVE, EGR |
MD026685 |
US $84.36 |
||
|
12410
|
12410
MD003358
GASKET, EGR VALVE
|
MD003358 |
— | ||
| replacement | |||||
|
12410
|
12410
MD026567 GASKET, EGR VALVE |
MD026567 |
US $3.28 |
||
|
12410
|
12410
MD026567 GASKET, EGR VALVE |
MD026567 |
US $3.28 |
||
|
12413A
|
12413A
MD060914 HOSE ASSY, EMISSION VACUUM CONTROL |
MD060914 |
US $19.98 |
||
|
12413AS
|
12413AS
MD060913 HOSE ASSY, EMISSION VACUUM CONTROL |
MD060913 |
US $45.88 |
||
|
12413AS
|
12413AS
MD070739 HOSE ASSY, EMISSION VACUUM CONTROL |
MD070739 |
US $40.70 |
||
|
12416
|
12416
MD009228 THERMO-VALVE, EMISSION CONTROL |
MD009228 |
US $56.98 |
||
|
12975
|
12975
MS470362 CLIP, WATER HEATER20 |
MS470362 |
US $2.37 |
||
|
12979
|
12979
MD005473 BAND, ROCKER COVER140 |
MD005473 |
US $3.26 |
||
|
12988
|
12988
MF241236 BOLT, ENG OIL PUMPWasher assembled,6x45 |
MF241236 |
US $1.78 |
||
