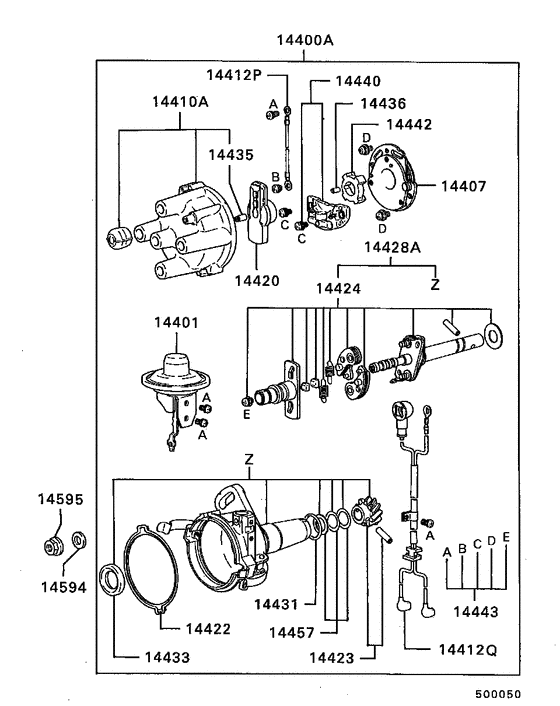

Distributor (8306.1-) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 1988 - 1989
- Sales region
- MMNA
- Note
- HIGH LINE,TRUCK,5FM/T FED
- transmission
- 5FM/T
- grade
- HIGH LINE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14400A
|
14400A
MD027695
DISTRIBUTOR ASSY
|
MD027695 |
— | ||
|
14400A
|
14400A
MD111112
DISTRIBUTOR ASSY
|
MD111112 |
— | ||
|
14401
|
14401
MD607561
ADVANCER,DISTRIBUTOR VACUUM
|
MD607561 |
— | ||
|
14401
|
14401
MD611721
ADVANCER,DISTRIBUTOR VACUUM
|
MD611721 |
— | ||
|
14407
|
14407
MD607470
BREAKER, DISTRIBUTOR CONTACT
|
MD607470 |
— | ||
|
14407
|
14407
MD607965
BREAKER,DISTRIBUTOR CONTACT
|
MD607965 |
— | ||
|
14410A
|
14410A
MD607466
CAP ASSY, DISTRIBUTOR
|
MD607466 |
— | ||
|
14410A
|
14410A
MD607597
CAP ASSY, DISTRIBUTOR
|
MD607597 |
— | ||
| replacement | |||||
|
14410A
|
14410A
T232T46772 CAP ASSY, DISTRIBUTOR |
T232T46772 |
US $19.15 |
||
|
14410A
|
14410A
MD611686
CAP ASSY, DISTRIBUTOR
|
MD611686 |
— | ||
| replacement | |||||
|
14410A
|
14410A
T232T46772 CAP ASSY, DISTRIBUTOR |
T232T46772 |
US $19.15 |
||
|
14412P
|
14412P
MD607806
CABLE, DISTRIBUTOR LEAD
|
MD607806 |
— | ||
|
14412P
|
14412P
MD607964
CABLE,DISTRIBUTOR EARTH
|
MD607964 |
— | ||
|
14412Q
|
14412Q
MD611029
CABLE,DISTRIBUTOR LEAD
|
MD611029 |
— | ||
|
14412Q
|
14412Q
MD611700
CABLE,DISTRIBUTOR LEAD
|
MD611700 |
— | ||
|
14420
|
14420
MD602758
ROTOR, DISTRIBUTOR
|
MD602758 |
— | ||
|
14420
|
14420
MD607467
ROTOR, DISTRIBUTOR
|
MD607467 |
— | ||
|
14422
|
14422
MD607653 GASKET, DISTRIBUTOR CAP |
MD607653 |
US $4.79 |
||
|
14423
|
14423
MD607226
GEAR KIT, DISTRIBUTOR
|
MD607226 |
— | ||
|
14424
|
14424
MD607474
GOVERNOR KIT,DISTRIBUTOR
|
MD607474 |
— | ||
|
14424
|
14424
MD607968
GOVERNOR KIT,DISTRIBUTOR
|
MD607968 |
— | ||
|
14424
|
14424
MD611289
GOVERNOR KIT,DISTRIBUTOR
|
MD611289 |
— | ||
|
14431
|
14431
MD602412
O-RING, DISTRIBUTOR
|
MD602412 |
— | ||
|
14433
|
14433
MD607116
OIL SEAL, DISTRIBUTOR SHAFT
|
MD607116 |
— | ||
|
14433
|
14433
MD607405
OIL SEAL, DISTRIBUTOR SHAFT
|
MD607405 |
— | ||
|
14433
|
14433
MD611847
OIL SEAL, DISTRIBUTOR SHAFT
|
MD611847 |
— | ||
|
14435
|
14435
MD602757
PIECE, DISTRIBUTOR CAP CONTACT
|
MD602757 |
— | ||
|
14436
|
14436
MD607811 PIN, DISTRIBUTOR |
MD607811 |
US $1.33 |
||
|
14440
|
14440
MD607478
IGNITER KIT, DISTRIBUTOR
|
MD607478 |
— | ||
|
14440
|
14440
MD607814
IGNITER KIT, DISTRIBUTOR
|
MD607814 |
— | ||
|
14440
|
14440
MD611384
IGNITER KIT, DISTRIBUTOR
|
MD611384 |
— | ||
|
14442
|
14442
MD611049
ROTOR, DISTRIBUTOR IGNITER SIGNAL
|
MD611049 |
— | ||
|
14443
|
14443
MD607469
SCREW SET, DISTRIBUTOR
|
MD607469 |
— | ||
|
14443
|
14443
MD607966
SCREW SET,DISTRIBUTOR
|
MD607966 |
— | ||
|
14457
|
14457
MD602932
WASHER SET, DISTRIBUTOR GEAR
|
MD602932 |
— | ||
|
14594
|
14594
MD001521 WASHER, TIMING BELT TRAINPlain,8.5 |
MD001521 |
from US $1.25 |
||
|
14594
|
14594
MD001530 WASHER, INJECTION PUMPPlain,8.5 |
MD001530 |
US $2.05 |
||
|
14595
|
14595
MF434104 NUT, ROCKER COVERFlange,8 |
MF434104 |
from US $0.55 |
||
