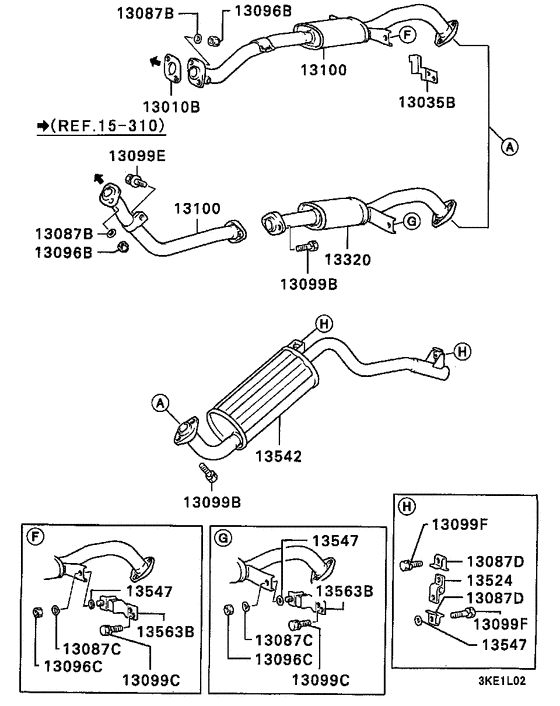

Exhaust pipe & muffler (EXHAUST PIPE & MUFFLER..SINGLE) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 1988 - 1989
- Sales region
- MMNA
- Note
- HIGH LINE,TRUCK,5FM/T FED
- transmission
- 5FM/T
- grade
- HIGH LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13010B
|
13010B
MB687003 GASKET, EXHAUST PIPE |
MB687003 |
US $11.99 |
||
|
13035B
|
13035B
MB313498 PROTECTOR, EXHAUST PIPE SUSPENDER |
MB313498 |
US $15.54 |
||
|
13035B
|
13035B
MB577073 PROTECTOR, EXHAUST PIPE SUSPENDER |
MB577073 |
US $17.02 |
||
|
13087B
|
13087B
MB577050 WASHER, EXHAUST PIPE12.5 |
MB577050 |
from US $5.18 |
||
|
13087B
|
13087B
MF450007 WASHER, CYLINDER HEADPlain,12 |
MF450007 |
from US $0.90 |
||
|
13087C
|
13087C
MF450405 WASHER, CYLINDER HEADSpring,8 |
MF450405 |
from US $0.43 |
||
|
13087D
|
13087D
MB009769 WASHER, EXHAUST PIPESpring,9 |
MB009769 |
US $4.51 |
||
|
13087D
|
13087D
MB577072
WASHER,EXHAUST PIPE
|
MB577072 |
— | ||
|
13096B
|
13096B
MB059359 NUT, CATALYTIC CONVERTERSelf locking,6t,12 |
MB059359 |
from US $2.07 |
||
|
13096C
|
13096C
MF430005 NUT, ROCKER COVER8 |
MF430005 |
from US $1.01 |
||
|
13099B
|
13099B
MF241284 BOLT, CYLINDER BLOCKWasher assembled,10x30 |
MF241284 |
from US $1.31 |
||
|
13099C
|
13099C
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
||
|
13099E
|
13099E
MF244881 BOLT, EXHAUST PIPEWasher assembled,10x28 |
MF244881 |
US $1.50 |
||
|
13099E
|
13099E
MF244882 BOLT, ENG RR MOUNTINGWasher assembled,10x30 |
MF244882 |
from US $1.05 |
||
|
13099F
|
13099F
MF240055 BOLT, CYLINDER HEADWasher assembled,8x25 |
MF240055 |
from US $1.23 |
||
|
13100
|
13100
MB313467
PIPE,EXHAUST,FR
|
MB313467 |
— | ||
|
13100
|
13100
MB313469
PIPE,EXHAUST,FR
|
MB313469 |
— | ||
|
13100
|
13100
MB514100
PIPE,EXHAUST,FR
|
MB514100 |
— | ||
|
13100
|
13100
MB577052
PIPE,EXHAUST,FR
|
MB577052 |
— | ||
|
13320
|
13320
MB179944 PIPE, EXHAUST, CTR |
MB179944 |
US $299.94 |
||
|
13320
|
13320
MB514104 PIPE, EXHAUST, CTR |
MB514104 |
US $187.96 |
||
|
13320
|
13320
MB577056 PIPE, EXHAUST, CTR |
MB577056 |
US $182.04 |
||
|
13524
|
13524
MB009240
HANGER, EXHAUST MUFFLER
|
MB009240 |
— | ||
|
13542
|
13542
MB179948 MUFFLER, EXHAUST MAIN |
MB179948 |
US $275.28 |
||
|
13542
|
13542
MB376490 MUFFLER, EXHAUST MAIN |
MB376490 |
US $311.58 |
||
|
13542
|
13542
MB577058
MUFFLER,EXHAUST MAIN
|
MB577058 |
— | ||
|
13542
|
13542
MB577361 MUFFLER, EXHAUST MAIN |
MB577361 |
US $296 |
||
|
13547
|
13547
MB179166
SEAT, EXHAUST MUFFLER HANGER
|
MB179166 |
— | ||
| replacement | |||||
|
13547
|
13547
MB651931 SEAT, EXHAUST MUFFLER HANGER |
MB651931 |
from US $2.52 |
||
|
13563B
|
13563B
MB252113 SUSPENDER, EXHAUST MUFFLER |
MB252113 |
from US $20.52 |
||
