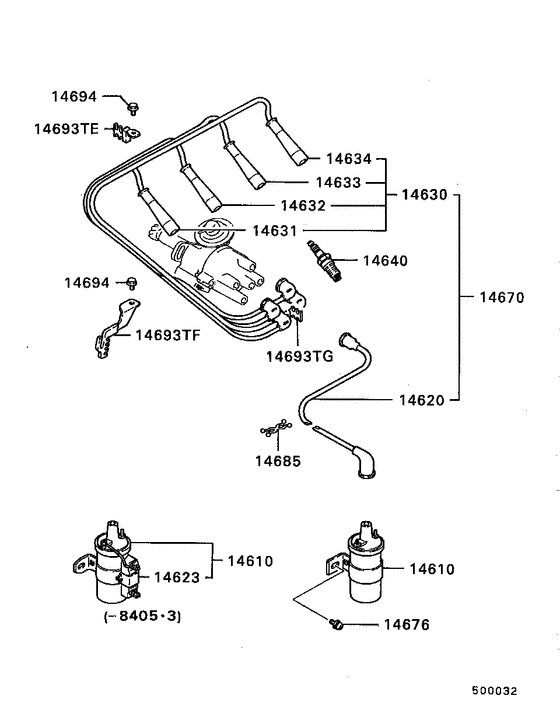

Spark plug,cable & coil (ALL) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 1988 - 1989
- Sales region
- MMNA
- Note
- HIGH LINE,TRUCK,5FM/T FED
- transmission
- 5FM/T
- grade
- HIGH LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14610
|
14610
MD025703
COIL, IGNITION
|
MD025703 |
— | ||
|
14610
|
14610
MD073079
COIL,IGNITION
|
MD073079 |
— | ||
|
14620
|
14620
MD026710 CABLE, HIGH TENSION |
MD026710 |
US $13.76 |
||
|
14620
|
14620
MD071117 CABLE, HIGH TENSION |
MD071117 |
US $15.54 |
||
|
14620
|
14620
MD102130 CABLE, HIGH TENSION |
MD102130 |
US $18.50 |
||
|
14623
|
14623
MD603208 RESISTOR,IGNITION COIL |
MD603208 |
US $34.78 |
||
|
14630
|
14630
MD027766
CABLE SET,SPARK PLUG
|
MD027766 |
— | ||
|
14630
|
14630
MD085766
CABLE SET,SPARK PLUG
|
MD085766 |
— | ||
|
14630
|
14630
MD110790
CABLE SET,SPARK PLUG
|
MD110790 |
— | ||
|
14631
|
14631
MD027714
CABLE,SPARK PLUG,NO.1
|
MD027714 |
— | ||
|
14631
|
14631
MD085733 CABLE, SPARK PLUG, NO.1 |
MD085733 |
US $28.12 |
||
|
14631
|
14631
MD114039
CABLE,SPARK PLUG,NO.1
|
MD114039 |
— | ||
|
14632
|
14632
MD027715
CABLE,SPARK PLUG,NO.2
|
MD027715 |
— | ||
|
14632
|
14632
MD085736 CABLE, SPARK PLUG, NO.2 |
MD085736 |
US $31.08 |
||
|
14632
|
14632
MD114040
CABLE,SPARK PLUG,NO.2
|
MD114040 |
— | ||
|
14633
|
14633
MD027716
CABLE,SPARK PLUG,NO.3
|
MD027716 |
— | ||
|
14633
|
14633
MD085738 CABLE, SPARK PLUG, NO.3 |
MD085738 |
US $34.04 |
||
|
14633
|
14633
MD114041
CABLE,SPARK PLUG,NO.3
|
MD114041 |
— | ||
|
14634
|
14634
MD027717
CABLE,SPARK PLUG,NO.4
|
MD027717 |
— | ||
|
14634
|
14634
MD085763 CABLE, SPARK PLUG, NO.4 |
MD085763 |
US $34.04 |
||
|
14634
|
14634
MD114042
CABLE,SPARK PLUG,NO.4
|
MD114042 |
— | ||
|
14640
|
14640
MS851187 Spark PlugBp5es-11 |
MS851187 |
US $6.81 |
||
|
14640
|
14640
MS851188 Spark PlugBp6es-11 |
MS851188 |
US $6.51 |
||
|
14640
|
14640
MS851237 Spark PlugBpr5es-11 |
MS851237 |
from US $6.10 |
||
|
14640
|
14640
MS851238 Spark PlugBpr6es-11 |
MS851238 |
US $6.66 |
||
|
14640
|
14640
MS851407
Spark Plug
|
MS851407 |
— | ||
|
14640
|
14640
MS851408
Spark Plug
|
MS851408 |
— | ||
|
14640
|
14640
MS851418 Spark PlugW20epr11 |
MS851418 |
US $6.66 |
||
|
14640
|
14640
MS851432
Spark Plug
|
MS851432 |
— | ||
|
14640
|
14640
MS851433
Spark Plug
|
MS851433 |
— | ||
|
14640
|
14640
MS851515
Spark Plug
|
MS851515 |
— | ||
|
14640
|
14640
MS851525
Spark Plug
|
MS851525 |
— | ||
|
14640
|
14640
MS851551
Spark Plug
|
MS851551 |
— | ||
|
14670
|
14670
MD997359
CABLE SET,SPARK PLUG & HIGH TENSION
|
MD997359 |
— | ||
|
14676
|
14676
MS350169 SCREW, ENG CONTROL EQUIPWasher assembled,6x16 |
MS350169 |
from US $2.07 |
||
|
14685
|
14685
MS470365
CLIP, ACCEL CONTROL EQUIP
|
MS470365 |
— | ||
|
14693TE
|
14693TE
MD001790
SUPPORT, IGNITION COIL MOUNTING
|
MD001790 |
— | ||
|
14693TF
|
14693TF
MD027741
SUPPORT,SPARK PLUG CABLE
|
MD027741 |
— | ||
|
14693TG
|
14693TG
MD001795 SUPPORT, SPARK PLUG CABLE |
MD001795 |
US $6.84 |
||
|
14694
|
14694
MF140202 BOLT, FLANGE (6x10)Flange,6x10 |
MF140202 |
from US $1.66 |
||
|
14694
|
14694
MF140722 BOLT, ACCEL CABLE SUPPORTFlange,6x10 |
MF140722 |
US $3.28 |
