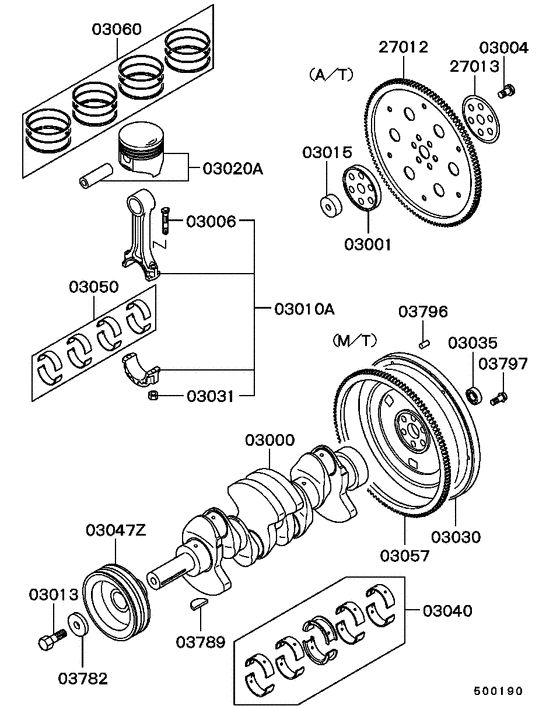

Piston & crankshaft (ALL) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 1985 - 1988
- Sales region
- MMNA
- Note
- LOW LINE,TRUCK,5FM/T FED
- transmission
- 5FM/T
- grade
- LOW LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
03000
|
03000
MD026408 CRANKSHAFT |
MD026408 |
US $1,612.80 |
||
|
03000
|
03000
MD026813
CRANKSHAFT
|
MD026813 |
— | ||
|
03004
|
03004
MD952233 BOLT, A/T DRIVE PLATE12x17 |
MD952233 |
from US $2.07 |
||
|
03004
|
03004
MD952234 BOLT, A/T DRIVE PLATE |
MD952234 |
US $5.62 |
||
|
03006
|
03006
MD021105 BOLT, CONNROD9x57.5 |
MD021105 |
from US $5.71 |
||
|
03010A
|
03010A
MD020855 CONNECTING ROD ASSY |
MD020855 |
US $224.35 |
||
|
03013
|
03013
MD020830 CENTER BOLT, CRANKSHAFT PULLEY14x40 |
MD020830 |
US $5.62 |
||
|
03020A
|
03020A
MD026921 PISTON & PIN ASSY |
MD026921 |
from US $87.96 |
||
|
03020A
|
03020A
MD026931 PISTON & PIN ASSY |
MD026931 |
US $117.66 |
||
|
03020A
|
03020A
MD026932 PISTON & PIN ASSY |
MD026932 |
from US $91.88 |
||
|
03020A
|
03020A
MD026933 PISTON & PIN ASSY |
MD026933 |
US $117.66 |
||
|
03020A
|
03020A
MD026934 PISTON & PIN ASSY |
MD026934 |
from US $66.71 |
||
|
03020A
|
03020A
MD071172
PISTON & PIN ASSY
|
MD071172 |
— | ||
|
03020A
|
03020A
MD071174
PISTON & PIN ASSY
|
MD071174 |
— | ||
|
03020A
|
03020A
MD071175
PISTON & PIN ASSY
|
MD071175 |
— | ||
|
03020A
|
03020A
MD071176
PISTON & PIN ASSY
|
MD071176 |
— | ||
|
03020A
|
03020A
MD071177
PISTON & PIN ASSY
|
MD071177 |
— | ||
|
03030
|
03030
MD026786 FLYWHEEL |
MD026786 |
US $214.60 |
||
|
03031
|
03031
MD006704 NUT, CONNROD9 |
MD006704 |
from US $4.33 |
||
|
03035
|
03035
MD002613
BEARING, FLYWHEEL DRIVE PINION
|
MD002613 |
— | ||
| replacement | |||||
|
03035
|
03035
MD335444 BEARING, FLYWHEEL DRIVE PINIONBall |
MD335444 |
from US $7.45 |
||
|
03040
|
03040
MD026815 BEARING SET, CRANKSHAFTPlain,std |
MD026815 |
US $128.76 |
||
|
03040
|
03040
MD026816 BEARING SET,CRANKSHAFT |
MD026816 |
from US $62.91 |
||
|
03040
|
03040
MD026817 BEARING SET,CRANKSHAFT |
MD026817 |
from US $62.91 |
||
|
03040
|
03040
MD026818 BEARING SET,CRANKSHAFT |
MD026818 |
US $128.76 |
||
|
03047Z
|
03047Z
MD021169
PULLEY,CRANKSHAFT
|
MD021169 |
— | ||
|
03047Z
|
03047Z
MD074403 PULLEY,CRANKSHAFT DAMPER |
MD074403 |
US $179.08 |
||
|
03050
|
03050
MD026430
BEARING SET, CONNROD
|
MD026430 |
— | ||
| replacement | |||||
|
03050
|
03050
MD153622 BEARING SET, CONNRODPlain,std |
MD153622 |
from US $68.29 |
||
|
03050
|
03050
MD026431 BEARING SET, CONNRODPlain,u/size 0.25 |
MD026431 |
from US $91.94 |
||
|
03050
|
03050
MD026432 BEARING SET, CONNRODPlain,u/size 0.50 |
MD026432 |
from US $52.53 |
||
|
03050
|
03050
MD026433 BEARING SET, CONNRODPlain,u/size 0.75 |
MD026433 |
US $109.52 |
||
|
03057
|
03057
MD024812 RING GEAR, FLYWHEELN=120 |
MD024812 |
from US $118.33 |
||
|
03060
|
03060
MD026835 RING SET,PISTON |
MD026835 |
US $198.32 |
||
|
03060
|
03060
MD026836 RING SET,PISTON |
MD026836 |
US $198.32 |
||
|
03060
|
03060
MD026837 RING SET,PISTON |
MD026837 |
US $198.32 |
||
|
03060
|
03060
MD026838 RING SET,PISTON |
MD026838 |
US $198.32 |
||
|
03060
|
03060
MD026839 RING SET,PISTON |
MD026839 |
US $198.32 |
||
|
03060
|
03060
MD061258 RING SET, PISTONStd |
MD061258 |
US $254.56 |
||
|
03060
|
03060
MD061259 RING SET, PISTONO/size 0.25 |
MD061259 |
US $264.92 |
||
|
03060
|
03060
MD061260 RING SET, PISTONO/size 0.50 |
MD061260 |
US $254.56 |
||
|
03060
|
03060
MD061261 RING SET, PISTONO/size 0.75 |
MD061261 |
US $264.92 |
||
|
03060
|
03060
MD061262 RING SET, PISTONO/size 1.00 |
MD061262 |
US $254.56 |
||
|
03782
|
03782
MD020831 WASHER, CRANKSHAFT PULLEYPlain,14.5 |
MD020831 |
US $5.62 |
||
|
03789
|
03789
MD000606 KEY, TIMING BELT TRAINWoodruff,5x9.6 |
MD000606 |
from US $2.26 |
||
|
03796
|
03796
MF472404 PIN, CYLINDER BLOCKDowel,8x18 |
MF472404 |
from US $2.61 |
||
|
03797
|
03797
MD008839 BOLT, FLYWHEELFlange,12x26 |
MD008839 |
from US $2.87 |
||
