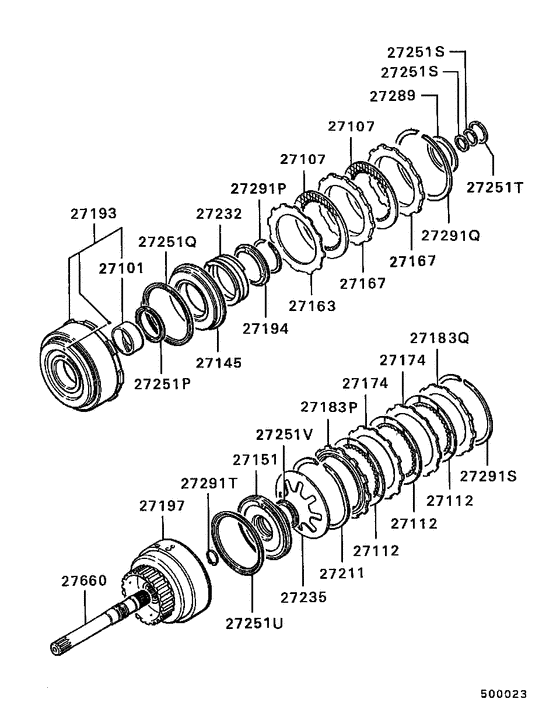

A/t clutch (3-SPEED) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 1983 - 1986
- Sales region
- MMNA
- Note
- HIGH LINE,VAN,3FA/T FED
- transmission
- 3FA/T
- grade
- HIGH LINE
- body
- VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27101
|
27101
M2801727 BUSHING,A/T CLUTCH |
M2801727 |
US $42.18 |
||
|
27107
|
27107
M2400625 DISC,A/T FR CLUTCH |
M2400625 |
US $29.60 |
||
|
27107
|
27107
M4329805 DISC,A/T FR CLUTCH |
M4329805 |
US $28.86 |
||
|
27112
|
27112
M2892551 DISC,A/T RR CLUTCH |
M2892551 |
US $48.84 |
||
|
27145
|
27145
M3743090 PISTON,A/T FR CLUTCH |
M3743090 |
US $127.28 |
||
|
27151
|
27151
M3515716 PISTON,A/T RR CLUTCH |
M3515716 |
US $158.36 |
||
|
27163
|
27163
M1942403 PLATE,A/T RR CLUTCH |
M1942403 |
US $37.74 |
||
|
27167
|
27167
M2801969 PLATE,A/T FR CLUTCH PRESSURE |
M2801969 |
US $88.80 |
||
|
27174
|
27174
M1942403 PLATE,A/T RR CLUTCH |
M1942403 |
US $37.74 |
||
|
27183P
|
27183P
M2466281 PLATE,A/T RR CLUTCH PRESSURE |
M2466281 |
US $77.70 |
||
|
27183Q
|
27183Q
M2801969 PLATE,A/T FR CLUTCH PRESSURE |
M2801969 |
US $88.80 |
||
|
27193
|
27193
M3515706 RETAINER,A/T FR CLUTCH |
M3515706 |
US $598.42 |
||
|
27194
|
27194
M1942399 RETAINER,A/T FR CLUTCH SPRING |
M1942399 |
US $9.62 |
||
|
27197
|
27197
M4130765 RETAINER,A/T RR CLUTCH |
M4130765 |
US $532.90 |
||
|
27211
|
27211
M2466283 RING,A/T RR CLUTCH SPRING RETAINING |
M2466283 |
US $22.20 |
||
|
27232
|
27232
M3515054 SPRING,A/T FR CLUTCH PISTON |
M3515054 |
US $31.82 |
||
|
27235
|
27235
M1942414 SPRING,A/T RR CLUTCH PISTON |
M1942414 |
US $34.04 |
||
|
27251P
|
27251P
M3515176 SEAL RING,A/T CLUTCH |
M3515176 |
US $14.36 |
||
|
27251Q
|
27251Q
M4058487 SEAL RING,A/T CLUTCH |
M4058487 |
US $14.36 |
||
|
27251S
|
27251S
M1401221 SEAL RING,A/T CLUTCH |
M1401221 |
US $12.28 |
||
|
27251T
|
27251T
M4028333 SEAL RING,A/T CLUTCH |
M4028333 |
US $11.25 |
||
|
27251U
|
27251U
M2538695 SEAL RING,A/T CLUTCH |
M2538695 |
US $18.50 |
||
|
27251V
|
27251V
M2538510 SEAL RING,A/T CLUTCH |
M2538510 |
US $14.36 |
||
|
27289
|
27289
M3410572 THRUST WASHER,A/T CLUTCH |
M3410572 |
US $6.36 |
||
|
27291P
|
27291P
M1942400 SNAP RING,A/T |
M1942400 |
US $4 |
||
|
27291Q
|
27291Q
M3410571 SNAP RING,A/T |
M3410571 |
US $9.62 |
||
|
27291S
|
27291S
M4130761 SNAP RING,A/T |
M4130761 |
US $12.28 |
||
|
27291S
|
27291S
M4130762 SNAP RING,A/T |
M4130762 |
US $12.28 |
||
|
27291S
|
27291S
M4130763 SNAP RING,A/T |
M4130763 |
US $10.36 |
||
|
27291T
|
27291T
M6022859 SNAP RING,A/T |
M6022859 |
US $3.55 |
||
|
27660
|
27660
M4269140 SHAFT,A/T INPUT |
M4269140 |
US $284.16 |
