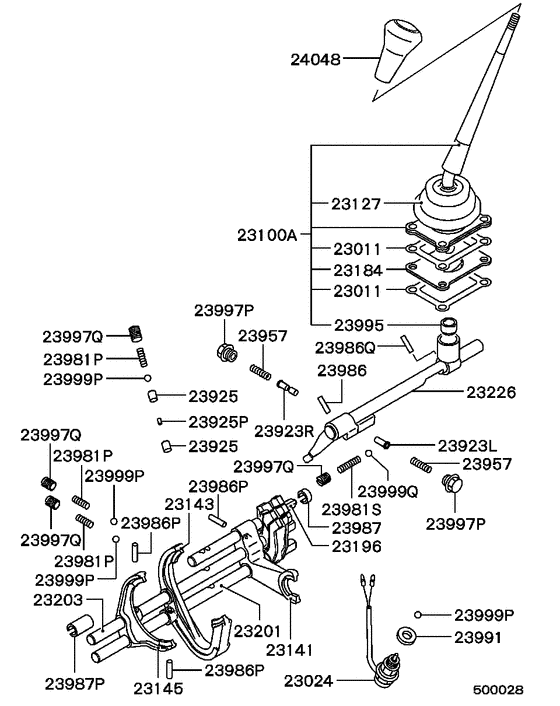

M/t gearshift control (4-SPEED) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 1983 - 1984
- Sales region
- Japan
- Note
- DX-L(METAL-TOP VAN),4FM/T
- transmission
- 4FM/T
- grade
- DX-L
- body
- VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23011
|
23011
MD704190 GASKET, M/T GEARSHIFT LEVER COVER |
MD704190 |
from US $2.11 |
||
|
23024
|
23024
MD700198
SWITCH, M/T GEARSHIFT BACKUP LAMP
|
MD700198 |
— | ||
| replacement | |||||
|
23024
|
23024
8614A189 SWITCH, M/T GEARSHIFT BACKUP LAMP |
8614A189 |
from US $80.71 |
||
|
23100A
|
23100A
MD700033 LEVER ASSY, M/T GEARSHIFT |
MD700033 |
US $266.40 |
||
|
23127
|
23127
MD703619 COVER, M/T GEARSHIFT LEVER SPRING |
MD703619 |
from US $4.92 |
||
|
23141
|
23141
MD705577 FORK, M/T GEARSHIFT REV |
MD705577 |
US $89.54 |
||
|
23143
|
23143
MD705481 FORK, M/T GEARSHIFT 1ST & 2ND |
MD705481 |
US $71.04 |
||
|
23143
|
23143
MD718064
FORK, M/T GEARSHIFT 1ST & 2ND
|
MD718064 |
— | ||
|
23145
|
23145
MD703555 FORK, M/T GEARSHIFT 3RD & 4TH |
MD703555 |
US $47.36 |
||
|
23145
|
23145
MD705484 FORK, M/T GEARSHIFT 3RD & 4TH |
MD705484 |
US $70.30 |
||
|
23184
|
23184
MD704191 PLATE, M/T GEARSHIFT LEVER STOPPER |
MD704191 |
US $24.42 |
||
|
23196
|
23196
MD715052 RAIL, M/T GEARSHIFT REV |
MD715052 |
US $81.40 |
||
|
23201
|
23201
MD704176 RAIL, M/T GEARSHIFT 1ST & 2ND |
MD704176 |
US $75.48 |
||
|
23203
|
23203
MD712250 RAIL, M/T GEARSHIFT 3RD & 4TH |
MD712250 |
US $74.74 |
||
|
23226
|
23226
MD704171 SHAFT KIT, M/T GEARSHIFT |
MD704171 |
US $174.64 |
||
|
23226
|
23226
MD715204 SHAFT KIT, M/T GEARSHIFT |
MD715204 |
US $174.64 |
||
|
23226
|
23226
MD716857 SHAFT KIT, M/T GEARSHIFT |
MD716857 |
US $174.64 |
||
|
23923L
|
23923L
MD703610 PLUNGER, M/T GEARSHIFT NEUTRAL RETURN, RH |
MD703610 |
US $5.34 |
||
|
23923R
|
23923R
MD703611 PLUNGER, M/T GEARSHIFT NEUTRAL RETURN, LH |
MD703611 |
US $6.84 |
||
|
23923R
|
23923R
MD704174 PLUNGER, M/T GEARSHIFT NEUTRAL RETURN, RH |
MD704174 |
US $6.36 |
||
|
23925
|
23925
MD701550 PLUNGER, M/T GEARSHIFT RAIL INTERLOCK |
MD701550 |
US $4.51 |
||
|
23957
|
23957
MD703613 SPRING, M/T GEARSHIFT NEUTRAL RETURN |
MD703613 |
from US $1.68 |
||
|
23957
|
23957
MD704194 SPRING, M/T GEARSHIFT NEUTRAL RETURN |
MD704194 |
US $3.11 |
||
|
23981P
|
23981P
MD701549 SPRING, M/T GEARSHIFT EQUIP |
MD701549 |
from US $1.93 |
||
|
23981S
|
23981S
MD703614 SPRING, M/T GEARSHIFT EQUIP |
MD703614 |
from US $2.01 |
||
|
23986
|
23986
MD705490 PIN, M/T GEARSHIFT EQUIPLock,5x22 |
MD705490 |
from US $1.31 |
||
|
23986P
|
23986P
MF472572 SPRING PIN, M/T CLUTCH CONTROL EQUIP5x22 |
MF472572 |
from US $0.82 |
||
|
23986Q
|
23986Q
MD705490 PIN, M/T GEARSHIFT EQUIPLock,5x22 |
MD705490 |
from US $1.31 |
||
|
23986Q
|
23986Q
MF472591 PIN, M/T GEARSHIFT EQUIPSpring,6x25 |
MF472591 |
from US $1.37 |
||
|
23987
|
23987
MD704230 SPACER, M/T GEARSHIFT EQUIP9.5 |
MD704230 |
US $6.07 |
||
|
23987P
|
23987P
MD705846 SPACER, M/T GEARSHIFT EQUIP32.5 |
MD705846 |
US $5.62 |
||
|
23991
|
23991
MF660034 GASKET, CYLINDER BLOCKD=12 |
MF660034 |
from US $0.25 |
||
|
23995
|
23995
MD701577 BUSHING, M/T GEARSHIFT EQUIP18x12 |
MD701577 |
from US $2.48 |
||
|
23997P
|
23997P
MD700627 PLUG, M/T CASE14x10 |
MD700627 |
from US $3.51 |
||
|
23997P
|
23997P
MD701802 PLUG, M/T CASE14 |
MD701802 |
US $5.18 |
||
|
23997Q
|
23997Q
MD701799 PLUG, M/T GEARSHIFT EQUIP10 |
MD701799 |
from US $3.51 |
||
|
23999P
|
23999P
MF540010 BALL, CAMSHAFT5/16 |
MF540010 |
from US $1.31 |
||
|
23999Q
|
23999Q
MF540008 BALL, CYLINDER HEAD1/4 |
MF540008 |
from US $1.31 |
||
|
24048
|
24048
MB013205 KNOB, GEARSHIFT LEVER4m/t |
MB013205 |
US $69.56 |
||
