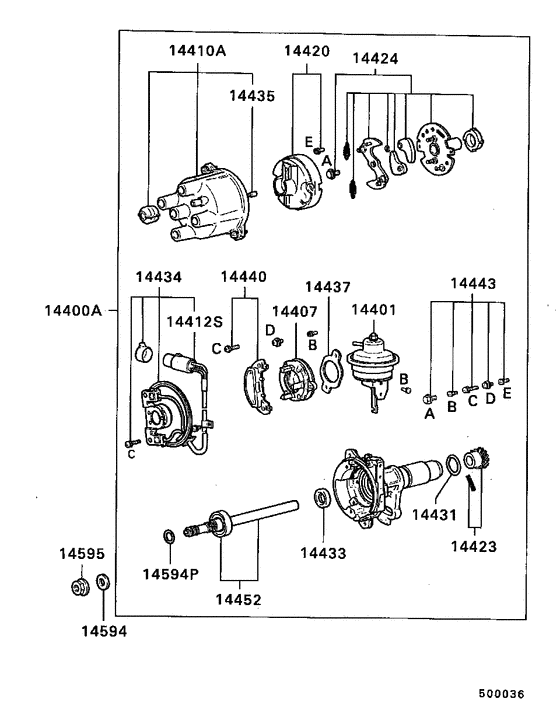

Distributor (W/TURBO) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 1983 - 1987
- Sales region
- Japan
- Note
- XL(TURBO/HIGH-ROOF WAGON),5FM/T
- transmission
- 5FM/T
- grade
- XL
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14400A
|
14400A
MD066836 DISTRIBUTOR ASSY |
MD066836 |
US $410.59 |
||
|
14400A
|
14400A
MD066837
DISTRIBUTOR ASSY
|
MD066837 |
— | ||
|
14400A
|
14400A
MD109936 DISTRIBUTOR ASSY |
MD109936 |
US $393.12 |
||
|
14401
|
14401
MD607586
ADVANCER, DISTRIBUTOR VACUUM
|
MD607586 |
— | ||
|
14401
|
14401
MD607674
ADVANCER, DISTRIBUTOR VACUUM
|
MD607674 |
— | ||
|
14401
|
14401
MD611356
ADVANCER, DISTRIBUTOR VACUUM
|
MD611356 |
— | ||
|
14407
|
14407
MD607470
BREAKER, DISTRIBUTOR CONTACT
|
MD607470 |
— | ||
|
14410A
|
14410A
MD607466
CAP ASSY, DISTRIBUTOR
|
MD607466 |
— | ||
|
14410A
|
14410A
MD611605
CAP ASSY, DISTRIBUTOR
|
MD611605 |
— | ||
|
14412S
|
14412S
MD607803
CABLE, DISTRIBUTOR LEAD
|
MD607803 |
— | ||
|
14412S
|
14412S
MD611535
CABLE, DISTRIBUTOR LEAD
|
MD611535 |
— | ||
|
14420
|
14420
MD607467
ROTOR, DISTRIBUTOR
|
MD607467 |
— | ||
|
14423
|
14423
MD607226
GEAR KIT, DISTRIBUTOR
|
MD607226 |
— | ||
|
14424
|
14424
MD607672
GOVERNOR KIT, DISTRIBUTOR
|
MD607672 |
— | ||
|
14424
|
14424
MD607673
GOVERNOR KIT, DISTRIBUTOR
|
MD607673 |
— | ||
|
14431
|
14431
MD602412
O-RING, DISTRIBUTOR
|
MD602412 |
— | ||
|
14433
|
14433
MD607405
OIL SEAL, DISTRIBUTOR SHAFT
|
MD607405 |
— | ||
|
14433
|
14433
MD611845
OIL SEAL, DISTRIBUTOR SHAFT
|
MD611845 |
— | ||
|
14434
|
14434
MD607804
PICKUP KIT, DISTRIBUTOR
|
MD607804 |
— | ||
|
14434
|
14434
MD611534
PICKUP KIT, DISTRIBUTOR
|
MD611534 |
— | ||
|
14435
|
14435
MD602757
PIECE, DISTRIBUTOR CAP CONTACT
|
MD602757 |
— | ||
|
14437
|
14437
MD607359
PLATE, DISTRIBUTOR SHAFT BEARING RETAINER
|
MD607359 |
— | ||
|
14440
|
14440
MD607588
IGNITER KIT, DISTRIBUTOR
|
MD607588 |
— | ||
|
14443
|
14443
MD607469
SCREW SET, DISTRIBUTOR
|
MD607469 |
— | ||
|
14452
|
14452
MD607484
SHAFT, DISTRIBUTOR
|
MD607484 |
— | ||
|
14594
|
14594
MD001521 WASHER, TIMING BELT TRAINPlain,8.5 |
MD001521 |
from US $1.25 |
||
|
14594
|
14594
MD001530 WASHER, INJECTION PUMPPlain,8.5 |
MD001530 |
US $2.05 |
||
|
14594P
|
14594P
MD607472
WASHER, DISTRIBUTOR
|
MD607472 |
— | ||
|
14595
|
14595
MF434104 NUT, ROCKER COVERFlange,8 |
MF434104 |
from US $0.55 |
