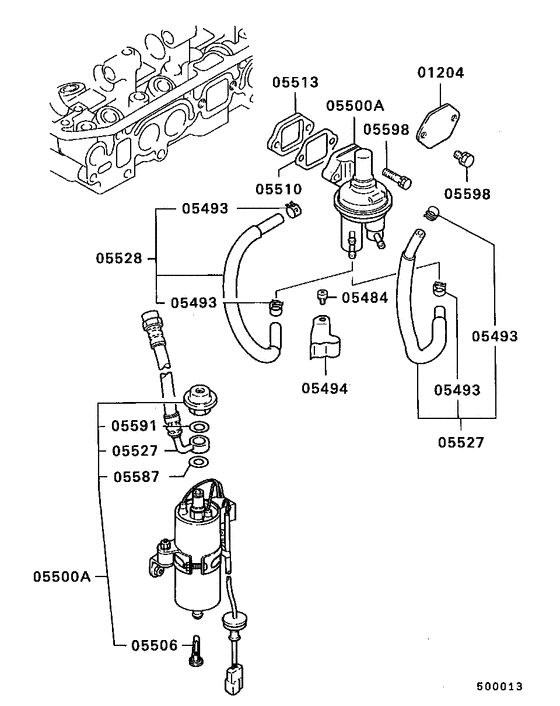

Fuel Pump Diagram Mitsubishi PAJERO/MONTERO
- Year
- 1983 - 1987
- Sales region
- Japan
- Note
- XL(TURBO/HIGH-ROOF WAGON),5FM/T
- transmission
- 5FM/T
- grade
- XL
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01204
|
01204
MD041261 COVER, CYLINDER HEAD FUEL PUMP HOLE |
MD041261 |
US $7.55 |
||
|
05500A
|
05500A
MD067159 FUEL PUMP ASSY |
MD067159 |
US $608.61 |
||
|
05506
|
05506
MD604392
FILTER, FUEL PUMP
|
MD604392 |
— | ||
|
05527
|
05527
MD067158
HOSE KIT, FUEL PUMP FUEL FEED
|
MD067158 |
— | ||
|
05527
|
05527
MD102217 HOSE KIT, FUEL PUMP FUEL FEED |
MD102217 |
US $156.88 |
||
|
05587
|
05587
MD604384 WASHER, ELECTRIC FUEL PUMP |
MD604384 |
US $1.48 |
||
|
05591
|
05591
MD604383 GASKET, ELECTRIC FUEL PUMP |
MD604383 |
US $2.37 |
||
|
05598
|
05598
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
