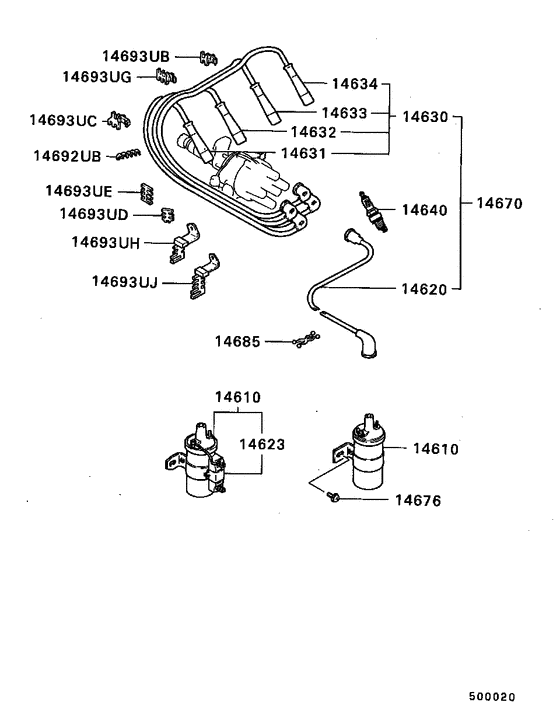

Spark plug,cable & coil (ALL) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 1983 - 1987
- Sales region
- Japan
- Note
- XL(TURBO/HIGH-ROOF WAGON),5FM/T
- transmission
- 5FM/T
- grade
- XL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14610
|
14610
MD025703
COIL, IGNITION
|
MD025703 |
— | ||
|
14620
|
14620
MD071117 CABLE, HIGH TENSION |
MD071117 |
US $15.54 |
||
|
14620
|
14620
MD116267 CABLE, HIGH TENSION |
MD116267 |
US $13.76 |
||
|
14630
|
14630
MD063407 CABLE SET, SPARK PLUG |
MD063407 |
US $118.40 |
||
|
14630
|
14630
MD085765 CABLE SET, SPARK PLUG |
MD085765 |
US $106.56 |
||
|
14630
|
14630
MD116270 CABLE SET, SPARK PLUG |
MD116270 |
US $107.30 |
||
|
14631
|
14631
MD031640 CABLE, SPARK PLUG, NO.1 |
MD031640 |
US $45.88 |
||
|
14631
|
14631
MD085732 CABLE, SPARK PLUG, NO.1 |
MD085732 |
US $33.30 |
||
|
14631
|
14631
MD116271 CABLE, SPARK PLUG, NO.1 |
MD116271 |
US $33.30 |
||
|
14632
|
14632
MD061098 CABLE, SPARK PLUG, NO.2 |
MD061098 |
US $34.78 |
||
|
14632
|
14632
MD085735 CABLE, SPARK PLUG, NO.2 |
MD085735 |
US $34.04 |
||
|
14632
|
14632
MD116272 CABLE, SPARK PLUG, NO.2 |
MD116272 |
US $33.30 |
||
|
14633
|
14633
MD027792 CABLE, SPARK PLUG, NO.3 |
MD027792 |
US $34.04 |
||
|
14633
|
14633
MD077713 CABLE, SPARK PLUG, NO.3 |
MD077713 |
US $48.84 |
||
|
14633
|
14633
MD085738 CABLE, SPARK PLUG, NO.3 |
MD085738 |
US $34.04 |
||
|
14633
|
14633
MD116273 CABLE, SPARK PLUG, NO.3 |
MD116273 |
US $33.30 |
||
|
14634
|
14634
MD027793 CABLE, SPARK PLUG, NO.4 |
MD027793 |
US $35.52 |
||
|
14634
|
14634
MD077714 CABLE, SPARK PLUG, NO.4 |
MD077714 |
US $48.84 |
||
|
14634
|
14634
MD085763 CABLE, SPARK PLUG, NO.4 |
MD085763 |
US $34.04 |
||
|
14634
|
14634
MD116274 CABLE, SPARK PLUG, NO.4 |
MD116274 |
US $33.30 |
||
|
14640
|
14640
MS851029 Spark PlugW22ep-11 |
MS851029 |
US $6.07 |
||
|
14640
|
14640
MS851189 Spark PlugBp7es-11 |
MS851189 |
US $6.07 |
||
|
14670
|
14670
MD997355 CABLE SET, SPARK PLUG & HIGH TENSION |
MD997355 |
US $124.32 |
||
|
14670
|
14670
MD997425 CABLE SET, SPARK PLUG & HIGH TENSION |
MD997425 |
US $125.80 |
||
|
14676
|
14676
MS350169 SCREW, ENG CONTROL EQUIPWasher assembled,6x16 |
MS350169 |
from US $2.07 |
||
|
14685
|
14685
MS470365
CLIP, ACCEL CONTROL EQUIP
|
MS470365 |
— | ||
|
14692UB
|
14692UB
MD023848 CLAMP, ENG CONTROL EQUIP |
MD023848 |
US $2.81 |
||
|
14693UB
|
14693UB
MD041672 SUPPORT, SPARK PLUG CABLE |
MD041672 |
US $6.07 |
||
|
14693UB
|
14693UB
MD086598 SUPPORT, SPARK PLUG CABLE |
MD086598 |
US $6.02 |
||
|
14693UC
|
14693UC
MD041674
SUPPORT, SPARK PLUG CABLE
|
MD041674 |
— | ||
| replacement | |||||
|
14693UC
|
14693UC
MD086599 SUPPORT, SPARK PLUG CABLE |
MD086599 |
from US $3.26 |
||
|
14693UC
|
14693UC
MD086599 SUPPORT, SPARK PLUG CABLE |
MD086599 |
from US $3.26 |
||
|
14693UE
|
14693UE
MD041676
SUPPORT, SPARK PLUG CABLE
|
MD041676 |
— | ||
|
14693UJ
|
14693UJ
MD041675 SUPPORT, SPARK PLUG CABLE |
MD041675 |
US $10.21 |
||
