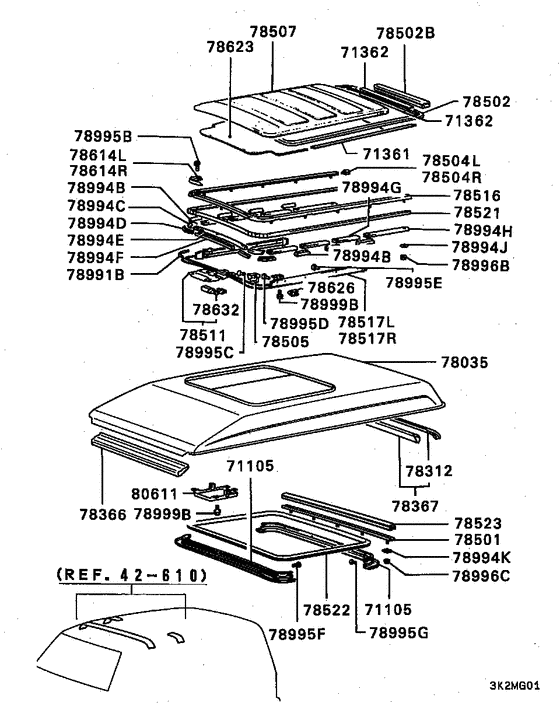

Roof & lid (SUN ROOF..STD ROOF) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 1986 - 1988
- Sales region
- EUR
- Note
- HIGH-ROOF(TURBO),5FM/T LHD
- transmission
- 5FM/T
- grade
- HIGH-ROOF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71105
|
71105
MB177868 MOULDING, SLIDING ROOF |
MB177868 |
US $142.82 |
||
|
71361
|
71361
MB177872 TAPE, SLIDING ROOF SEAL SIDE |
MB177872 |
US $28.12 |
||
|
71362
|
71362
MB282538
TAPE,SLIDING ROOF SEAL,RR
|
MB282538 |
— | ||
|
78035
|
78035
MB275429 PANEL, ROOF |
MB275429 |
US $1,684.80 |
||
|
78035
|
78035
MB275430 PANEL, ROOF |
MB275430 |
US $1,526.40 |
||
|
78035
|
78035
MB275646 PANEL, ROOF |
MB275646 |
US $1,540.80 |
||
|
78312
|
78312
MB275434 CHANNEL, DRIP, RR |
MB275434 |
US $45.88 |
||
|
78366
|
78366
MB275623 RAIL, ROOF, FR |
MB275623 |
US $125.06 |
||
|
78366
|
78366
MB408955 RAIL, ROOF, FR |
MB408955 |
US $133.20 |
||
|
78367
|
78367
MB275432 RAIL, ROOF, RR |
MB275432 |
US $145.78 |
||
|
78501
|
78501
MB177798 CHANNEL, SLIDING ROOF |
MB177798 |
US $54.02 |
||
|
78502
|
78502
MB177786 COVER, SLIDING ROOF EDGE |
MB177786 |
US $113.96 |
||
|
78502B
|
78502B
MB282537
COVER,SLIDING ROOF EDGE
|
MB282537 |
— | ||
|
78504L
|
78504L
MB177857 COVER, SLIDING ROOF RAIL, LH |
MB177857 |
US $8.14 |
||
|
78504R
|
78504R
MB177858 COVER, SLIDING ROOF RAIL, RH |
MB177858 |
US $8.14 |
||
|
78505
|
78505
MB177810 COVER, SLIDING ROOF SHOE |
MB177810 |
US $6.07 |
||
|
78507
|
78507
MB137451 LID, SLIDING ROOF |
MB137451 |
US $678.50 |
||
|
78511
|
78511
MB177827 OPERATING UNIT, SLIDING ROOF |
MB177827 |
US $1,112.38 |
||
|
78516
|
78516
MB177789 RAIL, SLIDING ROOF |
MB177789 |
US $538.72 |
||
|
78517L
|
78517L
MB177825 RAIL, SLIDING ROOF GUIDE, LH |
MB177825 |
US $142.08 |
||
|
78517R
|
78517R
MB177826 RAIL, SLIDING ROOF GUIDE, RH |
MB177826 |
US $142.08 |
||
|
78521
|
78521
MB177792 RUNCHANNEL, SLIDING ROOF LID |
MB177792 |
US $168.72 |
||
|
78522
|
78522
MB177795 WEATHERSTRIP, SLIDING ROOF OPENING |
MB177795 |
US $176.12 |
||
|
78523
|
78523
MB177796 WEATHERSTRIP, SLIDING ROOF, RR |
MB177796 |
US $84.36 |
||
|
78614L
|
78614L
MB282813 DEFLECTOR, SUNROOF FR CORNER, LH |
MB282813 |
US $53.28 |
||
|
78614R
|
78614R
MB282814 DEFLECTOR, SUNROOF FR CORNER, RH |
MB282814 |
US $53.28 |
||
|
78623
|
78623
MB700190 HEADLINING, SUNROOF LID |
MB700190 |
US $96.20 |
||
|
78623
|
78623
MB700191 HEADLINING, SUNROOF LID |
MB700191 |
US $96.20 |
||
|
78626
|
78626
MB107066 HOLDER, RR SHELF ROD |
MB107066 |
US $4.74 |
||
|
78632
|
78632
MB177873 MOTOR, SUNROOF DRIVE |
MB177873 |
US $742.56 |
||
|
78991B
|
78991B
MS610059 TUBE, HOOD LOCKSoft vinyl,4x2000 |
MS610059 |
US $8.14 |
||
|
78994B
|
78994B
MB274696 GASKET, ROOF LID |
MB274696 |
US $6.51 |
||
|
78994C
|
78994C
MB177881 GASKET, ROOF LID |
MB177881 |
US $13.02 |
||
|
78994D
|
78994D
MB274695 GASKET, ROOF LID |
MB274695 |
US $6.51 |
||
|
78994E
|
78994E
MB132605 GASKET, ROOF LID650 |
MB132605 |
US $43.66 |
||
|
78994F
|
78994F
MB274777 GASKET, ROOF LID |
MB274777 |
US $14.50 |
||
|
78994G
|
78994G
MB132607 GASKET, ROOF LID230 |
MB132607 |
US $9.32 |
||
|
78994H
|
78994H
MB132606 GASKET, ROOF LID380 |
MB132606 |
US $9.18 |
||
|
78994J
|
78994J
MB132601 GASKET, BODY LOOSE PANEL |
MB132601 |
US $3.70 |
||
|
78994K
|
78994K
MB132601 GASKET, BODY LOOSE PANEL |
MB132601 |
US $3.70 |
||
|
78995B
|
78995B
MS350067 SCREW, ROOF LIDWasher assembled,4x14 |
MS350067 |
US $3.70 |
||
|
78995C
|
78995C
MF200159 SCREW, ROOF LIDMachine,4x16 |
MF200159 |
US $2.81 |
||
|
78995D
|
78995D
MF200949 SCREW, ROOF LIDMachine,5x14 |
MF200949 |
US $2.22 |
||
|
78995E
|
78995E
MF205658 SCREW, ROOF LIDMachine cone point,5x25 |
MF205658 |
US $3.97 |
||
|
78995F
|
78995F
MF205658 SCREW, ROOF LIDMachine cone point,5x25 |
MF205658 |
US $3.97 |
||
|
78995G
|
78995G
MF200924 SCREW, GUARD BARMachine,4x10 |
MF200924 |
US $2.07 |
||
|
78996B
|
78996B
MS440522 NUT, FUEL TANKWasher assembled,6 |
MS440522 |
from US $0.96 |
||
|
78996C
|
78996C
MS440522 NUT, FUEL TANKWasher assembled,6 |
MS440522 |
from US $0.96 |
||
|
78999B
|
78999B
MS240028 BOLT, CRUISE CONTROL EQUIPWasher assembled,6x12 |
MS240028 |
US $3.28 |
||
|
80611
|
80611
MB282440 BRACKET, ROOM LAMP |
MB282440 |
US $20.72 |
||
|
42 610
|
Loose panel
42 610
|
||||
