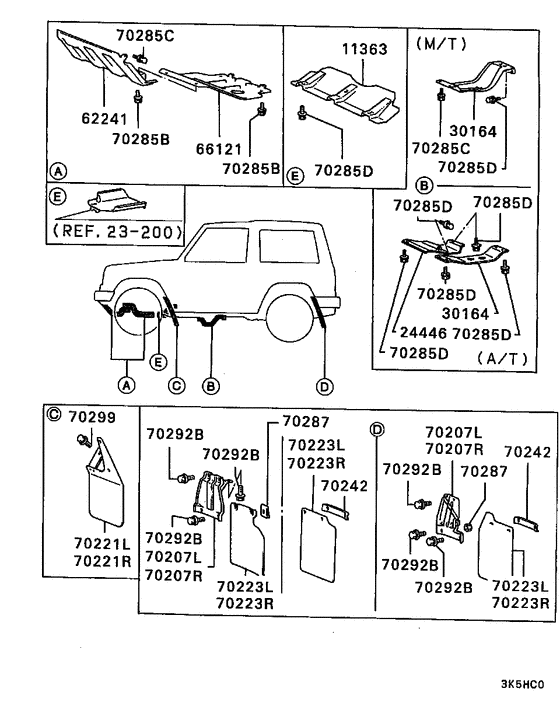

Mud guard,shield & stone guard Diagram Mitsubishi PAJERO/MONTERO
- Year
- 1988 - 1990
- Sales region
- MMNA
- Note
- HIGH LINE,TRUCK,5FM/T FED
- transmission
- 5FM/T
- grade
- HIGH LINE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11363
|
11363
MB485941
PLATE, AIR GUIDE
|
MB485941 |
— | ||
|
30164
|
30164
MB635161
PROTECTOR, T/F CASE
|
MB635161 |
— | ||
|
62241
|
62241
MB485780 PLATE, UNDER SKID |
MB485780 |
US $219.04 |
||
|
66121
|
66121
MB485944 COVER, ENG ROOM UNDER... |
MB485944 |
US $190.92 |
||
|
70207L
|
70207L
MB198295
BRACKET, RR MUD GUARD, LH
|
MB198295 |
— | ||
|
70207R
|
70207R
MB198296
BRACKET, RR MUD GUARD, RH
|
MB198296 |
— | ||
|
70221L
|
70221L
MB198225
MUD GUARD, FR LH
|
MB198225 |
— | ||
|
70221R
|
70221R
MB198226 MUD GUARD, FR RH |
MB198226 |
US $83.45 |
||
|
70223L
|
70223L
MB383531
MUD GUARD, RR LH
|
MB383531 |
— | ||
|
70223R
|
70223R
MB383532
MUD GUARD, RR RH
|
MB383532 |
— | ||
|
70285B
|
70285B
MF243651 BOLT, ENG RR MOUNTINGWasher assembled,8x20 |
MF243651 |
from US $0.92 |
||
|
70285C
|
70285C
MF243678
BOLT, ENG SUPPORT ROD
|
MF243678 |
— | ||
| replacement | |||||
|
70285C
|
70285C
MF244878 BOLT, CYLINDER HEADWasher assembled,10x20 |
MF244878 |
from US $1.50 |
||
|
70285D
|
70285D
MF243649 BOLT, FLYWHEEL HOUSINGWasher assembled,8x16 |
MF243649 |
from US $0.59 |
||
|
70287
|
70287
MS440067 NUT, RR MUD GUARDSpring,6 |
MS440067 |
from US $0.82 |
||
|
70292B
|
70292B
MS240033 BOLT, TAILGATE LOCKINGWasher assembled,6x14 |
MS240033 |
US $2.05 |
||
|
70299
|
70299
MS240033 BOLT, TAILGATE LOCKINGWasher assembled,6x14 |
MS240033 |
US $2.05 |
||
