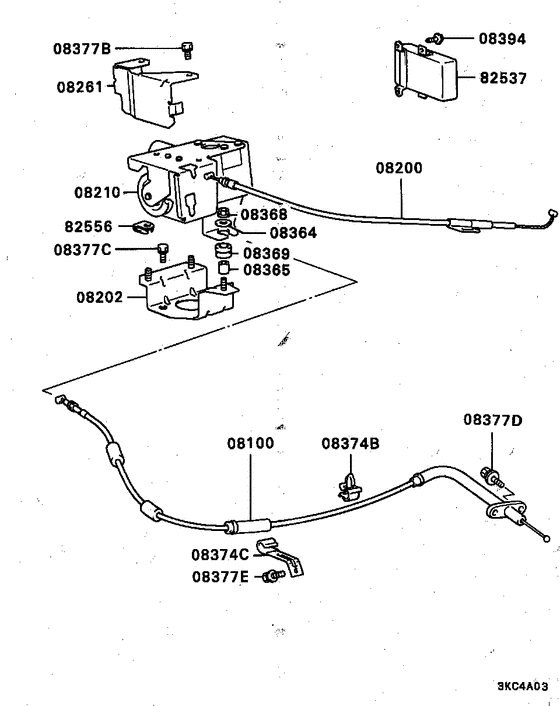

Speed control (ALL) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 1989 - 1990
- Sales region
- Japan
- Note
- JX-W(METAL-TOP WAGON/WIDE FENDER),5FM/T
- transmission
- 5FM/T
- grade
- JX-W
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
08100
|
08100
MB539310 CABLE, ACCEL |
MB539310 |
US $36.26 |
||
|
08364
|
08364
MF450153 WASHER, TIMING POWER TRAIN CASEPlain,6 |
MF450153 |
from US $0.25 |
||
|
08368
|
08368
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
||
|
08377B
|
08377B
MF240022 BOLT, ROCKER COVERWasher assembled,6x10 |
MF240022 |
US $2.05 |
||
|
08377C
|
08377C
MF240049 BOLT, ENG BREATHERWasher assembled,8x12 |
MF240049 |
from US $1.01 |
||
|
08377D
|
08377D
MS240022 BOLT, CRUISE CONTROL EQUIPWasher assembled,6x20 |
MS240022 |
US $2.19 |
||
|
08377E
|
08377E
MF243649 BOLT, FLYWHEEL HOUSINGWasher assembled,8x16 |
MF243649 |
from US $0.59 |
