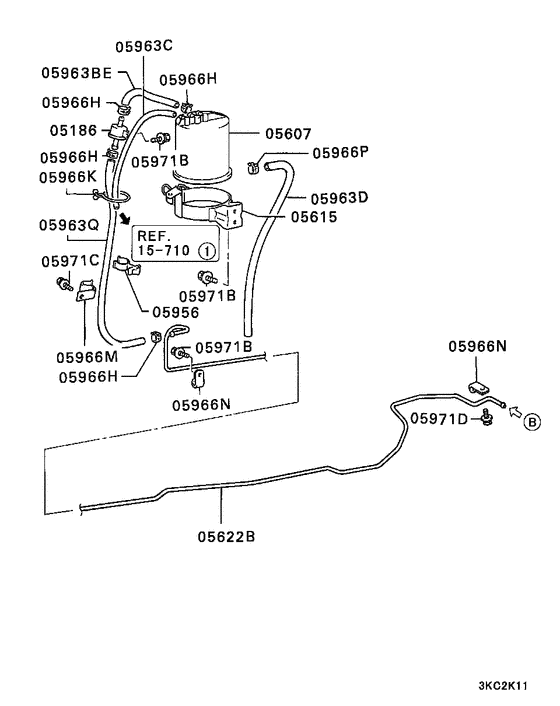

Fuel line & vapor gas control (VAPOR GAS CONTROL) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 1989 - 1990
- Sales region
- Japan
- Note
- SUPER JX-W(MID-ROOF WAGON/WIDE),5FM/T
- transmission
- 5FM/T
- grade
- SUPER JX-W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05186
|
05186
MB504074 VALVE, FUEL TANK VAPOR HOSE 2-WAY |
MB504074 |
US $36.25 |
||
|
05607
|
05607
MB554501 CANISTER, FUEL VAPOR |
MB554501 |
US $168.26 |
||
|
05615
|
05615
MB595467 HOLDER, FUEL VAPOR CANISTER |
MB595467 |
US $28.86 |
||
|
05622B
|
05622B
MB554911 PIPE, FUEL VAPOR |
MB554911 |
US $49.58 |
||
|
05956
|
05956
MS470411 HOLDER, FUEL VAPOR CONTROL LINE |
MS470411 |
US $3.85 |
||
|
05963BE
|
05963BE
MS605158 HOSE, EMISSION SOLENOID VALVE6x2000 |
MS605158 |
from US $13.77 |
||
|
05963C
|
05963C
MS605298 HOSE, FUEL TANK4x2000 |
MS605298 |
US $16.28 |
||
|
05963D
|
05963D
MB595812 HOSE, FUEL VAPOR CONTROL LINE |
MB595812 |
US $17.02 |
||
|
05963Q
|
05963Q
MS605158 HOSE, EMISSION SOLENOID VALVE6x2000 |
MS605158 |
from US $13.77 |
||
|
05966H
|
05966H
MS660169 CLIP, FUEL TANKD=10 |
MS660169 |
from US $0.92 |
||
|
05966K
|
05966K
MS470359 CLIP, ENG OIL FILLER16 |
MS470359 |
US $2.19 |
||
|
05966M
|
05966M
MB554878 CLIP, FUEL VAPOR CONTROL LINE11 |
MB554878 |
US $6.66 |
||
|
05966N
|
05966N
MF477022 CLIP, FUEL FILLER LID LOCKINGD=6 |
MF477022 |
US $1.64 |
||
|
05966P
|
05966P
MS660166 CLIP, ROCKER COVERD=15.5 |
MS660166 |
from US $1.62 |
||
|
05971B
|
05971B
MF243623 BOLT, FLYWHEEL HOUSINGWasher assembled,6x14 |
MF243623 |
US $2.74 |
||
|
05971C
|
05971C
MF240050 BOLT, ROCKER COVERWasher assembled,8x14 |
MF240050 |
from US $1.07 |
||
|
05971D
|
05971D
MF240023 BOLT, FUEL TANKWasher assembled,6x12 |
MF240023 |
from US $0.60 |
||
|
15 710
|
Emission control
15 710
|
||||
|
15 710
|
Emission control
15 710
|
||||
